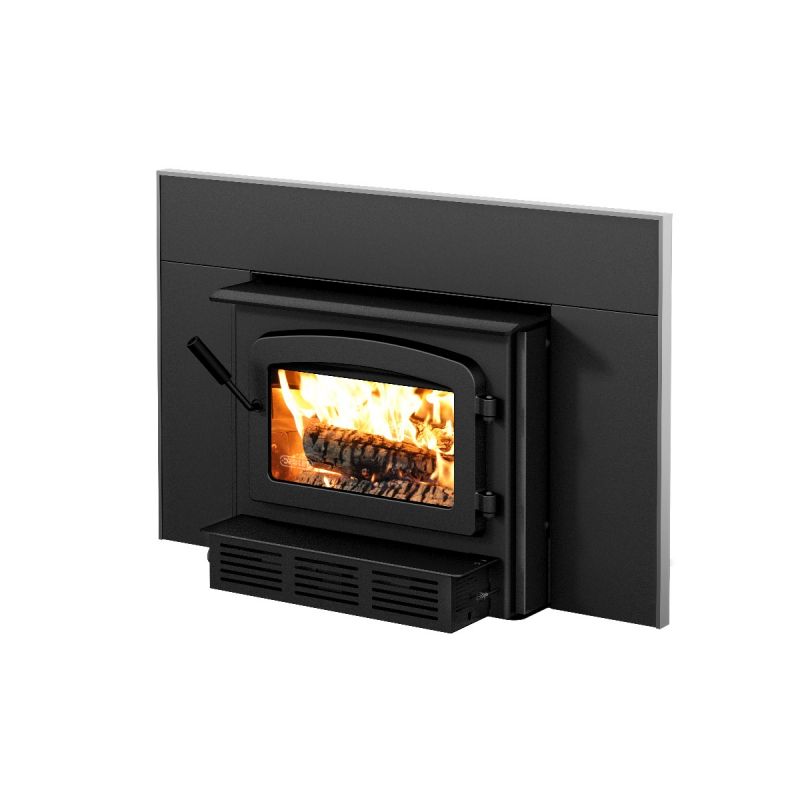

Drolet ESCAPE 1800-I WOOD INSERT TRIO (25 FT) DB03127K
Ideal for heating up to 2,100 ft², the Escape 1800 is the ultimate versatile wood insert! With only 1.54 g/h of particulate emissions, this non-catalytic appliance gives off up to 75,000 BTU/h. The Escape 1800 is the perfect choice to update your masonry fireplace and make it efficient!

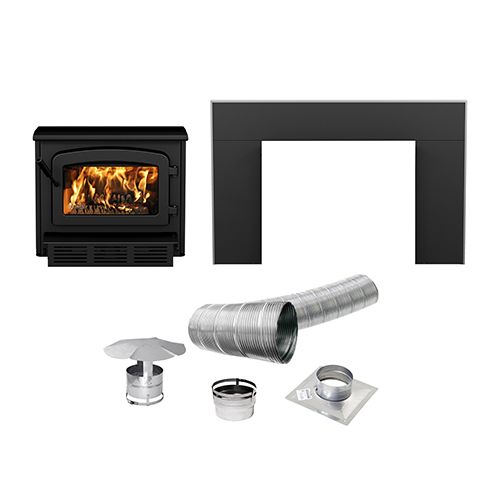

Included: 6'' liner kit (25' Vortex flexible stainless steel liner, connector, 13'' x 13'' top plate, a chimney cap with no screen), 32'' x 50'' faceplate with brushed nickel trim, blower, ceramic glass, ash lip, air damper
- - Burn time up to 8 hours
- - Up to 20'' logs
- - 2.4 ft³ firebox
- - Robust 5/16'' steel
- - EPA certified
- - Proudly made in Canada
- - Limited lifetime warranty
- - Weight: 487 lbs
Options: firescreen, fresh air intake
SPECIFICATIONS:
Fuel type |
Dry cordwood (16" recommended) |
Recommended heating area (9)
|
500 - 2,100 ft² |
Overall firebox volume |
2.4 ft³ |
EPA loading volume |
2.02 ft³ |
Maximum burn time (9)
|
8 h |
Maximum heat output-dry cordwood (4)
|
75,000 BTU/h (22.0 kW) |
Minimum overall heat output rate (4) (5)
|
14,800 BTU/h (4.34 kW) |
Maximum overall heat output rate (4) (5)
|
28,600 BTU/h (8.38 kW) |
Average overall efficiency-dry cordwood (HHV) (5) (6)
|
69 % |
Average overall efficiency-dry cordwood (LHV) (5) (7)
|
74 % |
Optimum efficiency (1) (2)
|
77 % |
Optimum heat transfer efficiency (8)
|
75 % |
Average particulate emission rate (3)
|
1.54 g/h |
Average CO (10)
|
89.4 g/h |
Size |
Large |
Premium quality blower included (CFM) |
144 |
Certified according to applicable standards |
By an accredited laboratory (CAN/USA) |
Combustion technology |
Non-catalytic |
Stainless-steel secondary-air system |
Yes |
Flue outlet diameter |
6" |
Distance-center of the flue outlet to back unit |
6 7/8" |
Distance-center of the flue outlet to side unit |
13 1/2" |
Chimney diameter |
6" |
Type of chimney |
Liner - ULC-S635, CAN/ULC-S640, UL1777 |
Minimum chimney height |
12' |
Overall dimension (Width) |
28 3/8" |
Overall dimension (Height) |
23 1/8" |
Overall dimension (Depth) |
26 3/8" |
Door type |
Single, glass with cast iron frame |
Door opening size (Width) |
17 1/2" |
Door opening size (Height) |
9" |
Glass type |
Ceramic glass |
Glass surface - W x H |
16" x 9 1/4" |
Firebox size (Width) |
21" |
Firebox size (Height) |
11 7/8" |
Firebox size (Depth) |
16 1/2" |
Maximum log length |
20" |
Log positioning |
Loading over width |
Firebox lined with refractory bricks |
Yes |
Baffle type |
High-quality vermiculite |
Minimum fireplace opening (Height) |
23 3/8" |
Minimum fireplace opening (Width) |
28 7/8" |
Minimum fireplace opening (Depth) |
15 3/4" |
High-efficiency certified appliance |
Yes, EPA 2020 approved |
Canadian Standard (emissions) |
CSA B415.1-10 |
USA Standard (emissions) |
EPA / ASTM WK47329 |
Canadian Standard (safety) |
ULC S628 |
USA Standard (safety) |
UL 1482, UL 737 |
Steel thickness-body |
3/16" |
Steel thickness-top |
5/16" |
Warranty |
Limited lifetime |
Shipping weight |
405 lb (178 kg) |
