Buck Stove Model 81 Non-Catalytic Wood Burning Stove with Door
Crafted in a traditional time-honored design, this non-catalytic series features a dual top heat exchanger and an oversized glass door with an air wash system to minimize cleaning. Optional blower systems are available for each unit.

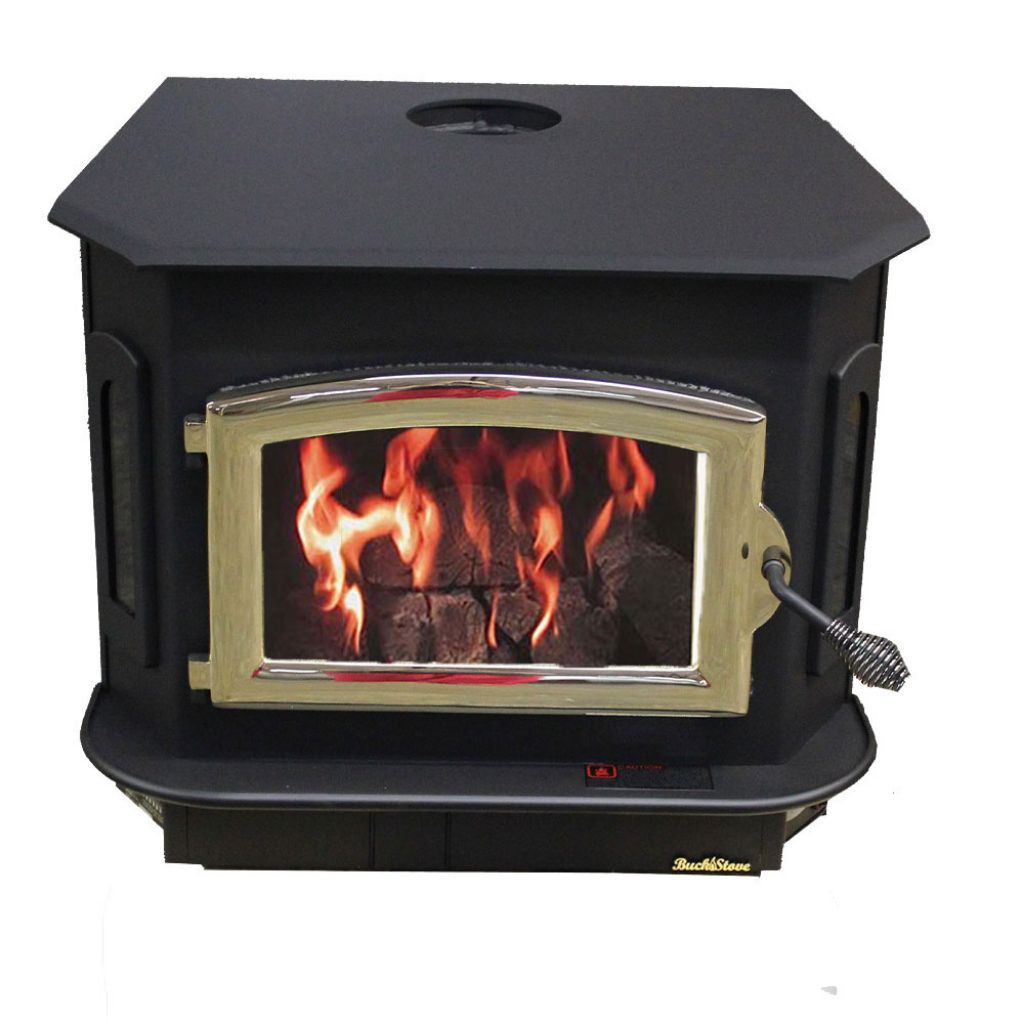

Model 81 Wood Stove

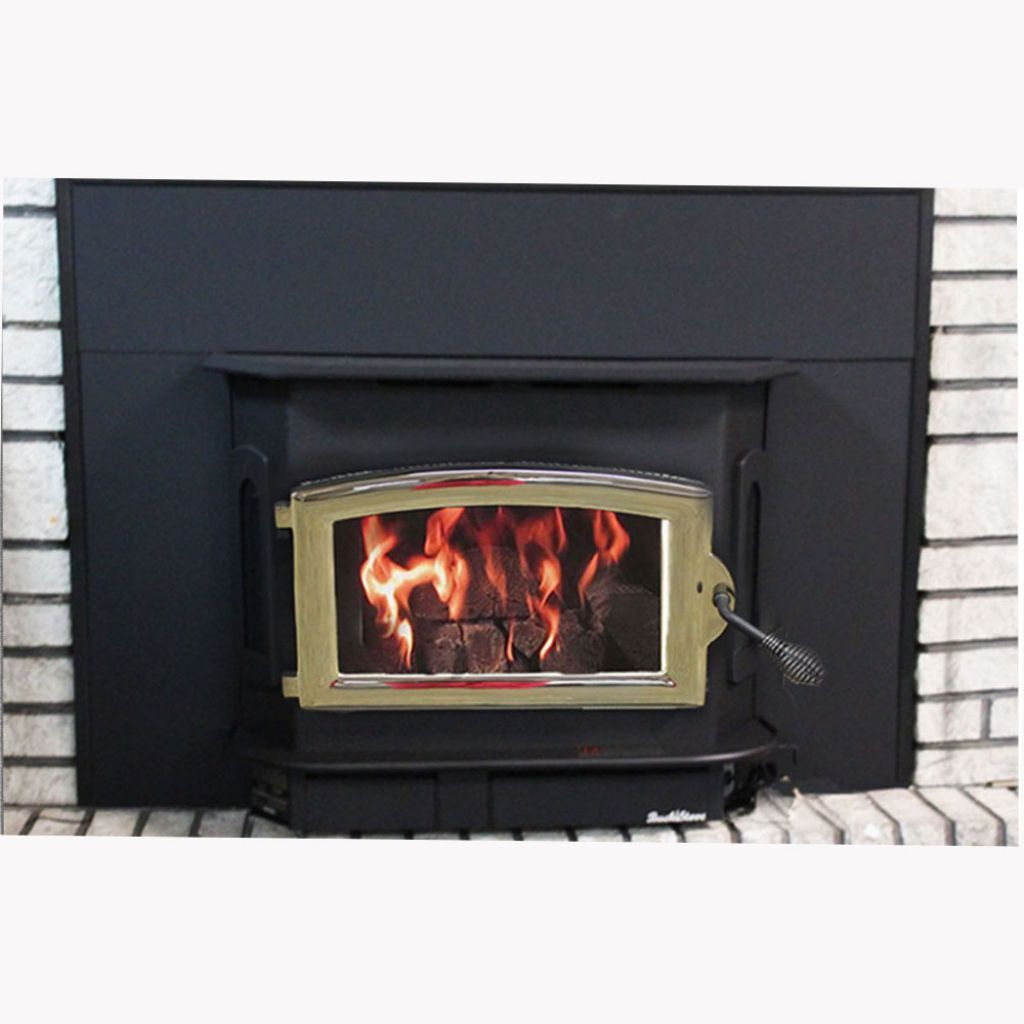

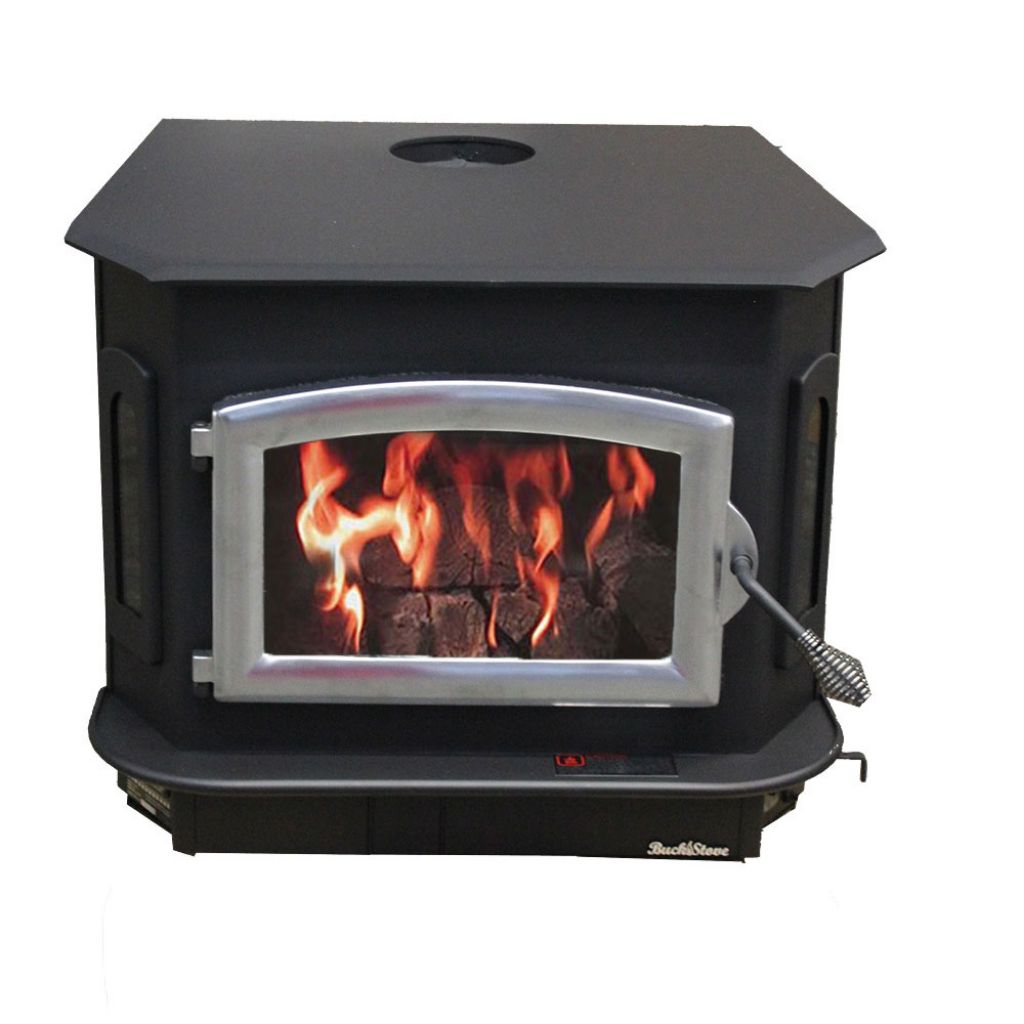

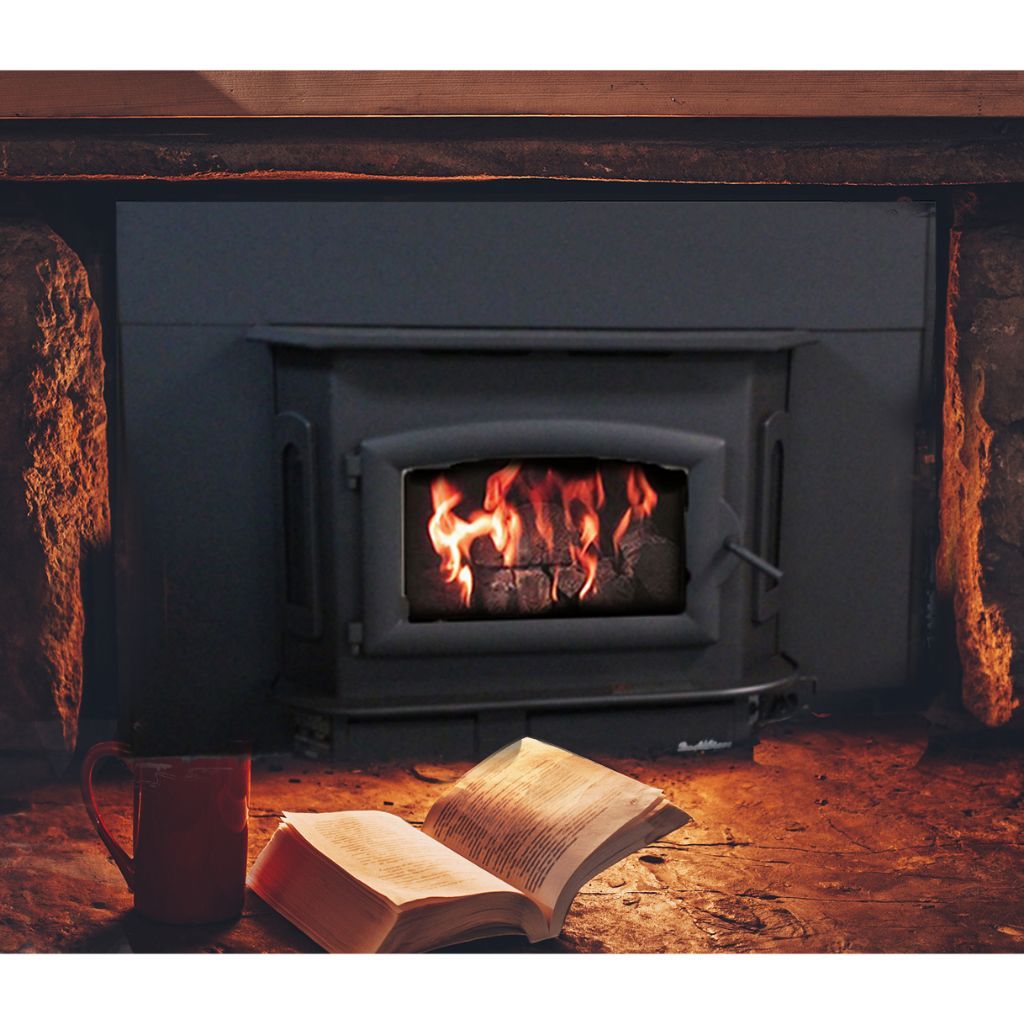

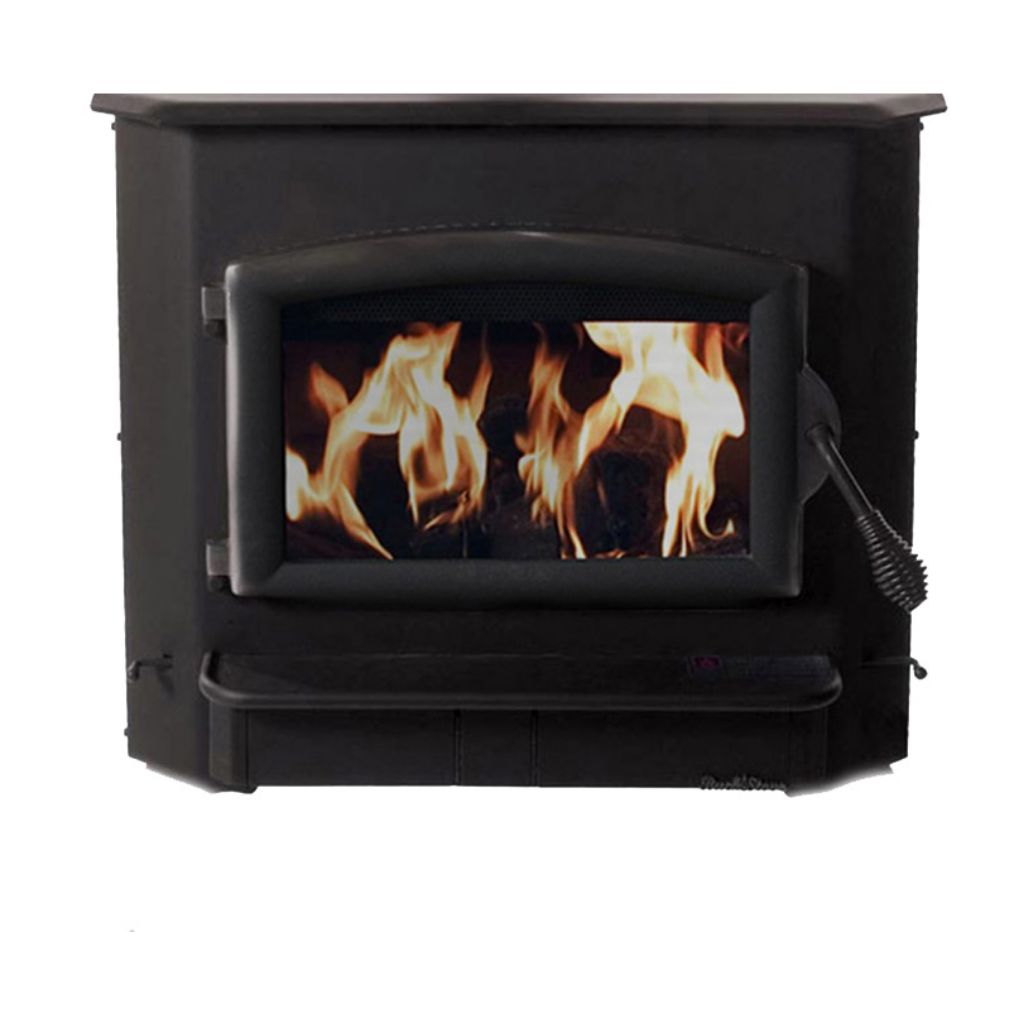

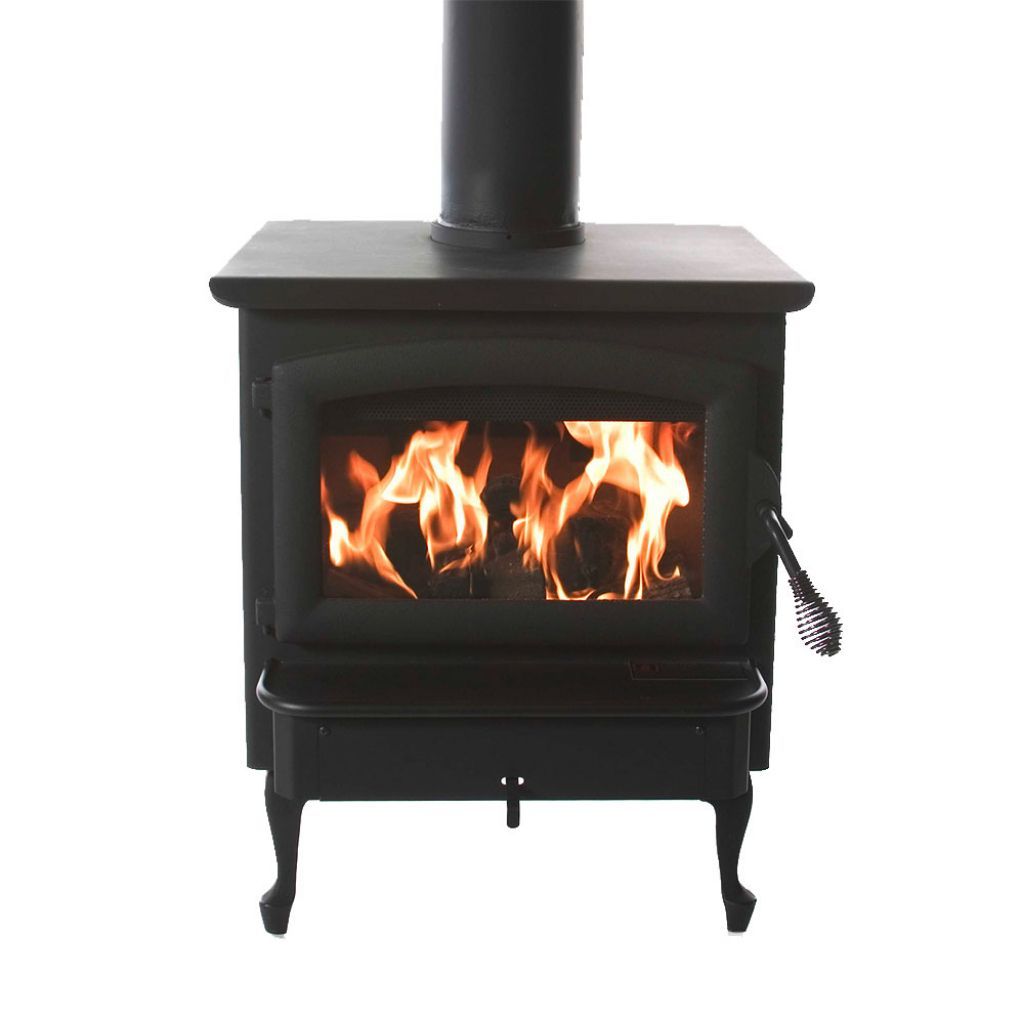

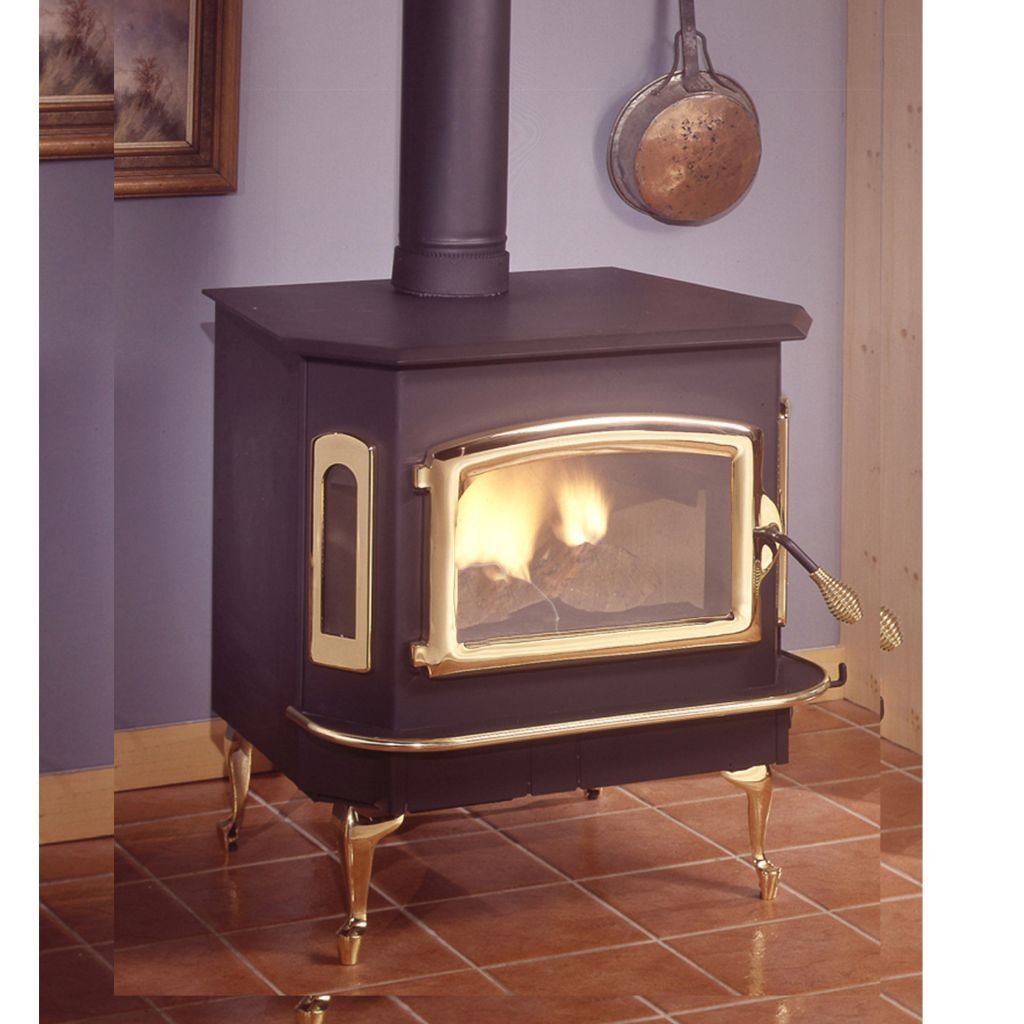

Model 81 provides a rich dramatic focal point for a full view of the essence of a wood-burning stove. It is an outstanding choice for large homes. It is available as a freestanding stove or as an insert for your masonry fireplace with a heating capacity of 1600 to 2700 square feet. Optional black, gold, or pewter legs and door.
Standard features include durable non-catalytic technology, factory installed variable speed blower, ash removal tray and glass door with airwash system.
Cutting edge technology crafts the classic clean lines and modern designs you see in every one of these Buck Stove Model 81 Non-Catalytic Wood Stoves. Buck Stove has a facility in Spruce Pine, North Carolina where it makes every product. This space gives you the classic Buck Stove hearth technology you're searching for but crafted with the latest in design machinery.
Manufacturing quality appliances has been their top priority since day one. Using high quality Pittsburgh steel and sourcing other domestically manufactured materials is important to Buck Stove. These high quality parts make Buck Stoves a reliable source of heat when you need it most. When you own a Buck Stove you own a quality product built with pride by quality craftsmen.
Features:
- Size: 30 Inches
- Color: Black
- EPA tested
- 460 pounds
- Easy clean up
- Non-catalytic design
- 2.4 cubic feet firebox
- Heat circulating blower
- Features a standard ash pan
- Three design options to choose from
- Easy operation and lower maintenance
- Approved for use in prefab and mobile homes
- Accommodates 20" logs front to back or 18" side to side
Technical Specifications
- Maximum BTU Output with Dry Cordwood: 45,400
- Average Overall Efficiency: 69.8%
- Average Particulate Emissions Rate: 1.1 g/h
- Recommended Heating Area: 1600 - 2700 sq. ft
- Maximum Log Size: 20"
*Please Note:This is for the stove only. Pedestal, Optional Trim Kit or Stove Legs are not included and sold Separately.
Product Specification:
Model 81 Wood Stove |
FP 81, FP 81-G, FP 81-P |
Stove Dimensions (Front) |
29" H X 23 3/4" W X 14" D |
Length |
16"(front to back)22" (side to side) |
Firebox Volume |
2.6 Firewood
|
Weight |
460 lbs |
Firewood Length |
20" (front to back) 18" (side to side) |
Minimum Fireplace Dimensions |
23-3/4" H X 29" W X 14" D
|
Flue Size |
6"
|
Efficiency |
69.8% |
Heart Pad Size |
33" W x 48" D** |
Heat Capacity |
1,600 - 2,700 Sq. Feet |
EPA Tested Output BTU/H |
13,800- 59,500 |
Emissions G/H |
1.1 |
Maximum CFM |
185 CFMs (Included Blower) |
Amperage Requirement |
1.3 Amps (Included Blower) |
Blower |
Yes |
Ashpan |
Yes |
Optional Pedestal |
YES (10"H)
|
Pre-Fab Approved |
No
|
Mobile Home Approved |
Yes |
Installation Options |
Freestanding or Fireplace Insert |
Optional Accessories:

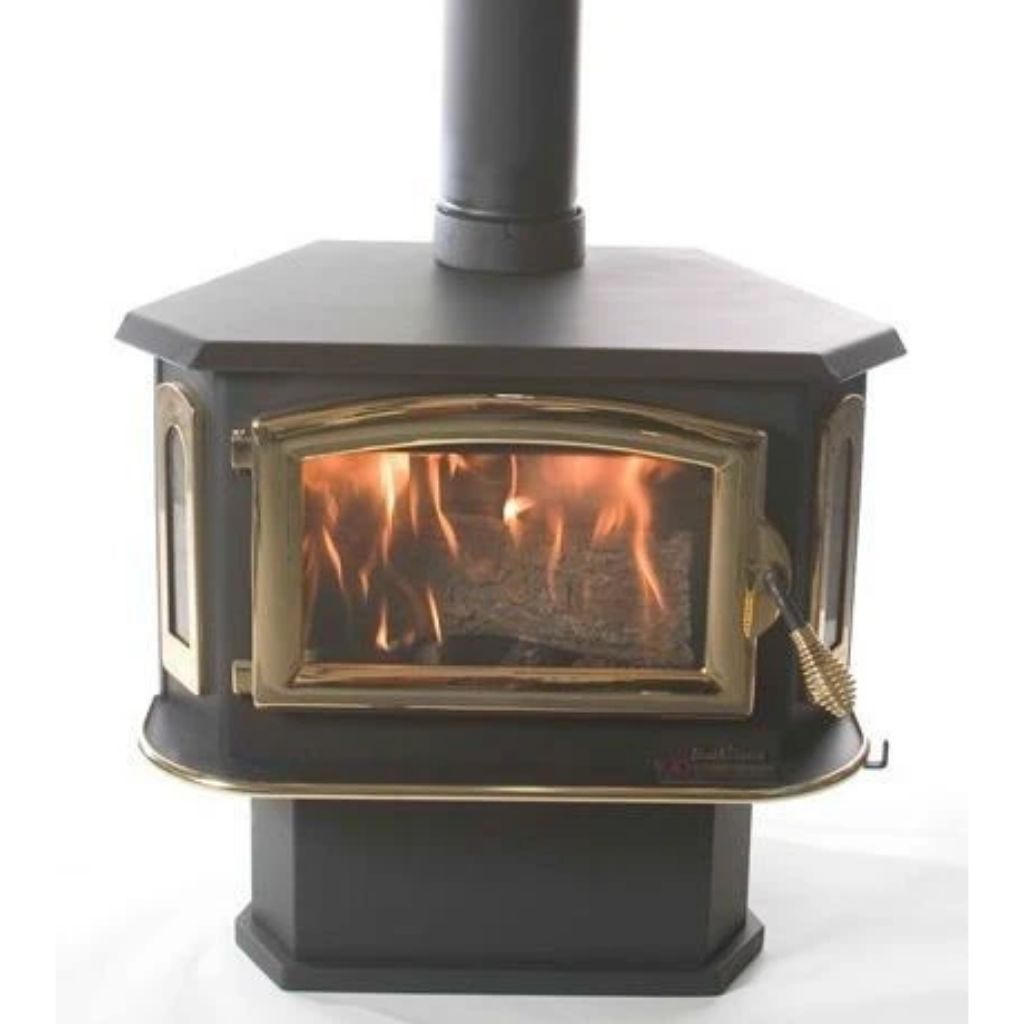

Pedestal
|
Standard Pedestal- FA P81B
- Color: Black
- Flue Shape:
- Material: Steel
- Product Type: Stove Pedestal
- Used to complete a stove in place of traditional legs
- Designed for the Buck Model 81 wood stove
- Sturdy steel construction
|
|

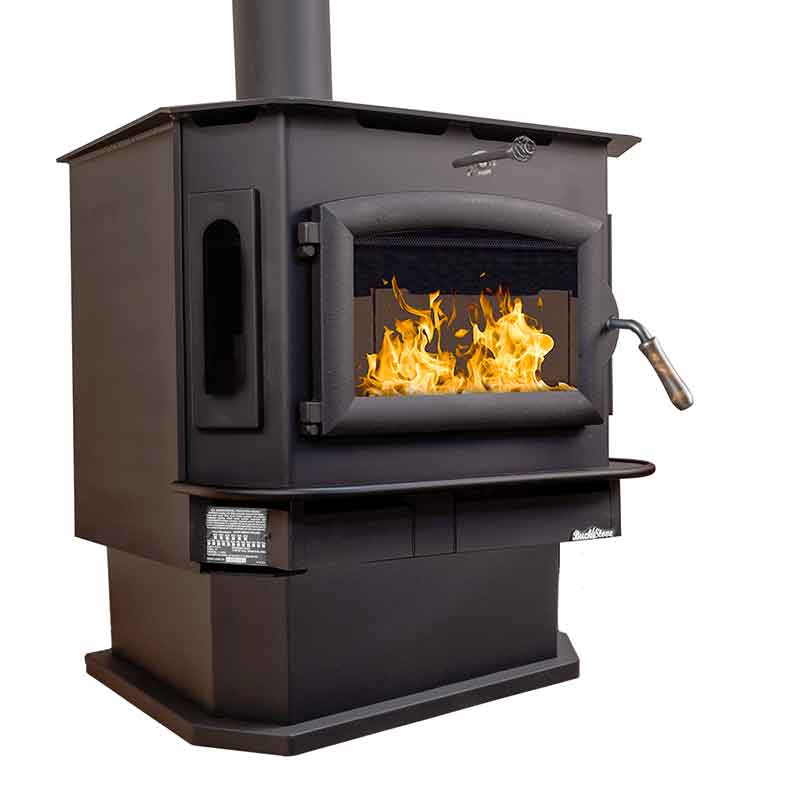

Outside Air Pedestal- FA P81BOA
- Color: Black
- Flue Shape:
- Material: Steel
- Product Type: Stove Pedestal
- Facilitates the feed of combustion air in a free standing application
- Designed for the Buck Model 81 wood stove
- Used in place of the standard stove pedestal
|
Trim Kits
|
Standard Trim Kit- PA FP81
- Color: Black
- Standard trim kit
- Optional accessory
- Designed for use with Model 81 stoves
|
|
Oversize Trim Kit- PA FP8112
- Color: Black
- Oversize trim kit
- Optional accessory
- Designed for use with Model 81 stoves
|
Stove Legs
|

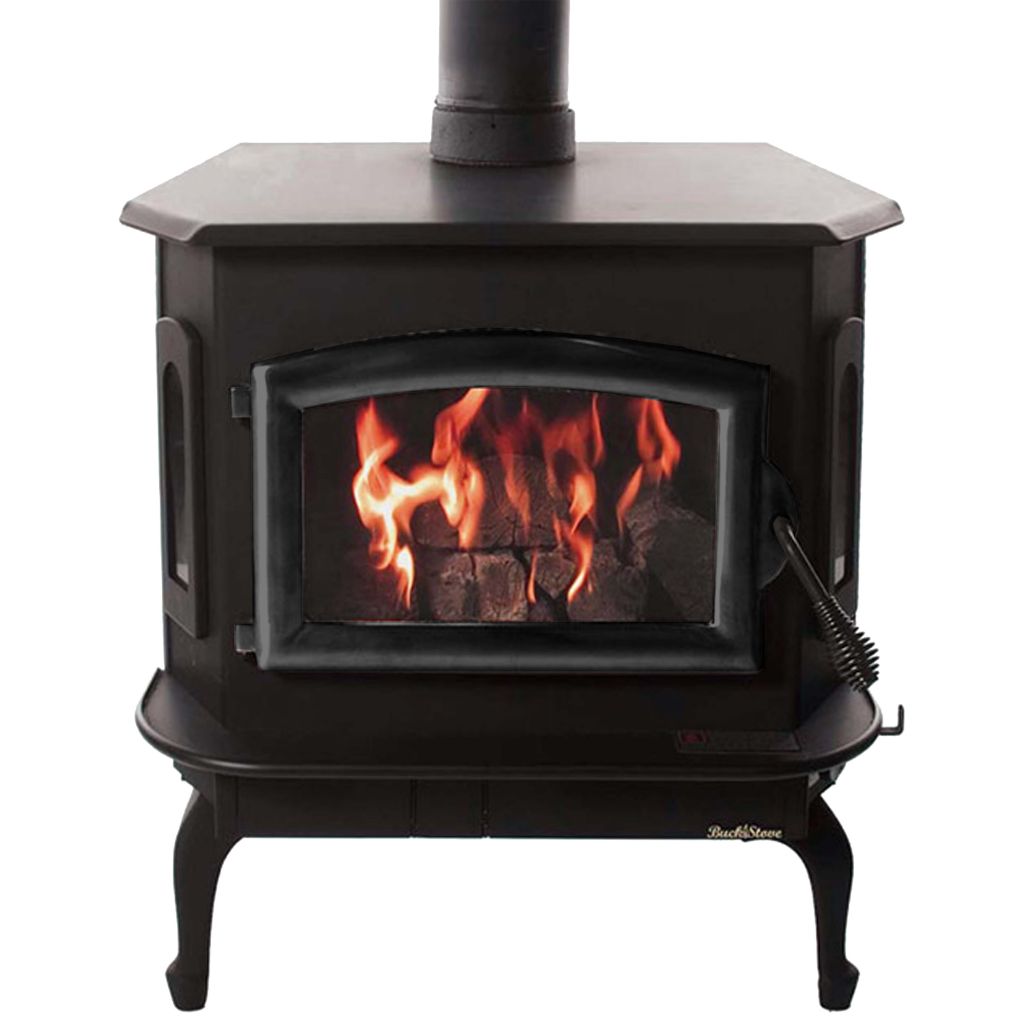

Regular Size Queen Anne Stove Legs - Black- FA FS2191
- Color: Black
- Material: Cast Iron
- Product Type: Stove Legs
- Elegant contoured leg design
- Designed for use with all Buck Stove wood and coal models
- Fits Buck gas Model 384
- Easy installation and can be removed if appliance configuration changes
|
|
Large Size Queen Anne Stove Legs - Black- FA FS9151
- Color: Black
- Material: Cast Iron
- Product Type: Stove Legs
- Elegant contoured leg design
- Designed for use with all Buck Stove wood and coal models (except Model 261)
- Easy installation and can be removed if appliance configuration changes
|
|
Regular Size Queen Anne Stove Legs - Gold- FA FS2191G
- Color: Gold
- Material: Cast Iron
- Product Type: Stove Legs
- Elegant contoured leg design
- Designed for use with all Buck Stove wood and coal models
- Fits Buck gas Model 384
- Easy installation and can be removed if appliance configuration changes
|
|
Large Size Queen Anne Stove Legs - Gold- FA FS9151G
- Color: Gold
- Material: Cast Iron
- Product Type: Stove Legs
- Elegant contoured leg design
- Designed for use with all Buck Stove wood and coal models (except Model 261)
- Easy installation and can be removed if appliance configuration changes
|
|
Regular Size Queen Anne Stove Legs - Pewter- FA FS2191P
- Color: Pewter
- Material: Steel
- Product Type: Bay Window Kit
- Elegant contoured leg design
- Designed for use with all Buck Stove wood and coal models (except Model 261)
- Fits Buck gas Model 384
- Easy installation and can be removed if appliance configuration changes
|
|
Regular Size Queen Anne Stove Legs - Pewter- FA FS9151P
- Color: Pewter
- Material: Steel
- Product Type: Bay Window Kit
- Elegant contoured leg design
- Designed for use with all Buck Stove wood and coal models (except Model 261)
- Easy installation and can be removed if appliance configuration changes
|
Window Kit
|
Large/Small Bay Window Kit - Gold PO 910454G (Large), PO 810104G (Small)
- Color: Gold
- Material: Steel
- Product Type: Bay Window Kit
- Adds a unique look to the stove and changes the standard appearance of the bay window
- Can be easily installed over the factory bay window assembly
|
|
Large/Small Bay Window Kit - Pewter PO 910454P (Large), PO 810104P (Small)
- Color: Pewter
- Material: Steel
- Product Type: Bay Window Kit
- Adds a unique look to the stove and changes the standard appearance of the bay window
- Can be easily installed over the factory bay window assembly
|
