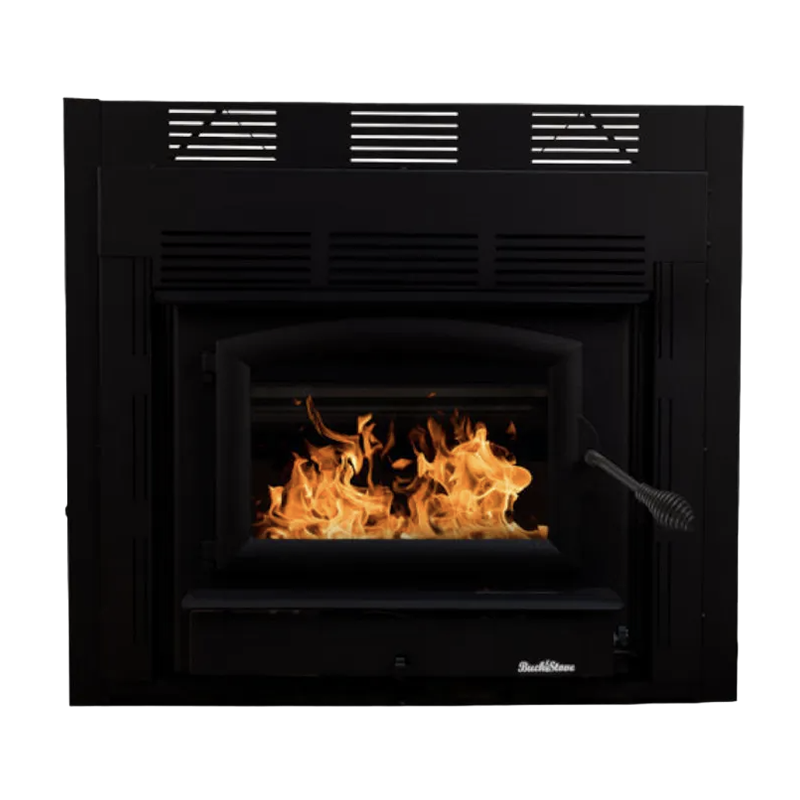

Buck Stove Model 74ZC (ZC74) Zero Clearance Wood Burning Fireplace
The ZC74 is the Model 74 firebox built into a zero-clearance cabinet, so it frames directly into a wall in new construction or a remodel instead of needing an existing masonry fireplace. It carries the Model 74's ratings: 1,500-2,600 square feet, an EPA tested output of 13,300-52,400 BTUs per hour, a 2.15 cubic foot firebox and 73% HHV efficiency, with the blower included.
The door is available in black (FP ZC74), gold (FP ZC74G) or pewter (FP ZC74P).
Built by Buck Stove in Spruce Pine, North Carolina. Buck Stove has made stoves in the USA since 1975.
Specifications
| Model |
FP ZC74 (black door), FP ZC74G (gold door), FP ZC74P (pewter door) |
| Minimum framing dimensions |
37-1/2" W x 34-3/4" H rough opening; cabinet depth 26" (51ZC cabinet manual) |
| Weight |
620 lbs |
| Firebox volume |
2.15 cu ft |
| Firewood length |
16" (front to back), 22" (side to side) |
| Flue size |
6" |
| Efficiency |
73% (HHV) |
| EPA tested output |
13,300-52,400 BTU/h |
| Heat capacity |
1,500-2,600 sq ft |
| Emissions |
1.8 g/h |
| Blower |
Included (85 CFM); requires a 15 A dedicated circuit |
| Ashpan |
No |
| Optional pedestal |
Not applicable (zero-clearance cabinet) |
| Prefab fireplace approved |
No |
| Mobile home approved |
Yes |
| Installation options |
Zero-clearance built-in: framed into the wall with the ZC cabinet |
| Hearth extension |
16" in front of the cabinet, 37-1/2" wide minimum (51ZC cabinet manual) |
Specifications from the Buck Stove 51ZC zero-clearance cabinet manual (January 2024), the Model 74NC owner's manual (October 2022) and the 2023 Buck brochure. Framing and clearance details are in the cabinet manual linked below.
What is included
- ZC74 firebox and zero-clearance cabinet
- Blower (85 CFM)
- Glass door
- Owner's manuals (51ZC cabinet manual, January 2024, and Model 74NC manual, October 2022, linked below)
Optional accessories that fit this model
Sold separately. Each link opens the accessory in the version that fits the Model ZC74.
Questions buyers ask
What is the difference between the 74 and the 74ZC?
Same firebox and the same 1,500-2,600 square foot rating. The 74ZC comes in a zero-clearance cabinet that is framed into a wall and ships with its blower; the Model 74 is a freestanding stove or masonry insert with an optional blower.
What rough opening does it need?
Buck's 51ZC cabinet manual lists a 37-1/2" W x 34-3/4" H rough opening with a 26" deep cabinet, plus a hearth extension of at least 16" in front. Confirm against the cabinet manual before framing.
Does it need its own circuit?
Yes. Buck specifies a 15 A dedicated circuit for the blower.
Buying a Buck Stove from MyBBQDirect
Free freight shipping on this stove: it arrives curbside by freight carrier, and the carrier calls ahead to schedule a drop-off day with you. No sales tax on orders shipped outside New York. 30-day return policy; if anything arrives damaged, send photos within 48 hours and we exchange it. Sizing questions on flue size, clearances, hearth pads or insert fit: call (708) 765-6925 before you order and we will check the numbers with you.
