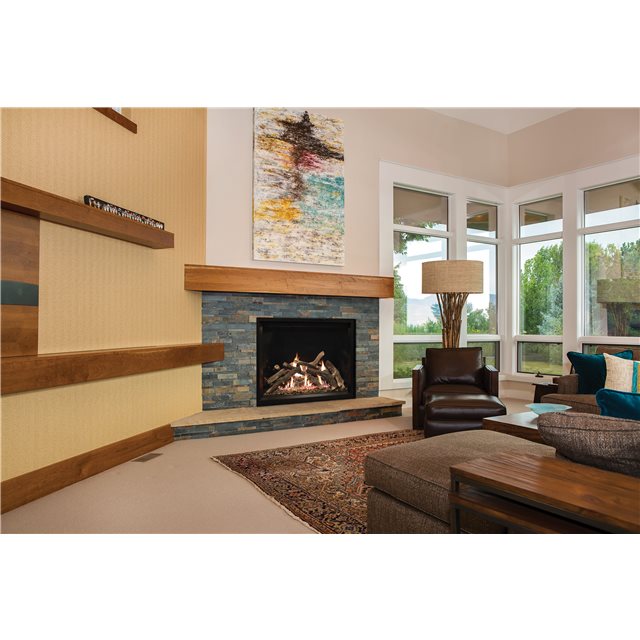

Empire Comfort Systems 36" Rushmore Clean Face Direct Vent Fireplace - DVCT36CBP95N
A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).
Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.
A DV system is often installed along an outside wall to simplify the vent run but can also be installed elsewhere in the home and vented through the roof.
TruFlame
- With its massive log set, deep ember bed, dual burner and huge ceramic glass front, the Rushmore is one great-looking fireplace, but what you can’t see makes this fireplace even more impressive.
- Empire’s TruFlame Technology ensures maximum flames and ember glow with minimum emissions.
The Rushmore
- With its massive log set, deep ember bed, dual burner and huge ceramic glass front, the Rushmore is one great-looking fireplace, but what you can’t see makes this fireplace even more impressive.
- Empire’s TruFlame Technology ensures maximum flames and ember glow with minimum emissions. The system starts with independently controlled front and rear burners set in a large ember bed.
- The burners create a tall lively fire that dances and curls around the hand-painted ceramic fiber logs – generating a continuous tableau of flame shapes and light patterns.
- The Rushmore's TruFlame Technology ensures maximum flames and ember glow with minimum emissions, and is offered in two sizes– 40-inch or 36-inch.
- An attractive clean-face design integrates the barrier screen flush with the fireplace front – allowing you to install tile, brick, or other non-combustible materials right up to the fireplace opening for a clean, organic installation.
- Or choose one of the optional decorative fronts, doors, or frames to tailor your new fireplace with the look that suits your décor.
- A variety of liners are available to further customize the Rushmore– including Old World Stone, Rustic Brick, or reflective Black Porcelain.
- Choose between the two logs sets– Traditional Charred or Driftwood. Add the available hand-forged andirons to complete the look.
-
Ceramic Glass: 31 ¾ x 28 3/8-in,
-
Venting: 5 x 8 Top Vent Only, 12-in min. rise before horizontal
-
Framing: 51 1/2 H x 45 1/2 W x 22 1/2 D
Includes:
- Fireplace Barrier Screen
- Non-Combustible Board
- Multi-Function remote controls the:
- Front and rear burner 6-step variable flame height
- Independent Rear burner on/off (70% turn down)
- Front and rear burner variable flame height
- Accent lighting on/off with 6-step dimming
- Optional Double Blower (if installed) on/off with 6-speed settings
TruFlame Technology
- Catalyst allows large flame, extensive ember bed and clean burn
FEATURES:
- Dimension: 40 3/4" H x 45" W x 22 1/8" D
- 5 x 8 Venting ~ Top Vent Only
- 14-Piece Log Set
- Ceramic Glass: 31-3/4 x 28-3/8
- Manually Variable Valve
- TruFlame Technology
- Multi-Function Variable Flame Height Remote
- Independent Rear Burner (up to 70% turndown)
- Optional Double Blower
- Accent Lighting ~ on/off and 6-stage dimming
- Maximum BTU Output: 40,000
- Min/Max Natural Gas Inlet Pressure: 4.5"/14" WC
- Min/Max Propane Gas Inlet Pressure: 10.8"/14" WC
- Actual Viewing Area: 36 7/8" W x 34 1/2" H
- Valve Type: IPI Valve
