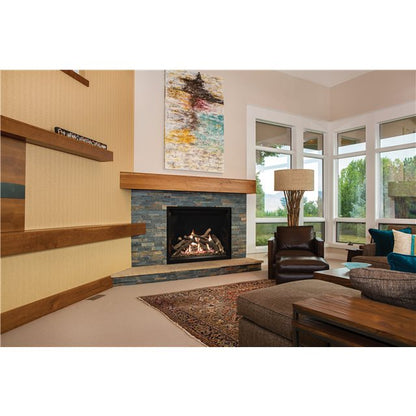

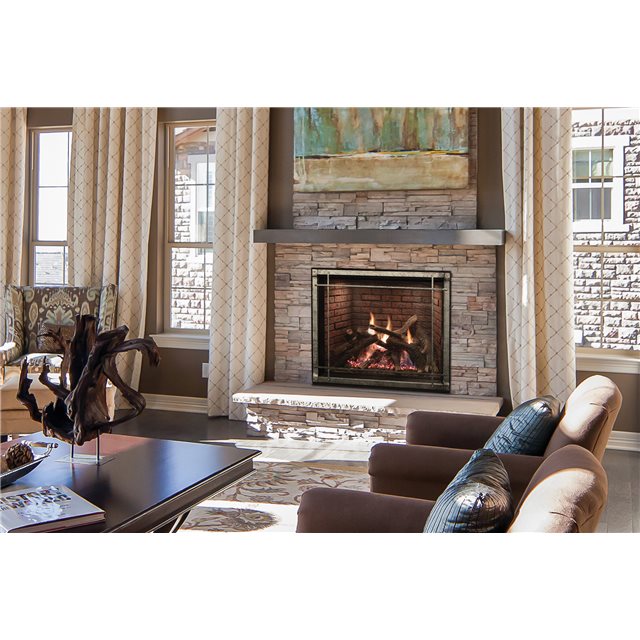

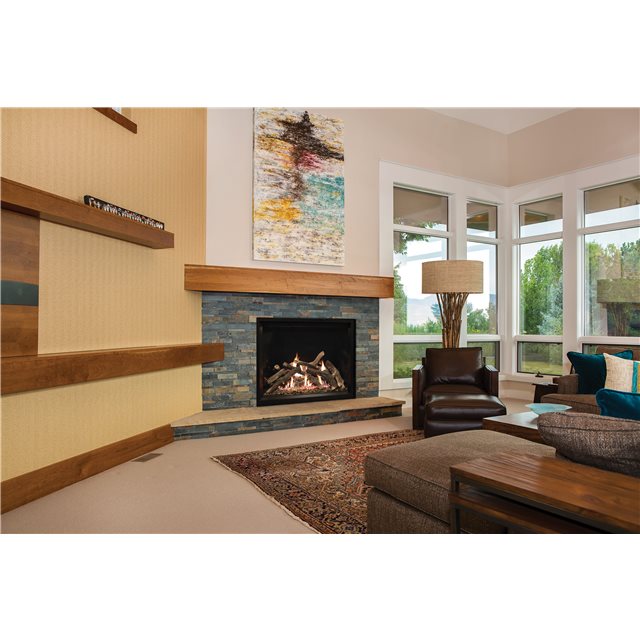

Empire Comfort Systems 40" Rushmore Clean Face Direct Vent Fireplace - DVCT40CBP95N
A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).
Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.
A DV system is often installed along an outside wall to simplify the vent run but can also be installed elsewhere in the home and vented through the roof.
TruFlame
With its massive log set, deep ember bed, dual burner and huge ceramic glass front, the Rushmore is one great-looking fireplace, but what you can’t see makes this fireplace even more impressive. Empire’s TruFlame Technology ensures maximum flames and ember glow with minimum emissions.
The Rushmore
- With its massive log set, deep ember bed, dual burner and huge ceramic glass front, the Rushmore is one great-looking fireplace, but what you can’t see makes this fireplace even more impressive.
- Empire’s TruFlame Technology ensures maximum flames and ember glow with minimum emissions. The system starts with independently controlled front and rear burners set in a large ember bed.
- The burners create a tall lively fire that dances and curls around the hand-painted ceramic fiber logs – generating a continuous tableau of flame shapes and light patterns.
- The Rushmore's TruFlame Technology ensures maximum flames and ember glow with minimum emissions, and is offered in two sizes– 40-inch or 36-inch.
- An attractive clean-face design integrates the barrier screen flush with the fireplace front – allowing you to install tile, brick, or other non-combustible materials right up to the fireplace opening for a clean, organic installation.
- Or choose one of the optional decorative fronts, doors, or frames to tailor your new fireplace with the look that suits your décor.
- A variety of liners are available to further customize the Rushmore– including Old World Stone, Rustic Brick, or reflective Black Porcelain.
- Choose between the two logs sets– Traditional Charred or Driftwood. Add the available hand-forged andirons to complete the look.
-
Ceramic Glass: 36 x 30 3/8 inches,
-
Venting: 5 x 8 Top Vent Only, 12-in min. rise before horizontal
-
Framing: 53 1/2 H x 49 1/2 W x 24 D
Includes:
- Fireplace Barrier Screen
- Non-Combustible Board
- Multi-Function remote controls the:
- Front and rear burner 6-step variable flame height
- Independent Rear burner on/off (70% turn down)
- Front and rear burner variable flame height
- Accent lighting on/off with 6-step dimming
- Optional Double Blower (if installed) on/off with 6-speed settings
TruFlame Technology:
- Catalyst allows large flame, extensive ember bed and clean burn
Requires:
FEATURES:
- Product Dimensions: 49 1/2" W x 53 1/2" H x 24" D
- 40" direct-vent fireplace with TruFlame technology
- Remote controls flame height, lighting, and variable-speed blower
- Maximum BTU Output: 40,000
- Min/Max Natural Gas Inlet Pressure: 4.5"/14" WC
- Min/Max Propane Gas Inlet Pressure: 10.8"/14" WC
- Actual Viewing Area: 40 7/8" W x 36 1/2" H
- Valve Type: IPI Valve
