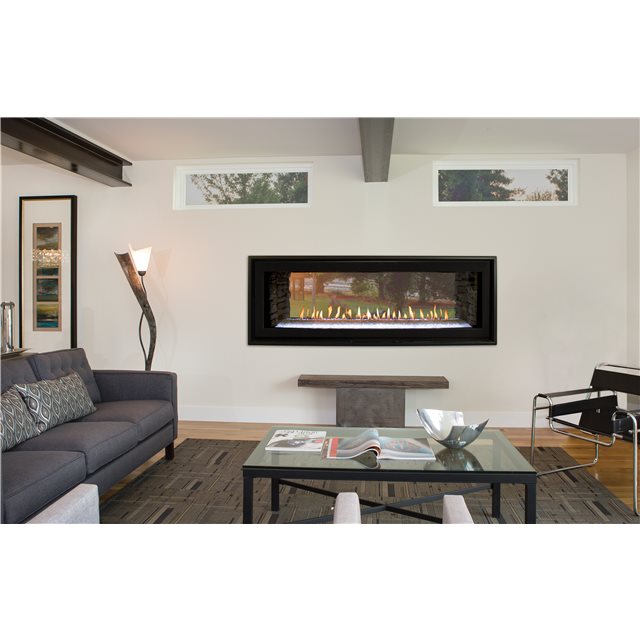

Empire Comfort Systems 48" Boulevard Direct Vent See-Through Linear Gas Fireplace - DVLL48SP90N
A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).
Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.
A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.

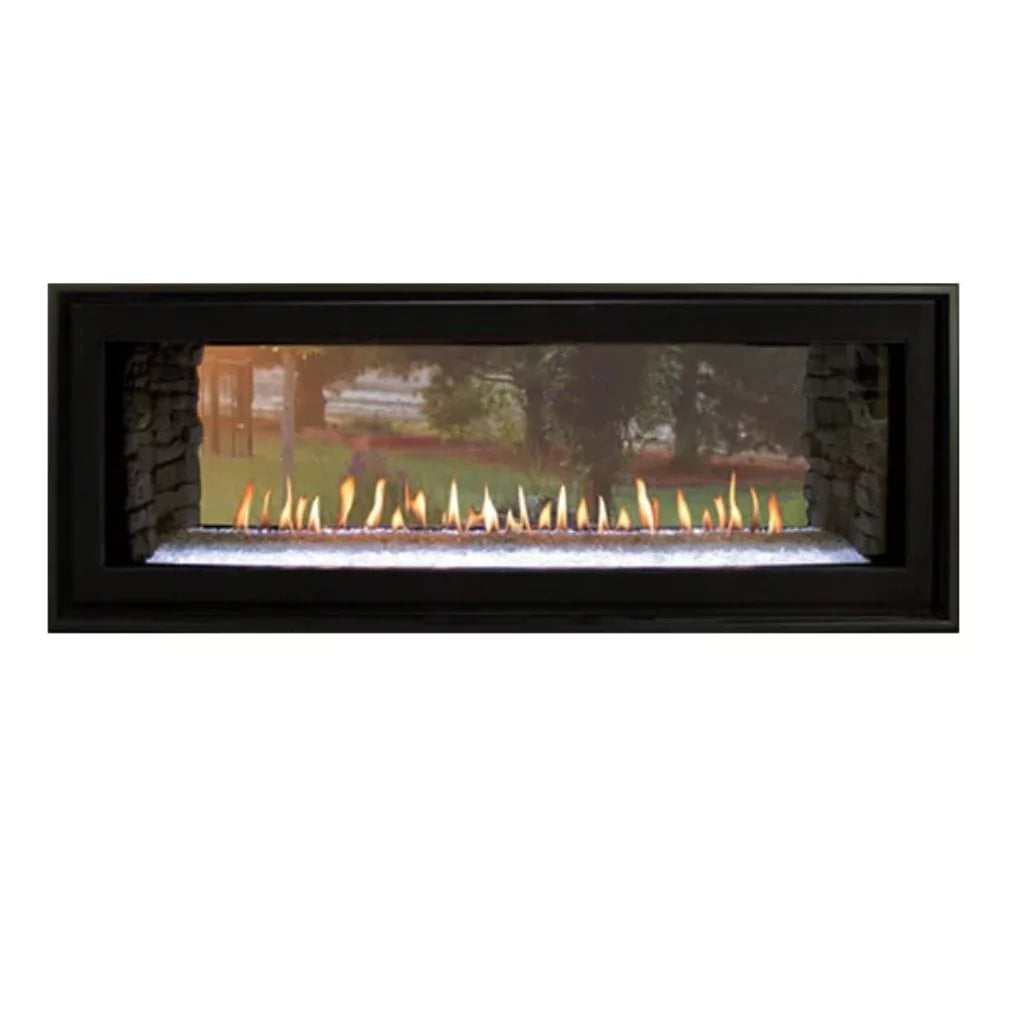

BOULEVARD SEE-THROUGH LINEAR DIRECT-VENT FIREPLACE

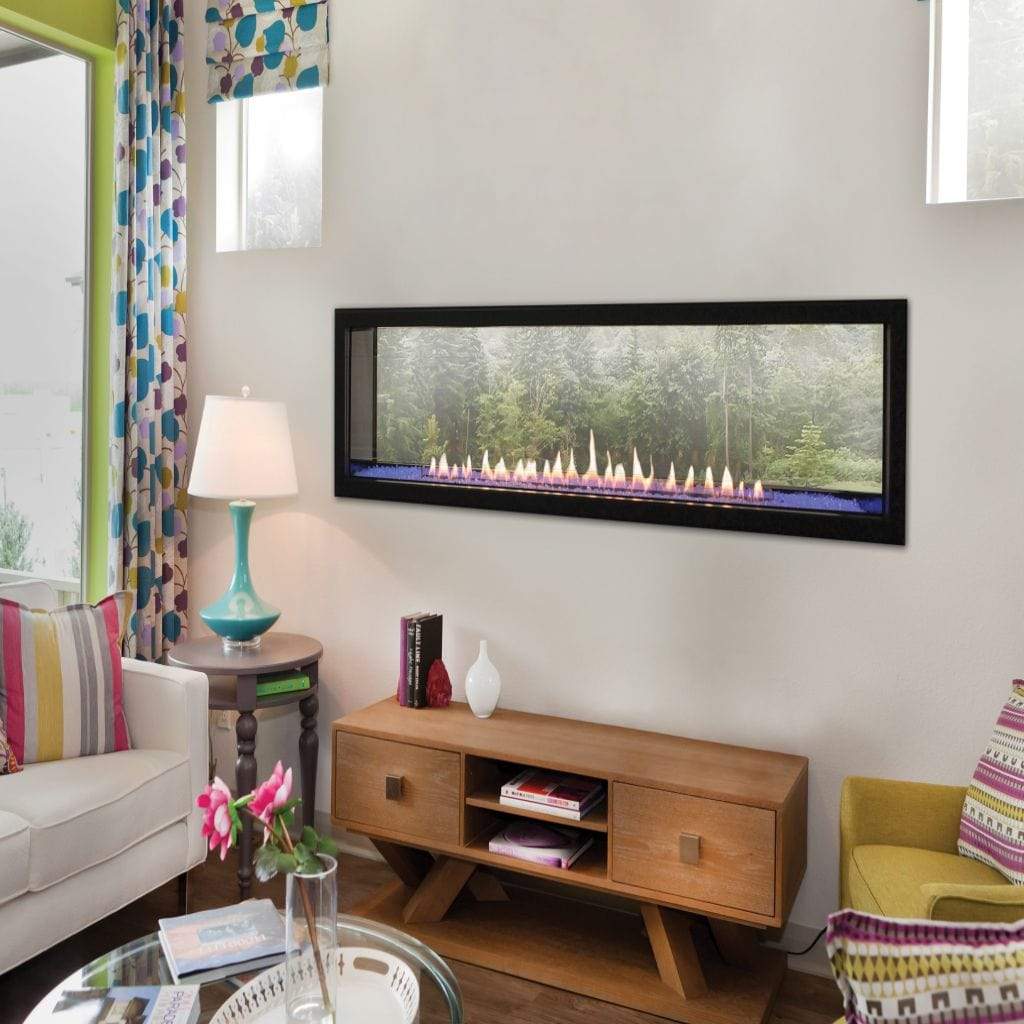

The new Boulevard 48 Direct-Vent See-Through fireplace features a true 48-inch viewing area, fully recessed burner, and white LED underfloor lighting. This system installs in an interior wall to brighten adjoining rooms – or in an exterior wall with the optional stainless steel outdoor kit for a beautiful view, indoors and out. Customize the look with liners, logs, fronts, and decorative glass.
- Ceramic Glass: 13 x 48
- Venting: 5 x 8 Top Vent Only//Requires 12-inch min. vent rise
- Framing 51-3/4 H x 68 W x 19-1/2 D (indoor wall)
- Framing 51-3/4 H x 68 W x 21-1/4 D (outdoor wall)
ADVANTAGES:
- Good efficiency – 60 to 80%
- Good heat output with thermal transfer through the glass and air circulation
- Separates room air from the combustion air
- May be used as a primary heat source
- Can operate with a remote or thermostat
- Most systems can provide live-saving heat during a winter power outage
FEATURES:
- Includes Multi-Function Remote
- Barrier Screen
- Requires Purchase of Liner
- Ceramic Glass
- Requires + 24-lbs of media, sold separately
- Interior or Interior/Exterior Application
- Direct Vent Multi-Function Remote Control with Variable Thermostat Remote Control
- 13 x 48 Viewing on both sides, 5x8 Venting (top only)
Includes:
- Multi-Function Remote to control burner and white LED accent lighting
- Ceramic Glass
- Barrier Screen
- Noncombustible Board for top (x2)
Requires:
- Liner
- Decorative Crushed Glass (8 sq.ft. required, additional decorative media may be added as accent)
Conventional See-Through:
- on an interior wall. Requires finishing to the fireplace opening on both sides with plaster/tile/stone/brick - with or without decorative frames.

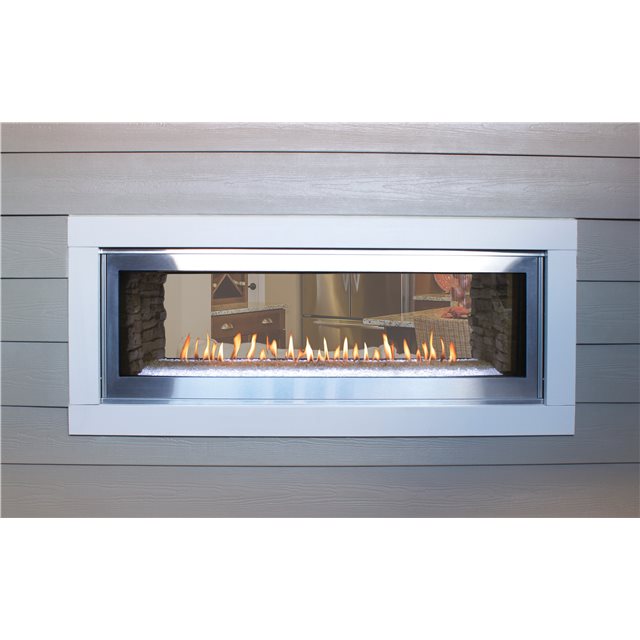

Indoor/Outdoor See-Through:
- on an exterior wall. Requires finishing to the fireplace opening on
- the interior side with plaster/tile/stone/brick - with or without a decorative frame.
- Exterior wall requires special framing and the Exterior Decorative Front (DFED489SS)
