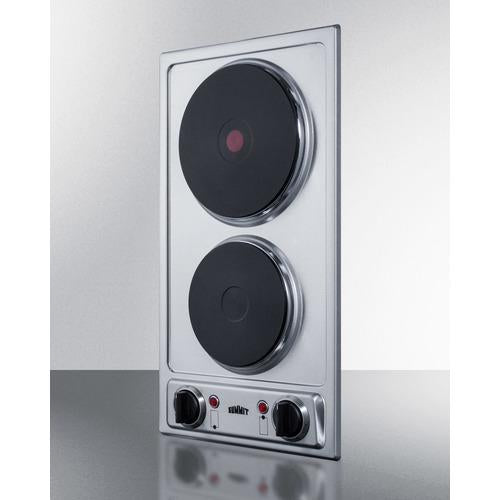

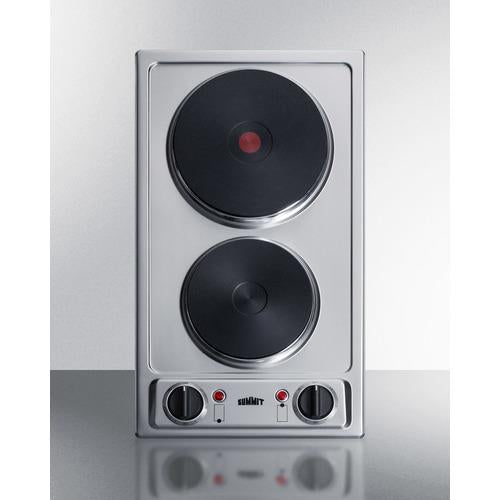

Summit 12" Wide 230V 2-Burner Solid Disk Cooktop - CSD2B230
Summit's selection of electric cooktops offers the perfect fit for every application. Sized at 12" wide, the CSD2B230 is a 230V cooktop with two solid disk elements. The surface comes in brushed stainless steel for an attractive look built to last.
The rear 2000W burner is sized with an 8" diameter to fit large cookware, while the front 1000W 6" element accommodates most general heating needs. The solid disk elements are constructed from cast iron, ensuring extreme durability.
These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results. This unit includes upfront push-to-turn knobs and an "on" indicator light for each burner for added safety.
With its modern style and durable design, the CSD2B230 is a great choice for hotels, mobile homes, tiny houses, and other small kitchens with specific cooking needs. This is a 230V cooktop that requires professional installation. For a 4-burner version, see the CSD4B24.
Features
-
Solid disk elements: Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience
-
Durable cast iron design: Solid metal elements hold up to heavy duty use
-
8" element: Rear 2000W burner with wide 8" diameter is ideal for heating larger cooking vessels
-
6" element: Front element offers 1000W of cooking power to accommodate most heating needs
-
Easier cleanup: Fully sealed cast iron elements offer easier cleanup than traditional coil elements
-
Stainless steel finish: Surface is made from stainless steel for an attractive and easy to clean look
-
Push-to-turn controls: Knobs require a small amount of force to help prevent accidents
-
Indicator lights: Operating indicators light up to show which burner is in use
-
Designed for built-in installation: Fits counter cutout sizes that are 10 1/2" W x 19 1/4" D
-
ADA compliant design: Upfront controls and easy-to-operate knobs offer easier accessibility
Specifications
Overview
-
Height of Cabinet: 4.13" (10 cm)
-
Width: 11.25" (29 cm)
-
Depth: 20.0" (51 cm)
-
Cabinet: Stainless Steel
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Amps: 12.5
-
Voltage/Frequency: 230 V AC/60 Hz
-
Weight: 13.0 lbs. (6 kg)
-
Shipping Weight: 16.0 lbs. (7 kg)
-
Parts & Labor Warranty: 1 Year
-
UPC: 761101056333
Electric Cooktop
-
Heating Type: Radiant
-
Surface: Stainless Steel
-
Element Type: Cast Iron
-
Number of Elements: 2
-
Controls: Dial
-
Countertop Cutout Height: 5.0" (13 cm)
-
Countertop Cutout Width: 10.5" (27 cm)
-
Countertop Cutout Depth: 19.25" (49 cm)
-
Power Source: 230V
-
Element #1 Size: 6.0" (15 cm)
-
Element #1 Wattage: 1000.0
-
Element #2 Size: 8.0" (20 cm)
-
Element #2 Wattage: 2000.0
-
Power Cord Included: No
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
