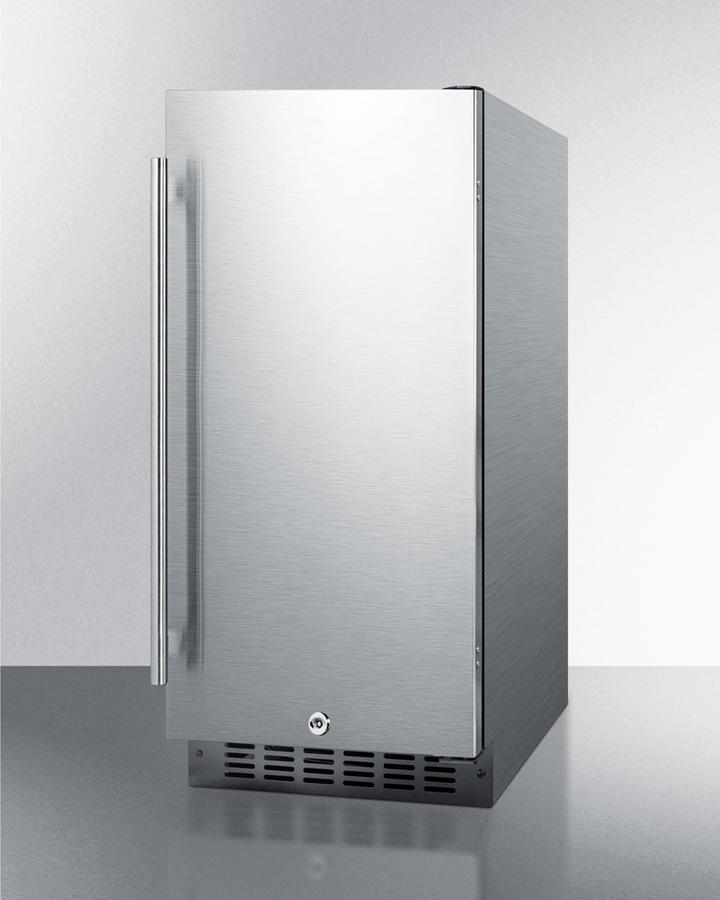

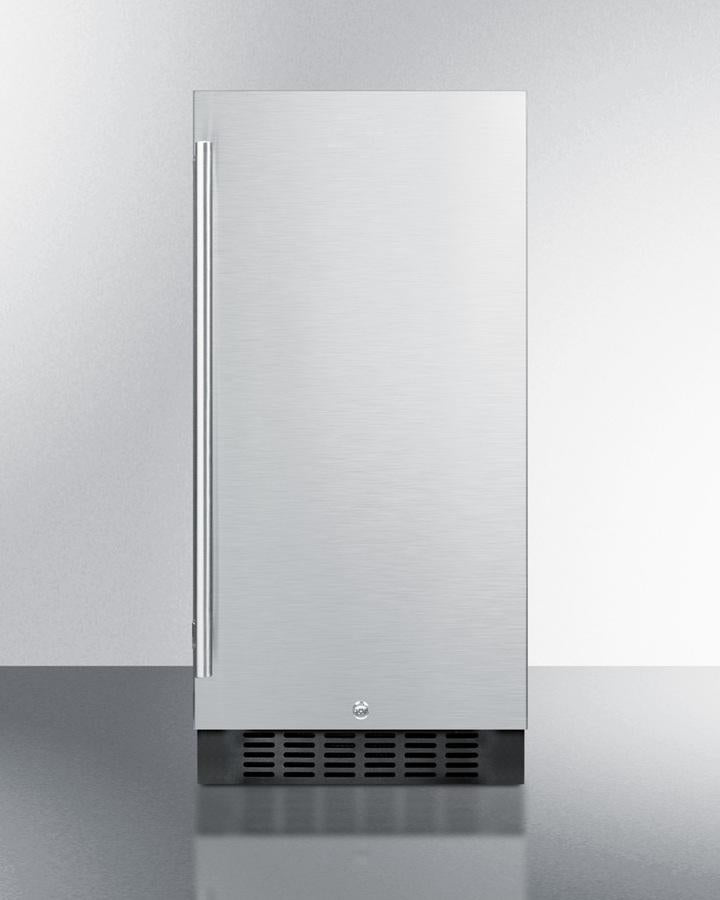

Summit 15" Wide Built-In All-Refrigerator ADA Compliant - ALR15BCSS
Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces.
The ALR15BCSS is a 2.2 cu.ft. all-refrigerator with a front-breathing system for built-in use. It comes in a stainless steel wrapped exterior, with a user-reversible stainless steel wrapped door and pro style handle to match. The front lock offers added safety. This unit has a sealed back for easier cleanup. At just under 32" high, it's perfect for fitting under lower counters following ADA guidelines.

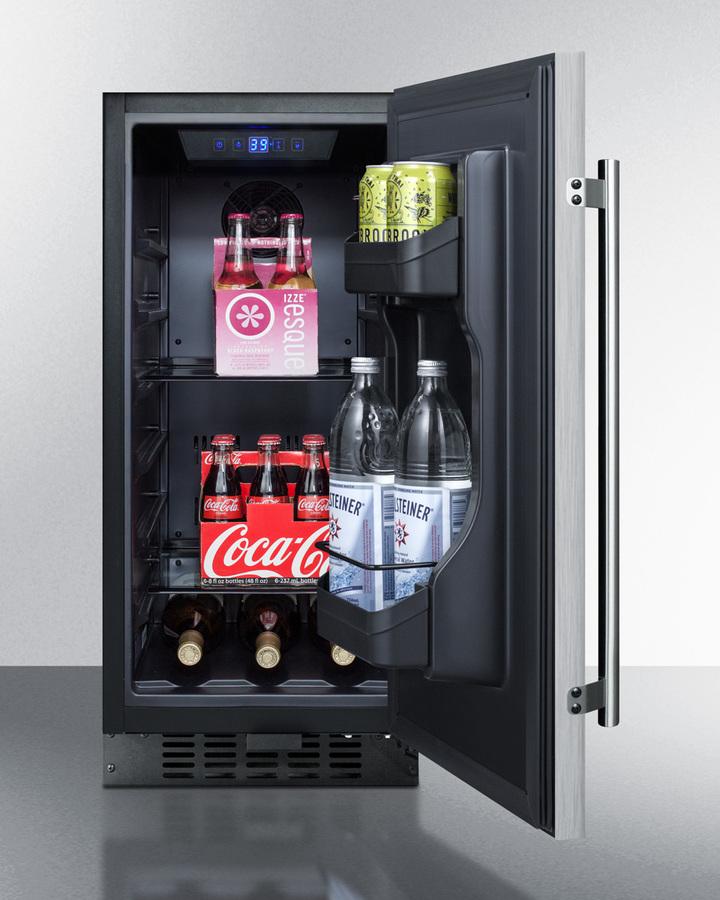

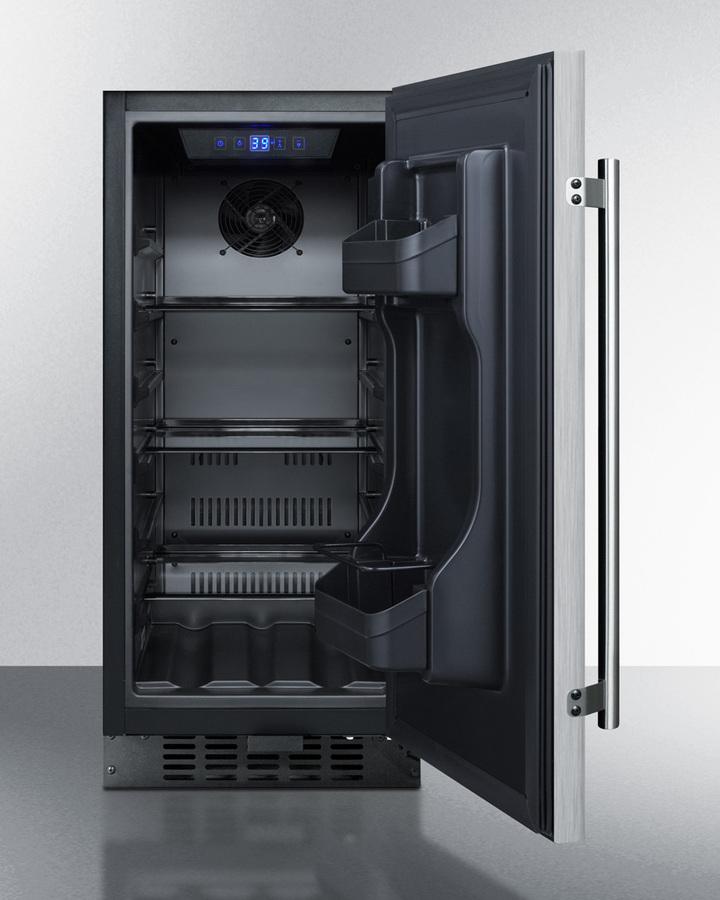

Inside, the ALR15BCSS features a jet black finish and convenient frost-free operation for minimum maintenance. Fan-forced cooling helps to stabilize the temperature inside. Adjustable glass shelves offer spill-proof storage and two door racks are ideal for keeping condiments and bottles within reach.
This unit comes with a digital control panel for easy temperature management, with a temperature readout viewable in Celsius and Fahrenheit. Additional features include an open door and high temperature alarm, temperature memory function, and Sabbath mode to allow users to disable certain electrical functions during periods of observance. Recessed LED lighting offers an attractive, energy efficient view.
The ALR15BCSS is approved for both residential and commercial use, and is ETL-S listed to NSF-7 commercial standards. Additional choices for 15" wide spaces, as well as ADA compliant applications, can be found in Summit's extensive product catalog. Browse our website for more options.
Features
-
ADA Compliant: Sized just under 32" high to fit under lower ADA compliant counters
-
Built-in capable: Make the best use of space by installing your appliance under the counter
-
Complete stainless steel exterior: Door and cabinet feature a wrapped stainless steel exterior for added luxury
-
Factory installed lock: Keyed lock for a secure interior, with two keys included
-
Digital thermostat: Electronic controls for precise temperature management.
-
Digital display: Temperature readout can be shown in Celsius or Fahrenheit
-
LED lighting: Gentle illumination with an on/off switch
-
Frost-free operation: No-frost operation ensures reduced maintenance
-
Adjustable glass shelves: Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
-
Door storage: Two racks offer the perfect storage solution for tall bottles and condiments
-
Reversible door: User-reversible door swing on the refrigerator for added flexibility
-
Professional handle: Stainless steel handle completes the professional look
-
Flush back: Space saving design that is easy to clean
-
Sabbath mode setting: Optional setting lets you disable the lighting and alarm for up to 48 hours
-
Open door alarm: Alarm sounds if the door is left open for more than 60 seconds
-
High temperature alarm: Audible alarm sounds if the interior temperature rises out of set range
-
Right angle cord: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
-
Integrated hinge: Door hinge adds no additional height, making it easier to install under a counter
-
Multiple door finishes available: Can be ordered with a stainless steel wrapped door or with an integrated frame that accepts custom panels
-
Temperature memory function: In the event of power loss, unit will return to its last settings when power is restored
-
Fully finished cabinet: Allows the unit to be used freestanding
-
Commercially approved: ETL-S listed to NSF-7 commercial standards
-
100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
-
CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
-
Height of Cabinet: 31.5" (80 cm)
-
Width: 14.75" (37 cm)
-
Depth: 23.5" (60 cm)
-
Capacity: 2.2 cu.ft. (62 L)
-
Defrost Type: Frost-Free
-
Door: Stainless Steel
-
Cabinet: Stainless Steel
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Sanitation: ETL-S
-
Energy Usage/Year: 240.0kWh/year
-
Amps: 1.0
-
Voltage/Frequency: 115 V AC/60 Hz
-
Weight: 65.0 lbs. (29 kg)
-
Shipping Weight: 70.0 lbs. (32 kg)
-
Parts & Labor Warranty: 1 Year
-
Compressor Warranty: 5 Years
-
UPC: 761101061504
Refrigerator Features
-
Sabbath Mode: Yes
-
Door Swing: RHD
-
Reversible: Yes
-
Shelf Type: Glass
-
Shelf Qty: 3
-
Full Door Shelf Qty: 2
-
Adjustable Shelves: Yes
-
Thermostat Type: Digital
-
Fan Type: Interior and Exterior
-
Refrigerant Type: R600a
-
Refrigerant Amount: 0.78oz.
-
High Side PSI: 270.0
-
Low Side PSI: 105.0
-
Level Legs Qty: 4
-
Interior Light: Yes
-
Temperature Range: 36°F to 43°F
Dimensions
-
Interior Height: 23.0" (58 cm)
-
Interior Width: 10.5" (27 cm)
-
Interior Depth: 17.5" (44 cm)
-
Compressor Step Height: 3.5" (9 cm)
-
Compressor Step Width: 10.5" (27 cm)
-
Compressor Step Depth: 5.0" (13 cm)
Available Upgrades
Exterior
- SSK
- Extra key
-
LHD: Left hand door swing
- Latch for door
-
DL2B: Factory installed NIST calibrated digital data logger (DDL)
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
