Summit 18" 8 lb. Drain-Free Icemaker ADA Compliant - BIM18IFADA
Summit brings convenient luxury under the counter with built-in icemakers uniquely sized for use in ADA compliant settings.
Sized just under 18 inches wide and 32 inches high, the BIM18IFADA is ideal for use under lower counters following ADA compliant guidelines. The door comes with Summit's integrated stainless steel frame designed to accept overlay panels for a custom look that matches or complements other cabinetry. No drain or pump is required for use, offering more flexibility in where you place the unit.

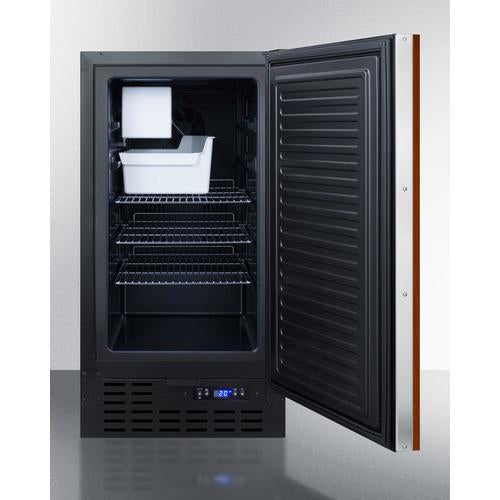

Inside, the BIM18IFADA can produce and hold 8 lbs. of crescent-shaped ice cubes in the removable bucket. Additional chrome shelves allow you to store other frozen items as needed. This unit utilizes frost-free operation to help reduce user maintenance.
With its ideal size and customizable design, the BIM18IFADA is a great solution to keeping a steady supply of ice on hand in smaller ADA compliant kitchen spaces.
Features
-
ADA compliant: Sized just under 32" high for installation under lower ADA compliant counters
-
Integrated door frame: Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.
-
Built-in capable: Make the best use of space by installing your appliance under the counter
-
No pump or drain required: Convenient design allows more flexibility in positioning the unit
-
Ice production: Makes and stores up to 8 lbs. of crescent cubes
-
Removable bin: Bucket can be removed for fast and easy cleaning
-
Digital thermostat: Electronic controls for precise temperature management.
-
Digital display: Temperature readout can be shown in Celsius or Fahrenheit
-
Frost-free operation: Eliminates the need to manually defrost the interior
-
Extra shelves: Adjustable chrome shelves included to accommodate additional items
-
Flush back: Space saving design with easier cleanability
-
Fully finished black cabinet: Allows the unit to be used freestanding
-
100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
Specifications
-
Height of Cabinet: 31.38" (80 cm)
-
Width: 17.75" (45 cm)
-
Depth: 24.0" (61 cm)
-
Depth with Handle: 25.75" (65 cm)
-
Depth with door at 90°: 40.0" (102 cm)
-
Capacity: 2.7 cu.ft. (76 L)
-
Defrost Type: Frost-Free
-
Door: Panel-Ready
-
Cabinet: Black
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Amps :1.1
-
Voltage/Frequency: 115 V AC/60 Hz
-
Weight: 82.0 lbs. (37 kg)
-
Shipping Weight: 85.0 lbs. (39 kg)
-
Parts & Labor Warranty: 1 Year
-
Compressor Warranty: 5 Years
-
UPC: 761101063751
Icemaker
-
Door Swing: RHD
-
Reversible: Factory Reversible
-
Daily Ice Production: 8.0 lbs. (4 kg)
-
Ice Storage Capacity: 8.0 lbs. (4 kg)
-
Ice Shape: Crescent
-
Number of Ice Cube Sizes: 1
-
Interior Light: Yes
-
Fan Type: Interior and Exterior
-
Refrigerant Type: R134a
-
Refrigerant Amount: 3.9 oz.
-
High Side: PSI 270.0
-
Low Side: PSI 103.0
-
Interior Height: 23.5" (60 cm)
-
Interior Width: 12.75" (32 cm)
-
Interior Depth: 16.75" (43 cm)
-
Compressor Step Height: 4.5" (11 cm)
-
Compressor Step Width: 12.75" (32 cm)
-
Compressor Step Depth: 4.5" (11 cm)
-
Level Legs: 4
-
Temperature Range: -22 to 14ºF
Available Upgrades
Exterior
- SSK
- Extra key
-
LHD - Left hand door swing
- Latch for door
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
