Summit 18" 8 lb. Drain-Free Icemaker - BIM18SS
Summit brings convenient luxury under the counter with built-in icemakers uniquely sized for smaller kitchens.

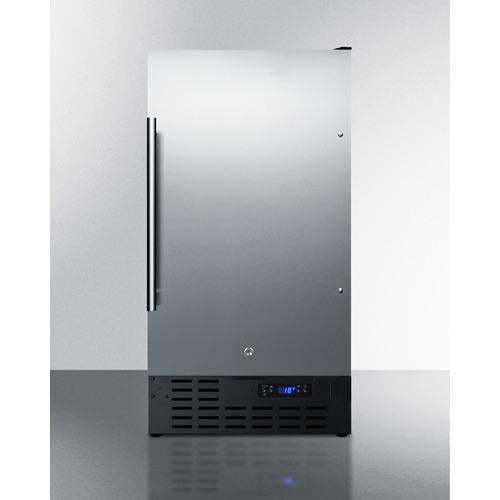

Sized just under 18 inches wide, the BIM18SS features a front-breathing design for built-in installation, with a fully finished cabinet to also allow freestanding use. The 304 grade stainless steel wrapped door is user-reversible to best fit your setting. We include a pro style handle and front-mounted keyed lock for optional security. No drain or pump is required for use, offering more flexibility in where you place the unit.

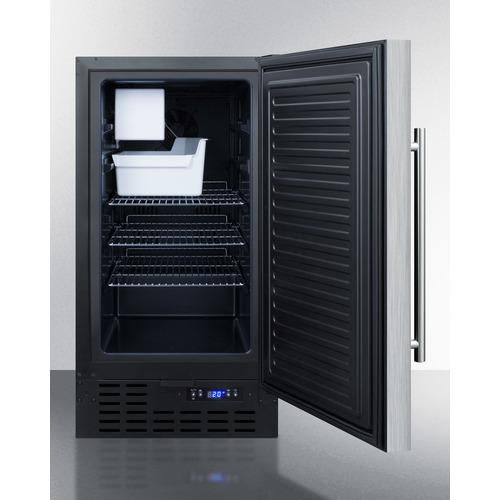

Inside, the BIM18SS can produce and hold 8 lbs. of crescent-shaped ice cubes in the removable bucket. Additional chrome shelves allow you to store other frozen items as needed. This unit utilizes frost-free operation to help reduce user maintenance.
With its ideal size and user-friendly design, the BIM18SS is a great solution to keeping a steady supply of ice on hand in smaller kitchen spaces. For this unit sized for ADA compliant counters, see the BIM18SSADA. Matching 18 inch wide refrigerators, beverage centers are also available.
Features
-
Built-in capable: Make the best use of space by installing your appliance under the counter
-
No pump or drain required: Convenient design allows more flexibility in positioning the unit
-
Ice production: Makes and stores up to 8 lbs. of crescent cubes
-
Stainless steel door: Fully wrapped in stainless steel for a professional look
-
Factory installed lock: Keyed lock for a secure interior (2 keys included)
-
Removable bin: Bucket can be removed for fast and easy cleaning
-
Digital thermostat: Electronic controls for precise temperature management.
-
Digital display: Temperature readout can be shown in Celsius or Fahrenheit
-
Frost-free operation: Eliminates the need to manually defrost the interior
-
Extra shelves: Adjustable chrome shelves included to accommodate additional items
-
Reversible door: User-reversible door swing for added flexibility
-
Professional handle: Stainless steel handle completes the professional look
-
Flush back: Space saving design with easier cleanability
-
Fully finished black cabinet: Allows the unit to be used freestanding
-
100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
Specifications
Overview
-
Height of Cabinet: 34.25" (87 cm)
-
Width: 17.75" (45 cm)
-
Depth: 24.0" (61 cm)
-
Depth with Handle: 25.75" (65 cm)
-
Depth with door at 90°: 40.0" (102 cm)
-
Capacity: 2.7 cu.ft. (76 L)
-
Defrost Type: Frost-Free
-
Door: Stainless Steel
-
Cabinet: Black
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Amps: 1.1
-
Voltage/Frequency: 115 V AC/60 Hz
-
Weight: 82.0 lbs. (37 kg)
-
Shipping Weight: 85.0 lbs. (39 kg)
-
Parts & Labor Warranty: 1 Year
-
Compressor Warranty: 5 Years
-
UPC: 761101063706
Icemaker
-
Door Swing: RHD
-
Reversible: Yes
-
Daily Ice Production: 8.0 lbs. (4 kg)
-
Ice Storage Capacity: 8.0 lbs. (4 kg)
-
Ice Shape: Crescent
-
Number of Ice Cube Sizes: 1
-
Interior Light: Yes
-
Fan Type: Interior and Exterior
-
Refrigerant Type: R134a
-
Refrigerant Amount: 3.9 oz.
-
High Side PSI: 270.0
-
Low Side PSI: 103.0
-
Interior Height: 23.5" (60 cm)
-
Interior Width: 12.75" (32 cm)
-
Interior Depth: 16.75" (43 cm)
-
Compressor Step Height: 4.5" (11 cm)
-
Compressor Step Width: 12.75" (32 cm)
-
Compressor Step Depth: 4.5" (11 cm)
-
Level Legs: 4
-
Temperature Range: -22 to 14ºF
Available Upgrades
Exterior
- SSK
- Extra key
-
LHD - Left hand door swing
- Latch for door
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
