Summit 18" Wide Built-In All-Refrigerator ADA Compliant - FF1843BIFADA
SUMMIT's selection of built-in under-counter refrigeration includes one of the industry's only complete 18" wide lines for use in ADA compliant settings.

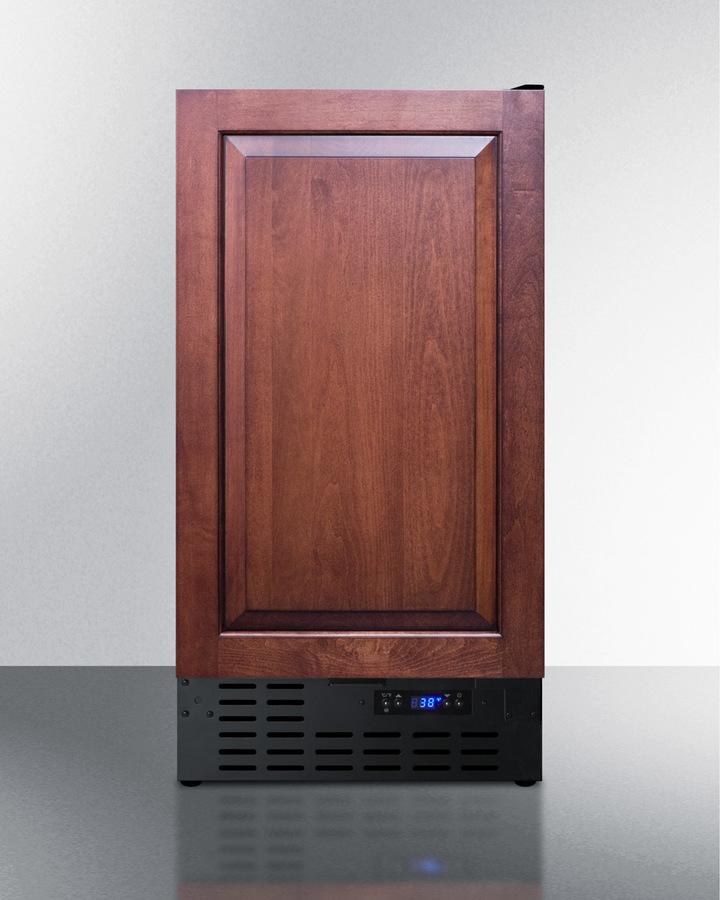

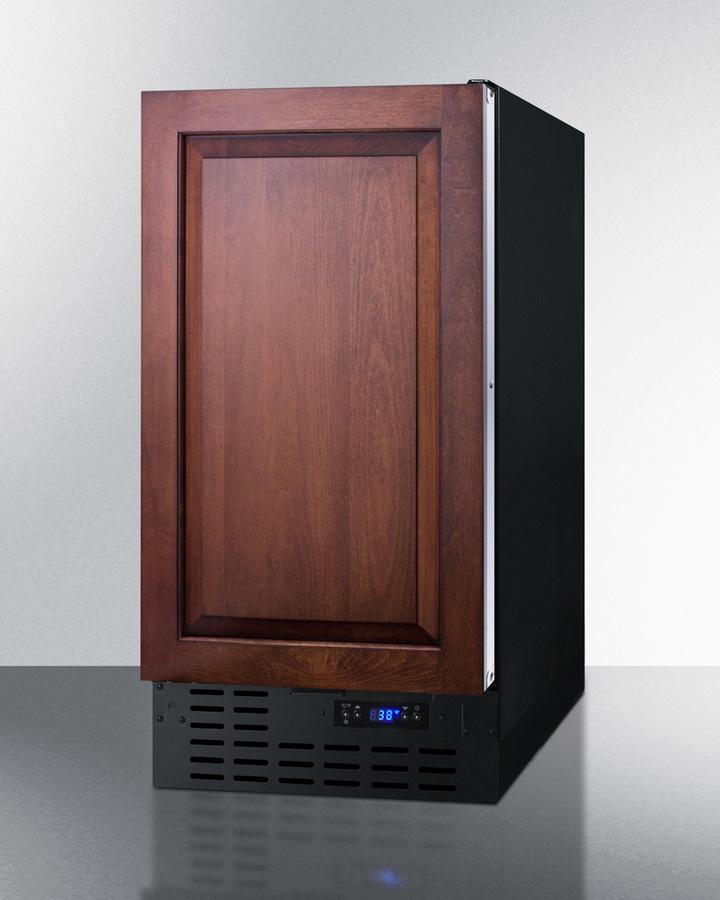

Sized just under 18" wide and 32" high, the FF1843BIFADA is the perfect all-refrigerator for space-challenged kitchens. It comes with a black cabinet. The door features an integrated stainless steel door frame designed to accept full overlay panels for a custom look. This unit can be used built-in or freestanding. Users provide their own handle.

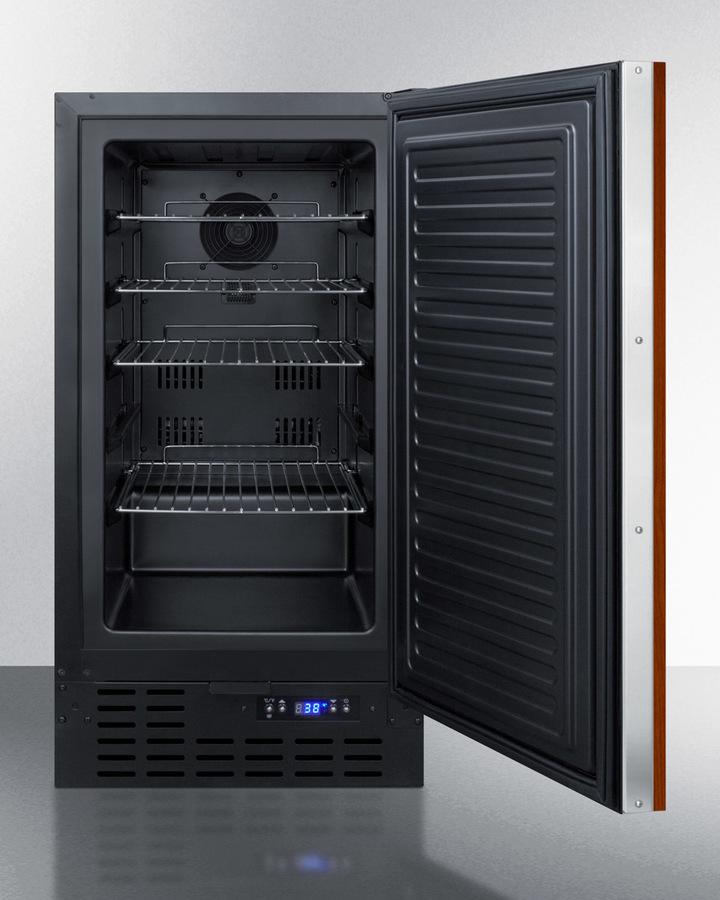

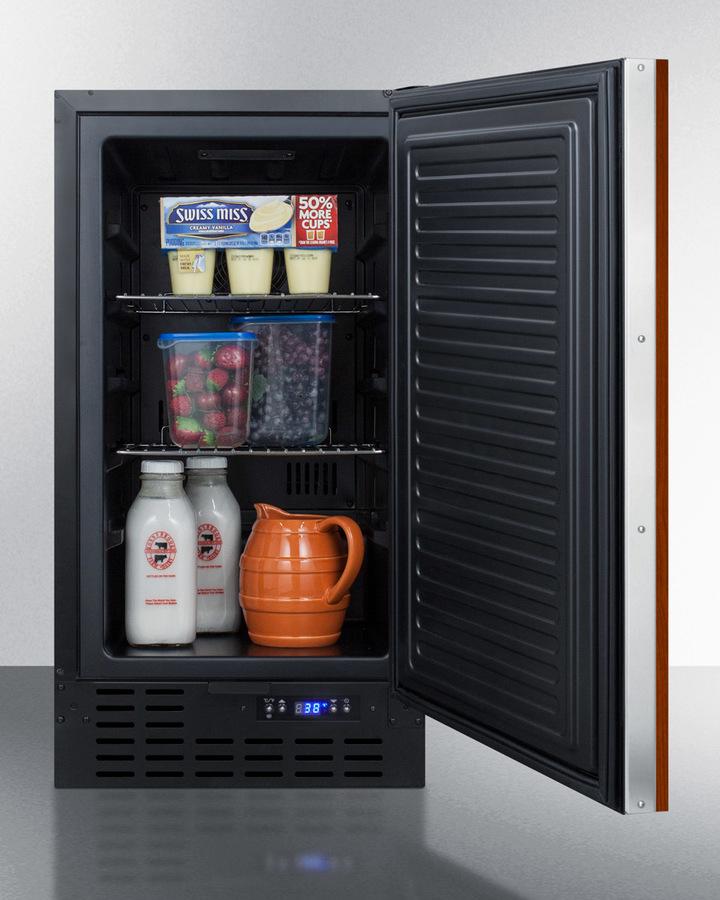

Inside, the FF1843BIFADA utilizes automatic defrost operation for low maintenance use. Four adjustable chrome shelves accommodate a variety of sizes and LED lighting offers an efficient interior view. This unit includes a digital thermostat for optimum temperature management.
Combine the FF1843BIFADA with its matching freezer, wine cellar, or beverage refrigerator. We also offer this model in black or stainless steel.
Features
-
ADA compliant: 32" height is designed to fit under lower ADA compliant counters
-
Built-in capable: Make the best use of space by installing your appliance under the counter
-
Commercially approved: ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
-
Integrated door frame: Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.))
-
Automatic defrost: Reduced maintenance with auto defrost system
-
Digital thermostat: Electronic controls for precise temperature management.
-
Digital display: Temperature readout can be shown in Celsius or Fahrenheit
-
LED lighting: Gentle illumination with an on/off switch
-
Adjustable chrome shelves: Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
-
Flush back: Space saving design
-
Fully finished black cabinet: Allows the unit to be used freestanding
-
100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
-
CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
-
Height of Cabinet: 31.5" (80 cm)
-
Width: 17.75" (45 cm)
-
Width with Door Open: 18.63" (47 cm)
-
Depth: 24.0" (61 cm)
-
Depth with door at 90°: 40.0" (102 cm)
-
Capacity: 2.7 cu.ft. (76 L)
-
Defrost Type: Automatic
-
Door: Panel-Ready
-
Cabinet: Black
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Sanitation: ETL-S
-
Energy Usage/Year: 250.0kWh/year
-
Amps: 1.1
-
Voltage/Frequency: 115 V AC/60 Hz
-
Weight: 90.0 lbs. (41 kg)
-
Shipping Weight: 93.0 lbs. (42 kg)
-
Parts & Labor Warranty: 1 Year
-
Compressor Warranty: 5 Years
-
UPC: 761101047010
Refrigerator Features
-
Door Swing: RHD
-
Reversible: Factory Reversible
-
Shelf Type: Chrome
-
Shelf Qty: 4
-
Adjustable Shelves: Yes
-
Thermostat Type: Digital
-
Fan Type: Interior and Exterior
-
Refrigerant Type: R600a
-
Refrigerant Amount: 1.06oz.
-
High Side PSI: 150.0
-
Low Side PSI: 50.0
-
Level Legs Qty: 2
-
Interior Light: Yes
Dimensions
-
Interior Height: 23.5" (60 cm)
-
Interior Width: 12.75" (32 cm)
-
Interior Depth: 16.75" (43 cm)
-
Compressor Step Height: 4.5" (11 cm)
-
Compressor Step Width: 12.75" (32 cm)
-
Compressor Step Depth: 4.5" (11 cm)
Available Upgrades
Exterior
- Latch for door
-
LHD: Left hand door swing
-
SCD: Self-closing door
- SSK
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
