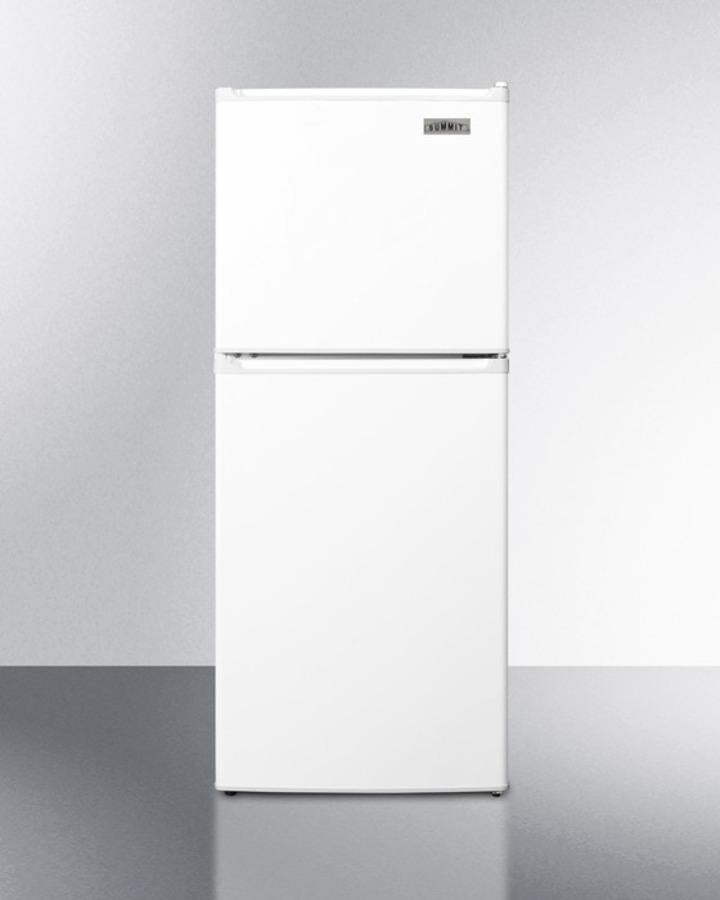

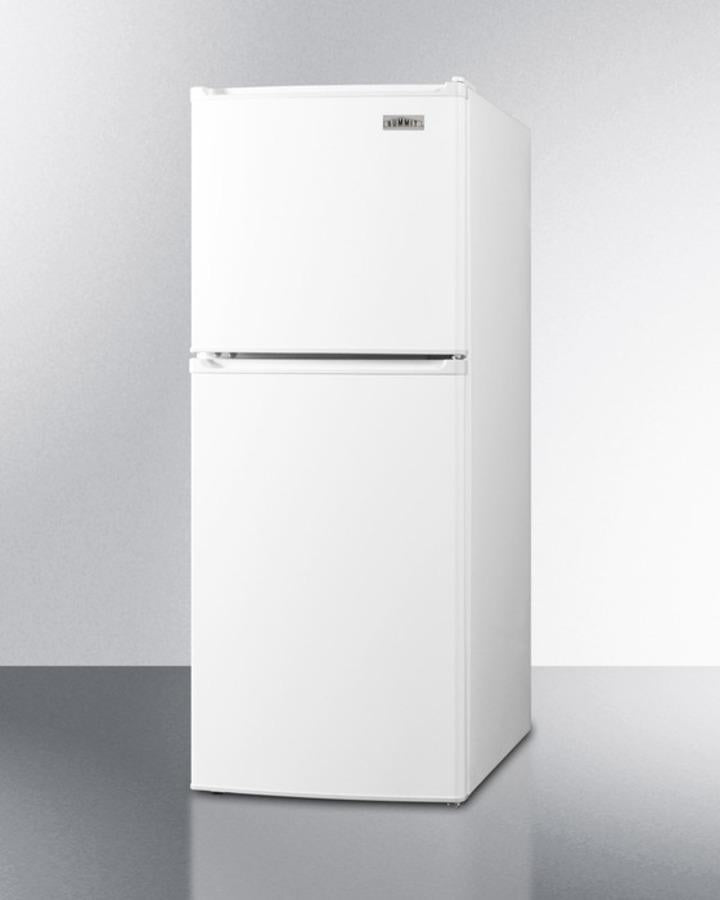

Summit 19" Wide Two-Door Refrigerator-Freezer - FF71ES

---

SUMMIT's ENERGY STAR qualified collection of mid-sized refrigerator-freezers offers uniquely sized units with energy efficient performances.

Made in North America, the FF71ES is sized just under 19" wide, with a 46" height that meets ADA guidelines to provide accessibility to wheelchair users. It features a textured white finish with reversible doors for added flexibility.

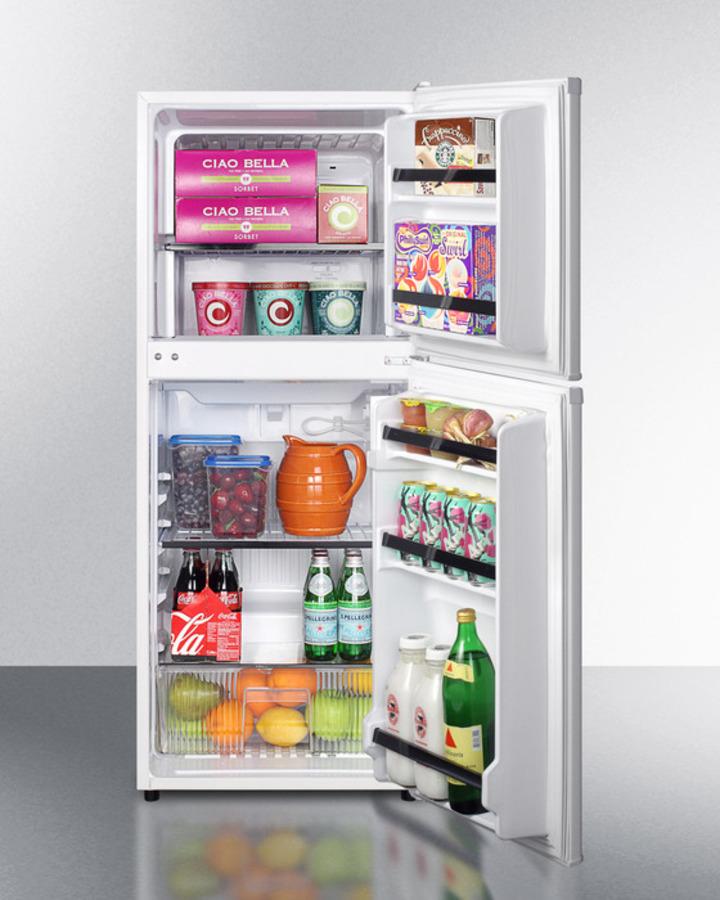

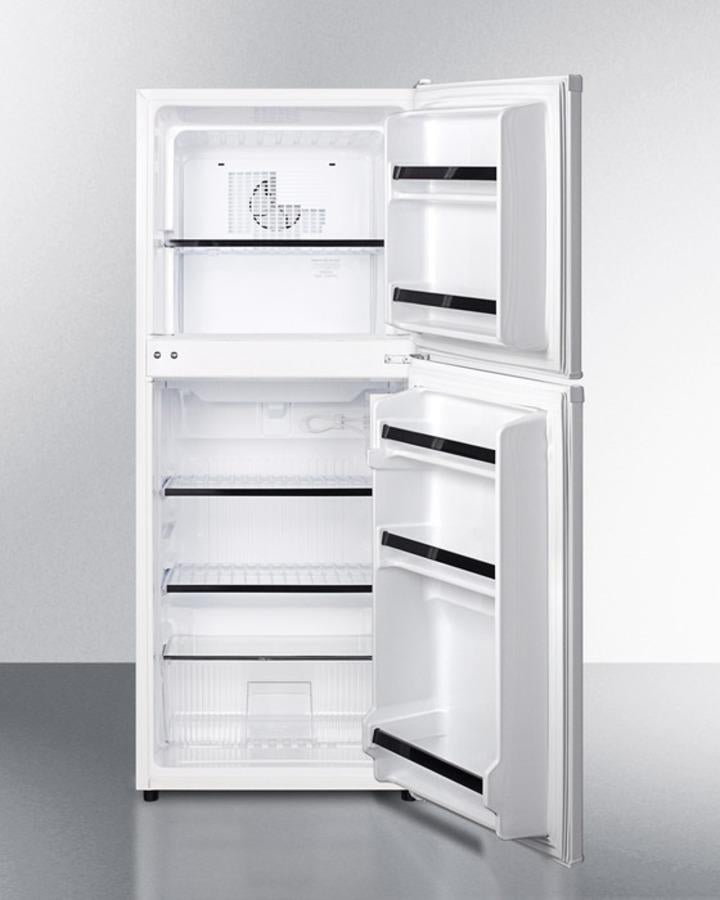

Inside, the FF71ES utilizes frost-free operation to minimize user maintenance. Both the refrigerator and freezer include door racks for easy storage. The fresh food section also features a large crisper drawer, interior lighting, and adjustable shelves. The compact freezer includes one removable shelf.

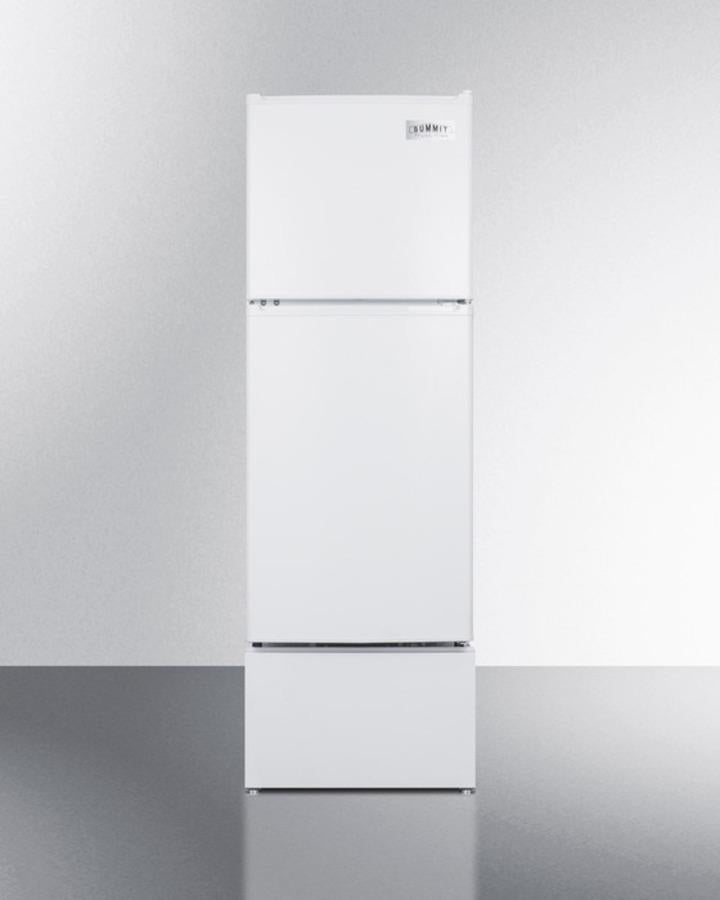

With its ENERGY STAR performance and compact fit, the FF71ES is the ideal refrigerator for smaller housing units, offices, dorms, and other space-restricted kitchens. We also offer this unit with a pedestal that raises the height by 12" to put the interior in easier reach for those with mobility challenges, such as assisted living residents. See the PED12 for more information.

Features

• ENERGY STAR qualified: Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
• CEE Tier II qualified: Efficient design meets CEE Tier II specifications, using 25% less energy than DOE standards require for this product category
• Frost-free operation: No-frost convenience for reduced user maintenance
• Thin-line design: Slim width under 19" for an easy fit in space-challenged kitchens
• Clear crisper: Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
• Interior light: Automatically illuminates when you open the door
• Adjustable shelves: Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
• Full freezer shelf: Organize your freezer contents with more options
• Door storage: Store tall bottles and condiments right on the door for convenient access
• Reversible doors: User-reversible door swing for added flexibility
• Adjustable thermostat: Dial thermostat located inside for easy temperature management
• ADA compliant: 46 inch height makes both the refrigerator and freezer accessible under ADA guidelines
• 100% CFC free: Environmentally friendly design without ozone-damaging chemicals

Specifications

Overview

• Height of Cabinet: 46.0" (117 cm)
• Width: 18.75" (48 cm)
• Depth: 23.0" (58 cm)
• Depth with door at 90°: 40.0" (102 cm)
• Capacity: 4.8 cu.ft. (136 L)
• Defrost Type: Frost-Free
• Door: White
• Cabinet: White
• US Electrical Safety: UL
• Canadian Electrical Safety: ULC
• Energy Usage/Year: 346.0kWh/year
• Amps: 0.9
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 102.0 lbs. (46 kg)
• Shipping Weight: 107.0 lbs. (49 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101038308

Refrigerator-Freezer

• Door Swing: RHD
• Reversible: Yes
• Adjustable Shelves: Yes
• Crisper Qty: 1
• Crisper Finish: Transparent
• Crisper Cover: Glass
• Interior Light: Yes
• Refrigerator - Interior Height: 24.75" (63 cm)
• Refrigerator - Interior Width: 16.25" (41 cm)
• Refrigerator - Interior Depth: 15.75" (40 cm)
• Refrigerator - Capacity: 3.7 cu.ft
• Refrigerator - Shelf Type: Wire
• Refrigerator - Shelf Qty: 2
• Refrigerator - Full Door Shelves: 3
• Freezer - Interior Height: 13.5" (34 cm)
• Freezer - Interior Width: 13.88" (35 cm)
• Freezer - Interior Depth: 12.5" (32 cm)
• Freezer - Capacity: 1.1 cu.ft
• Freezer - Shelf Type: Wire
• Freezer - Shelf Qty: 1
• Freezer - Full Door Shelves: 2
• Thermostat Type: Dial
• Fan Type: Interior
• Refrigerant Type: R134a
• Refrigerant Amount: 2.8 oz.
• High Side PSI: 260.0
• Low Side PSI: 140.0
• Level Legs: 2
• Compressor Step Height: 6.0" (15 cm)
• Compressor Step Width: 16.25" (41 cm)
• Compressor Step Depth: 6.5" (17 cm)

Available Upgrades

Exterior

• HG: Hospital grade cord
• Latch for door
• LHD: Left hand door swing
• ODA: Open door alarm
• Alarm
• PH: Probe Hole
• DL2B: Factory installed NIST calibrated digital data logger (DDL)

Handle

• TB Set
• TBC Copper Towel Bar Handles
• CP Full-Length Copper Pipe Handles

Lock

• LLF2: Combination lock


Manufacturer Resources

• Brochure w/ Drawings
• Technical Drawing (.dwg)
• Use and Care
• MSDS Information
• Energy Guide



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
