Summit 20" Wide Built-in Refrigerator-Freezer ADA Compliant - ALRF49BCSSHV
Summit Appliance offers a wide range of built-in under-counter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.
The ALRF49BCSSHV is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance.

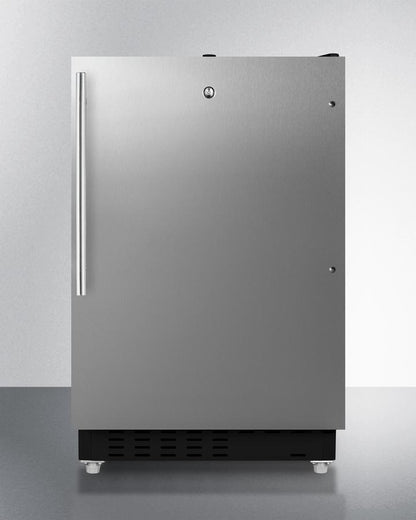

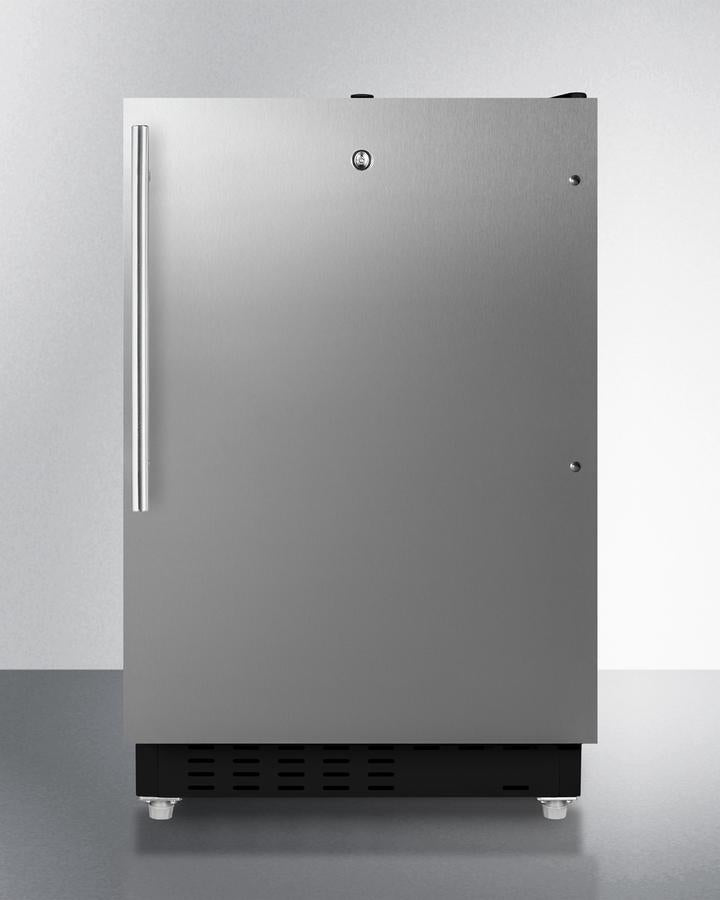

The stainless steel, user-reversible door is 3" thick for efficient insulation, with a sleek vertical handle with a thin 14mm diameter, a popular style that matches many common cabinet handles. This unit comes with a right angle cord to allow for easier placement without added depth. A factory-installed lock is conveniently located towards the top of the door to provide security as needed.

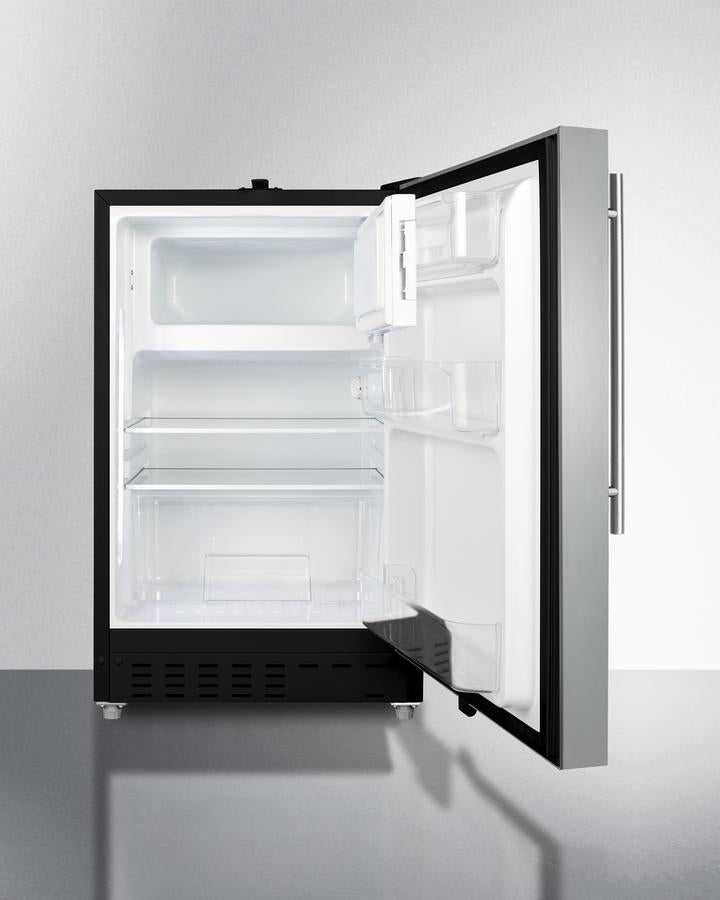

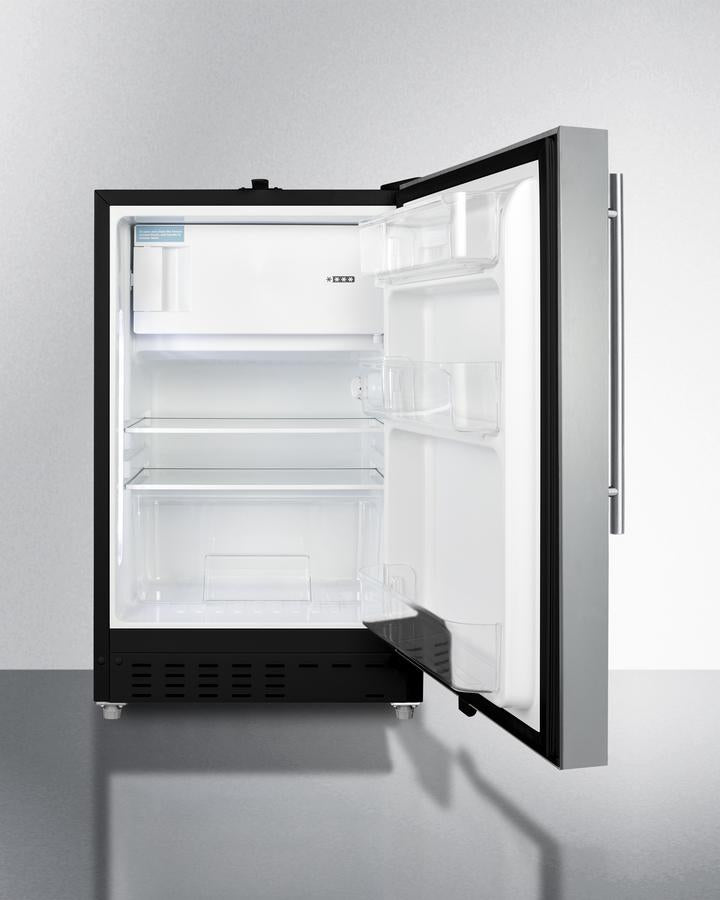

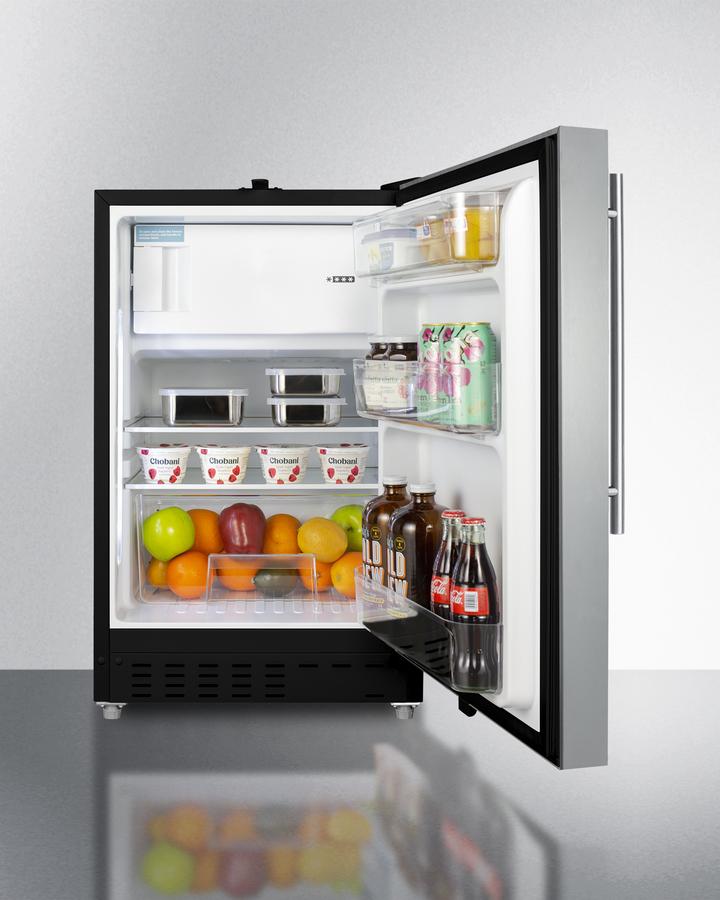

Inside, the ALRF49BCSSHV features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens.

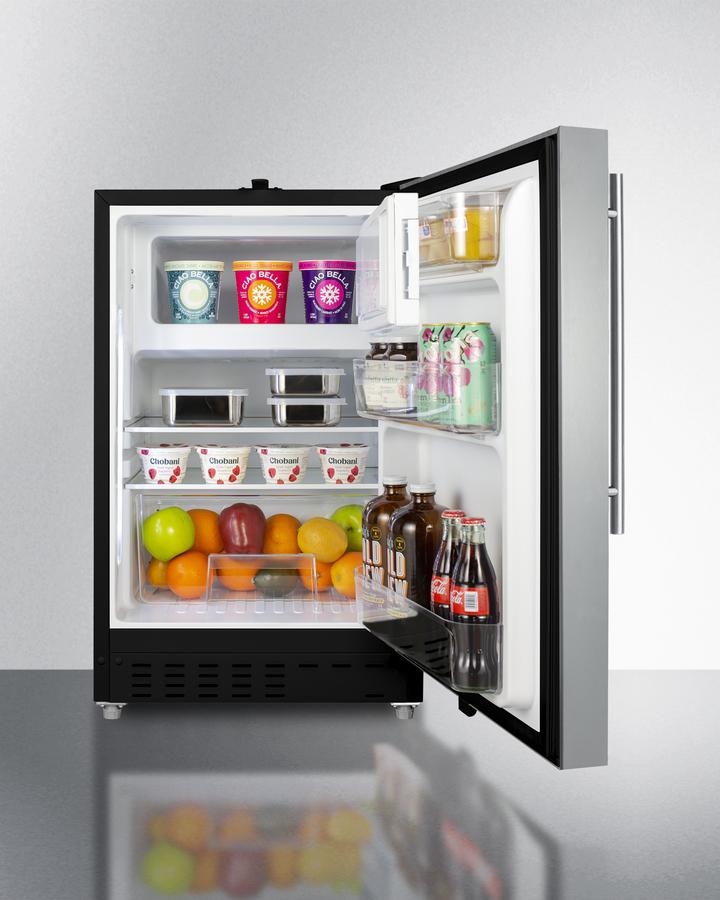

Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover.
With its compact size and convenient features, the ALRF49BCSSHV is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.
Features
-
ADA compliant design: 32" height allows easy installation under lower ADA compliant counters
-
Built-in capable: Front-breathing design lets you make the best use of space by installing your appliance under the counter
-

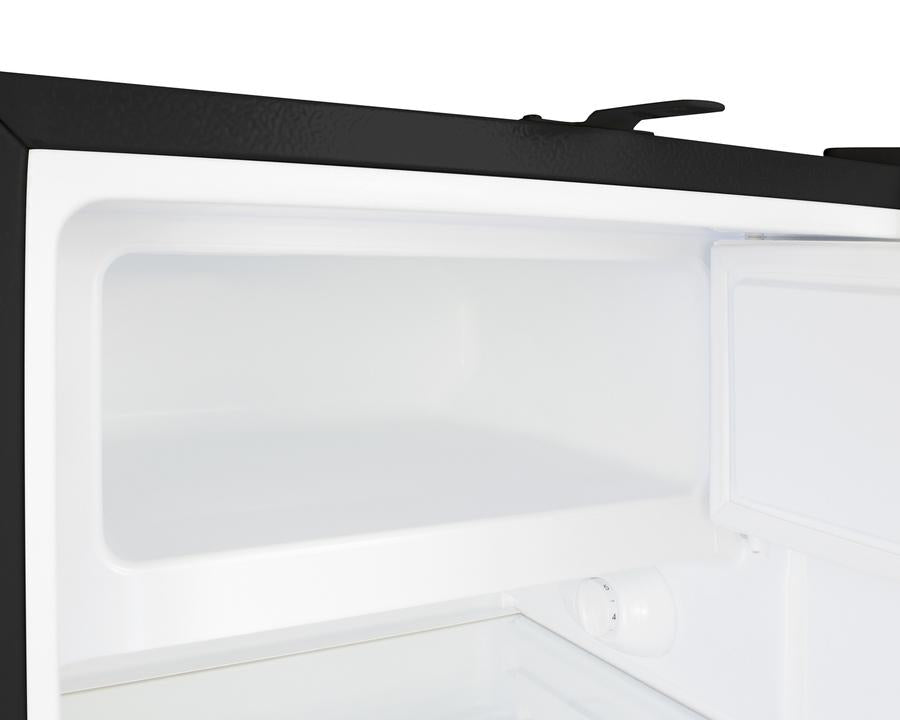

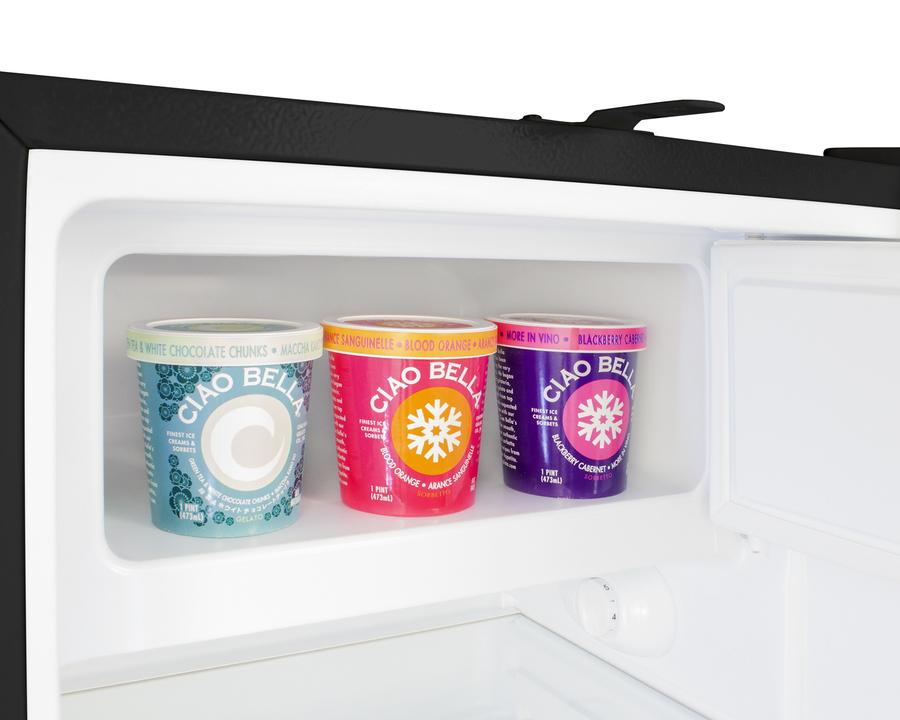

Freezer compartment: Interior freezer compartment offers convenient storage for frozen items
-

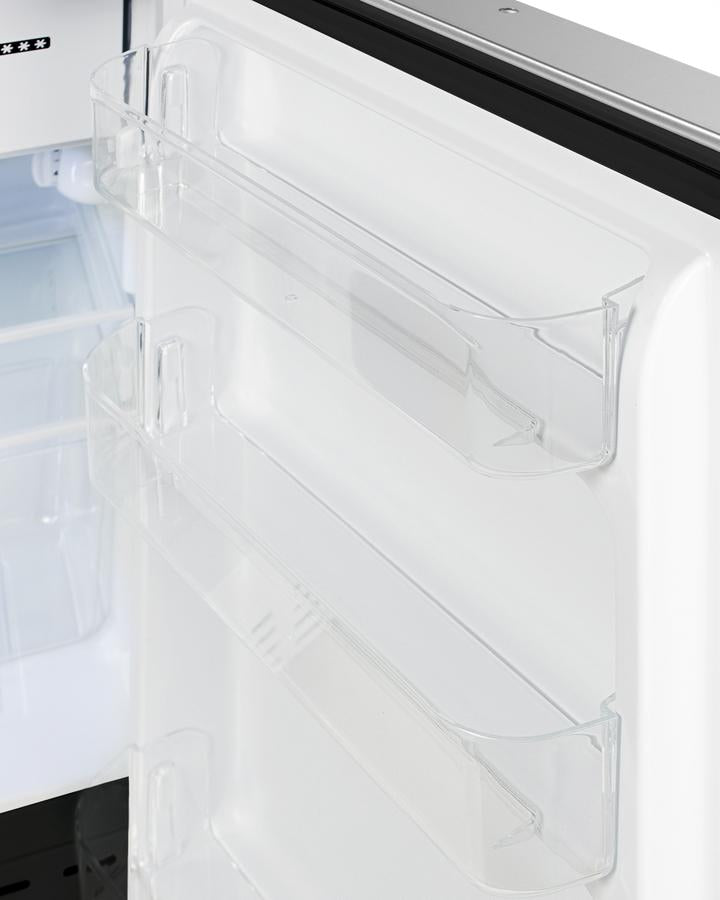

Door shelves: Three removable door racks for additional storage of larger items
-
Adjustable shelves: Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
-
Fruit and vegetable crisper: Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
-
Adjustable thermostat: Dial thermostat located inside for easy temperature management
-
Reversible stainless steel door: Stainless steel, user-reversible door for added flexibility to best accommodate your setting
-
3" thick door: Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator-freezer against a wall, please see our drawings to ensure adequate space
-
Professional handle: Brushed stainless steel handle with a thin 14mm diameter is mounted vertically for a sleek look
-
Factory installed lock: Lock provides added security of unit (2 keys included)
-
Sealed back: Space-saving design that offers easier clean-ability
-
Right-angle plug: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
-
Manual defrost: Efficient performance with reliable temperature stability
-
Interior light: Front-located LED light ensures entire interior is lit when door opens
-

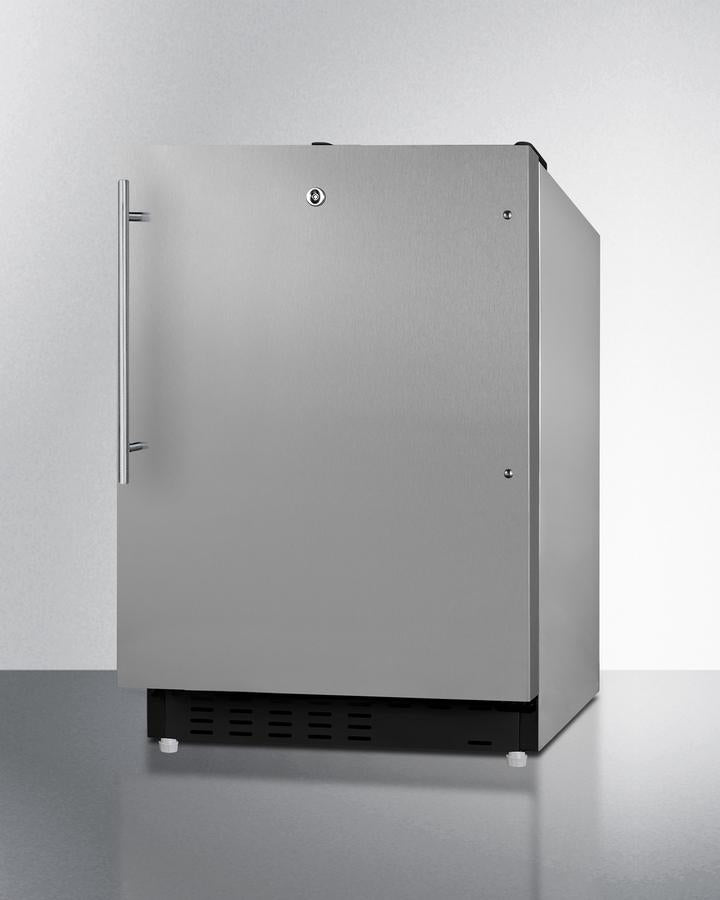

Fully finished stainless steel cabinet: Allows the unit to be used freestanding
-
100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
-
CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations.
Specifications
Overview
-
Height of Cabinet: 31.75" (81 cm)
-
Height to Hinge Cap: 32.0" (81 cm)
-
Width: 19.88" (50 cm)
-
Width with Door Open: 20.88" (53 cm)
-
Depth: 22.5" (57 cm)
-
Depth with Handle: 24.0" (61 cm)
-
Depth with door at 90°: 40.25" (102 cm)
-
Capacity: 2.68 cu.ft. (76 L)
-
Defrost Type: Manual
-
Door: Stainless Steel
-
Cabinet: Stainless Steel
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Energy Usage/Year: 259.0kWh/year
-
Amps: 1.1
-
Voltage/Frequency: 115 V AC/60 Hz
-
Weight: 105.0 lbs. (48 kg)
-
Shipping Weight: 110.0 lbs. (50 kg)
-
Parts & Labor Warranty: 1 Year
-
Compressor Warranty: 5 Years
-
UPC: 761101076829
Refrigerator-Freezer
-
Door Swing: RHD
-
Reversible: Yes
-
Adjustable Shelves: Yes
-
Crisper Qty: 1
-
Crisper Finish: Transparent
-
Crisper Cover: Glass
-
Interior Light: Yes
-
Refrigerator - Interior Height: 17.5" (44 cm)
-
Refrigerator - Interior Width: 16.25" (41 cm)
-
Refrigerator - Interior Depth: 17.0" (43 cm)
-
Refrigerator - Shelf Type: Glass
-
Refrigerator - Shelf Qty: 3
-
Refrigerator - Full Door Shelves: 3
-
Refrigerator - Temperature Range: 35-46º F
-
Refrigerator - Refrigerant Type: R600a
-
Refrigerator - Refrigerant Amount: 0.92 oz.
-
Freezer - Interior Height: 5.75" (15 cm)
-
Freezer - Interior Width: 16.25" (41 cm)
-
Freezer - Interior Depth: 11.25" (29 cm)
-
Thermostat Type: Dial
-
Refrigerant Type: R600a
-
Refrigerant Amount: 0.92 oz.
-
High Side PSI: 180.0
-
Low Side PSI: 80.0
-
Level Legs: 2
-
Compressor Step Height: 6.25" (16 cm)
-
Compressor Step Width: 16.25" (41 cm)
-
Compressor Step Depth: 6.0" (15 cm)
Available Upgrades
Exterior
-
ODA: Open door alarm
-
LHD: Left hand door swing
Lock
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
