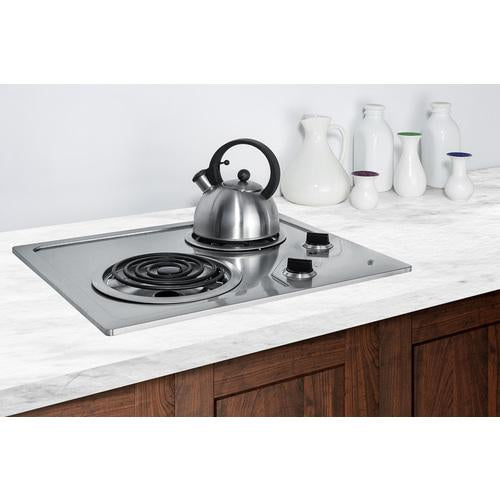

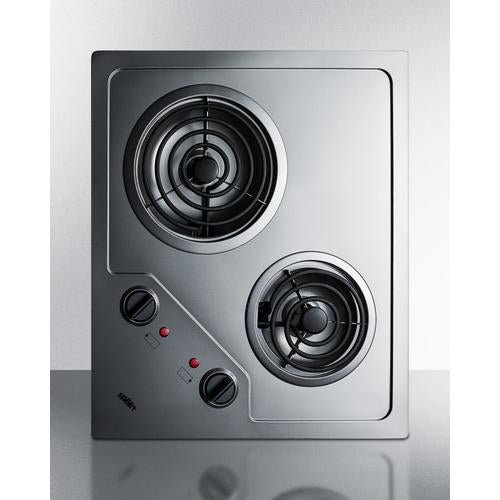

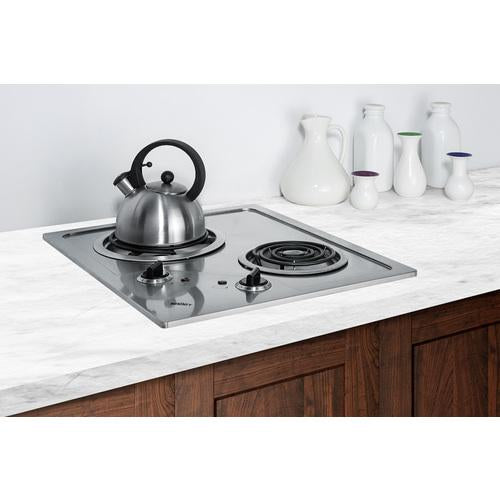

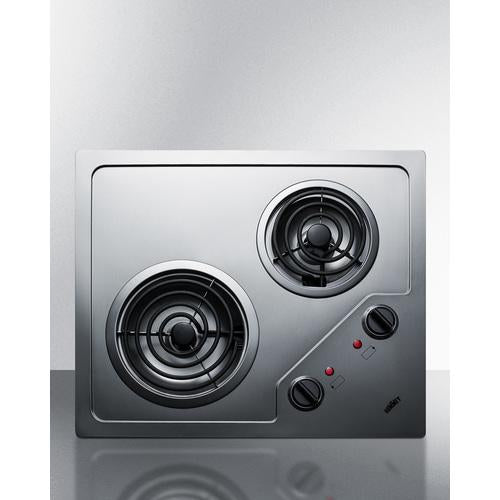

Summit 21" Wide 230V 2-Burner Coil Cooktop - CR2B224S
Summit offers a quality lineup of electric cooktops designed to suit any residential or hotel kitchen setup.
The CR2B224S is a 230V cooktop made from attractive stainless steel. This unit is designed to fit many common counter cutouts sized 20" x 16". The burners and knobs are specially laid out so that they are easy and intuitive to use when the unit is installed in a landscape or portrait configuration.
This unit features a large 7" 1800W coil element and a 5 1/2" 1200W coil element, letting you accommodate a variety of sizes. Additional safety features include indicator lights and push-to-turn knobs.
With its innovative design and quality construction, the CR2B224S brings modern convenience to a classic cooktop size.
Features
-
Versatile placement: Specially designed to be mounted portrait or landscape style with controls being easy to read and manage in either direction
-
Fits popular cutout size: Designed for built-in installation in 20" x 16" cutouts
-
Two coil heating elements: One 1800W burner and one 1200W burner for fast cooking
-
Stainless steel finish: Surface is made from stainless steel for an attractive and easy to clean look
-
230V operation: Professional installation required
-
Push-to-turn controls: Prevents accidents by requiring a small amount of force to turn on cooktop heat
-
Indicator lights: Operating indicators light up to show which burner is in use
-
ADA compliant design: Upfront controls and easy-to-operate knobs offer easier accessibility
Specifications
Overview
-
Height of Cabinet: 3.38" (9 cm)
-
Width: 21.25" (54 cm)
-
Depth: 18.0" (46 cm)
-
Cabinet: Stainless Steel
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Amps: 20.0
-
Voltage/Frequency: 230 V AC/60 Hz
-
Weight: 8.0 lbs. (4 kg)
-
Shipping Weight: 17.0 lbs. (8 kg)
-
Parts & Labor Warranty: 1 Year
-
UPC: 761101050454
Electric Cooktop
-
Heating Type: Radiant
-
Surface: Stainless Steel
-
Element Type: Coils
-
Number of Elements: 2
-
Controls: Dial
-
Countertop Cutout Height: 3.0" (8 cm)
-
Countertop Cutout Width: 20.0" (51 cm)
-
Countertop Cutout Depth: 16.0" (41 cm)
-
Element #1 Size: 5.5" (14 cm)
-
Element #1 Wattage: 1200.0
-
Element #2 Size: 7.0" (18 cm)
-
Element #2 Wattage: 1800.0
-
Power Cord Included: No
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
