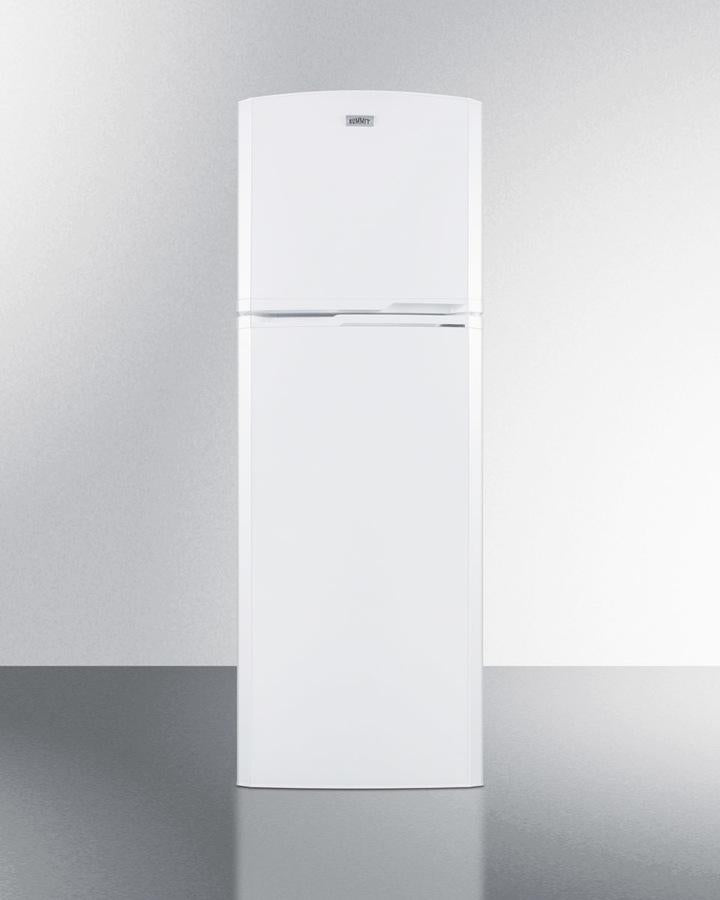

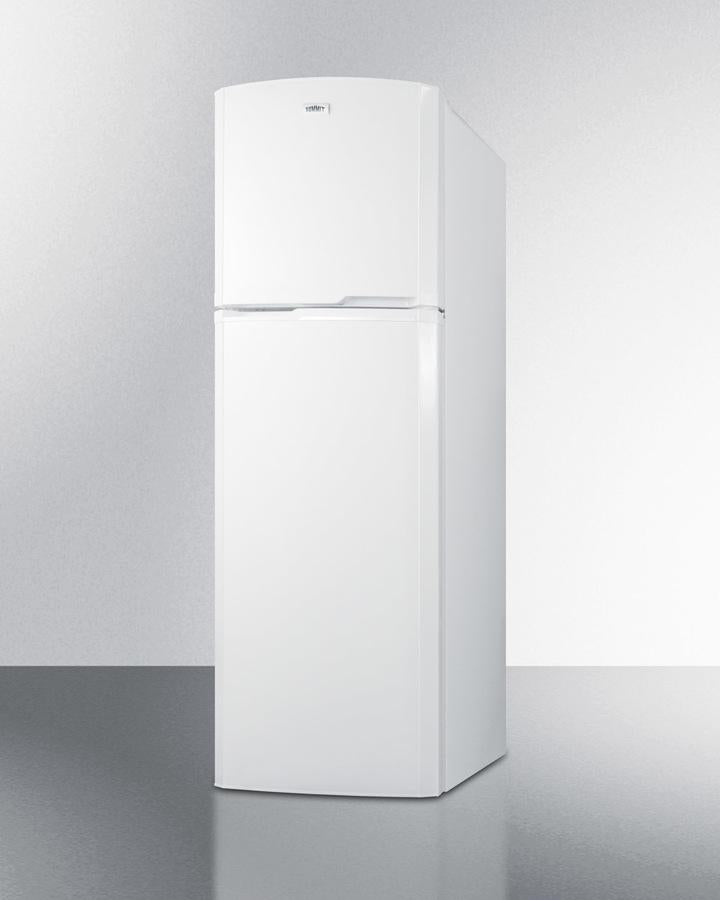

Summit 22" Wide Top Mount Refrigerator-Freezer in White - FF946W
SUMMIT's thin-line collection of frost-free refrigerator-freezers brings quality and convenience to even the smallest kitchen space.

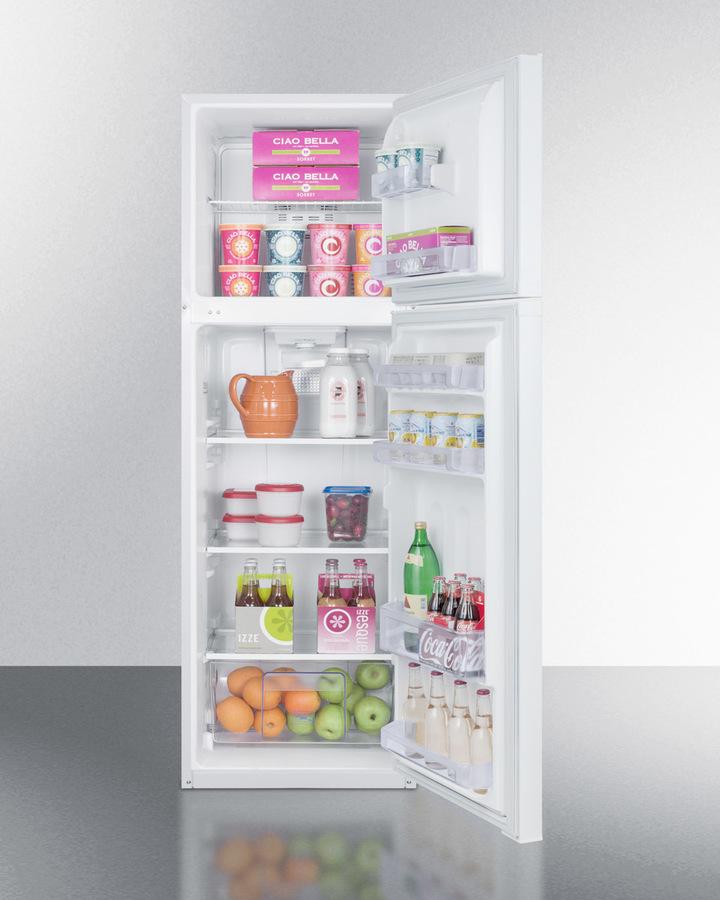

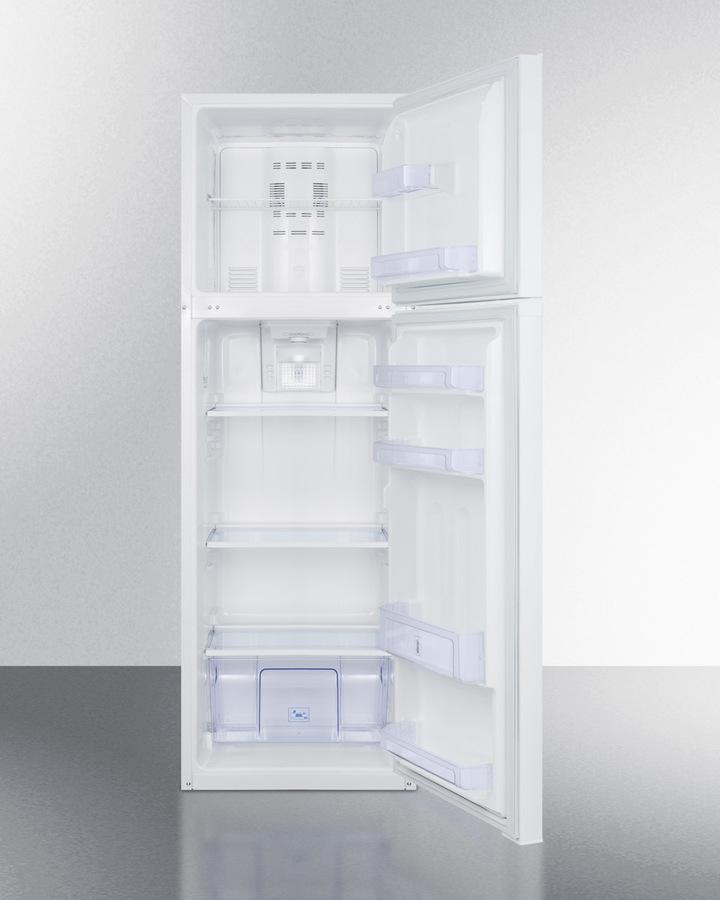

The FF946W offers a full 8.8 cu.ft. capacity inside a slim fit, with a unique curved door design for added style. The fresh food section includes adjustable glass shelves for spill-proof storage and easy cleaning, with a large tilt-out crisper and four door racks to help keep your refrigerator organized. The large freezer section includes a removable wire shelf and two door racks for added convenience.
Made in North America, the FF946W includes reversible doors and comes in a white finish. To add a factory installed icemaker, order FF946WIM. For this unit in stainless steel, see the FF948SS.
NOTE: Because of this unit's curved door style, the FF946W requires an additional 1 3/4" of width to open the doors to a full 90º. If placing this unit against a right angle wall, be sure to accommodate this extra space.
Features
-
Thin-line design: Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots
-
Frost-free operation: No-frost convenience for reduced user maintenance
-
Adjustable shelves: Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
-
Full freezer shelf: Offers additional options for organization
-
Door storage: Store large bottles right on the door for easy access
-
Clear crisper: Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
-
Reversible doors: User-reversible door swing for added flexibility
-
Interior light: Automatically illuminates when you open the door
-
100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Specifications
Overview
-
Height of Cabinet: 64.75" (164 cm)
-
Height to Hinge Cap: 65.75" (167 cm)
-
Width: 22.0" (56 cm)
-
Width with Door Open: 23.75" (60 cm)
-
Depth: 26.0" (66 cm)
-
Depth with door at 90°: 44.25" (112 cm)
-
Capacity: 8.8 cu.ft. (249 L)
-
Defrost Type: Frost-Free
-
Door: White
-
Cabinet: White
-
US Electrical Safety: UL
-
Canadian Electrical Safety: ULC
-
Energy Usage/Year: 316.0kWh/year
-
Amps: 0.82
-
Voltage/Frequency: 115 V AC/60 Hz
-
Weight: 125.0 lbs. (57 kg)
-
Shipping Weight: 130.0 lbs. (59 kg)
-
Parts & Labor Warranty: 1 Year
-
Compressor Warranty: 5 Years
-
UPC: 761101038445
Refrigerator-Freezer
-
Door Swing: RHD
-
Reversible: Yes
-
Adjustable Shelves: Yes
-
Crisper Qty: 1
-
Crisper Finish: Transparent
-
Crisper Cover: Glass
-
Interior Light: Yes
-
Refrigerator - Interior Height: 40.5" (103 cm)
-
Refrigerator - Interior Width: 17.0" (43 cm)
-
Refrigerator - Interior Depth: 17.0" (43 cm)
-
Refrigerator - Capacity: 6.67 cu.ft
-
Refrigerator - Shelf Type: Glass
-
Refrigerator - Shelf Qty: 2
-
Refrigerator - Full Door Shelves: 4
-
Freezer - Interior Height: 16.0" (41 cm)
-
Freezer - Interior Width: 16.25" (41 cm)
-
Freezer - Interior Depth: 13.25" (34 cm)
-
Freezer - Capacity: 2.1 cu.ft
-
Freezer - Shelf Type: Wire
-
Freezer - Shelf Qty: 1
-
Freezer - Full Door Shelves: 1
-
Freezer - Half Door Shelves: 1
-
Thermostat Type: Dial
-
Fan Type: Interior
-
Refrigerant Type: R134a
-
Refrigerant Amount: 3.53 oz.
-
Level Legs: 2
-
Compressor Step Height: 9.75" (25 cm)
-
Compressor Step Width: 17.0" (43 cm)
-
Compressor Step Depth: 4.0" (10 cm)
Available Upgrades
Lock
-
LLF2: Combination lock
-
LL: Side-mounted locks
Handle
- TB Set
- TBC Copper Towel Bar Handles
- CP Full-Length Copper Pipe Handles
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
