Summit 24" Wide Built-In All-Refrigerator With Wood Panel Door - FF63BKBIWP1
Summit's line of wood-accented refrigeration solutions brings quality and style to any kitchen space.

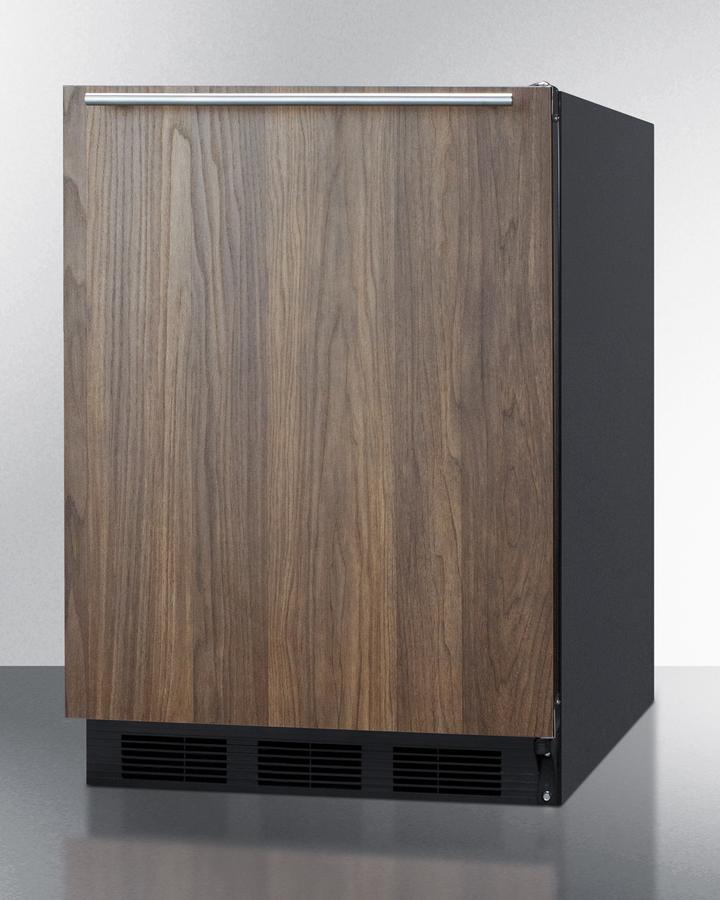

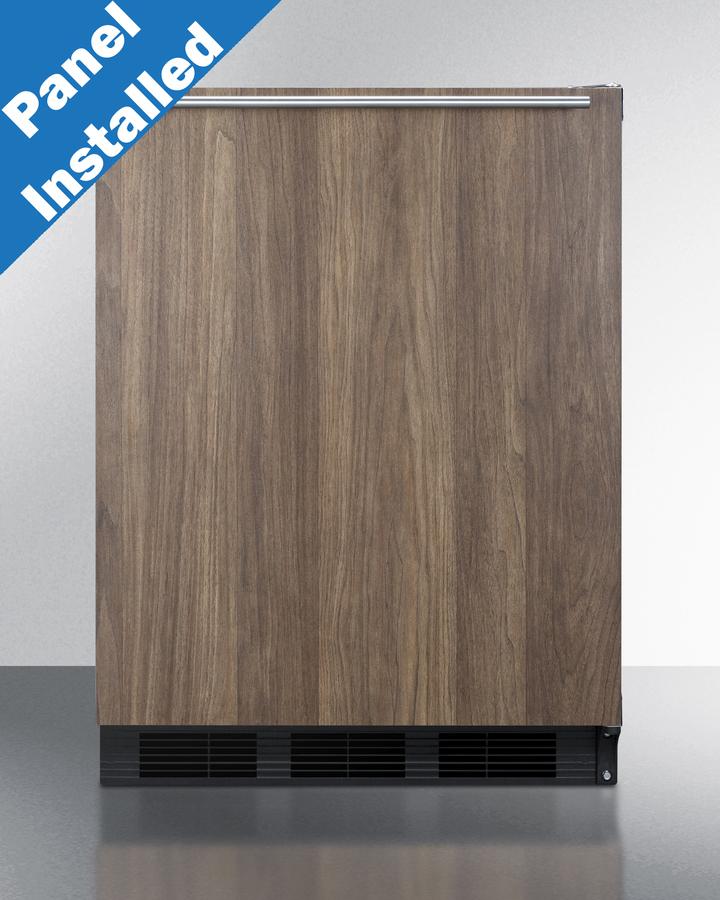

Sized with a 24” footprint, the FF63BKBIWP1 has a black cabinet allowing for freestanding use, while the front-breathing system also affords built-in use. This unit comes with a pre-installed engineered wood panel door in a walnut finish for added elegance and durability.
A stainless steel handle mounted horizontally affords easy opening. This unit comes with a right-hand door swing. (NOTE: For a left-hand door swing, please select option 'LHD' when ordering. The door is not user-reversible.) Adjustable legs allow the unit to be sized from 32 1/2" to 34" high for added convenience.

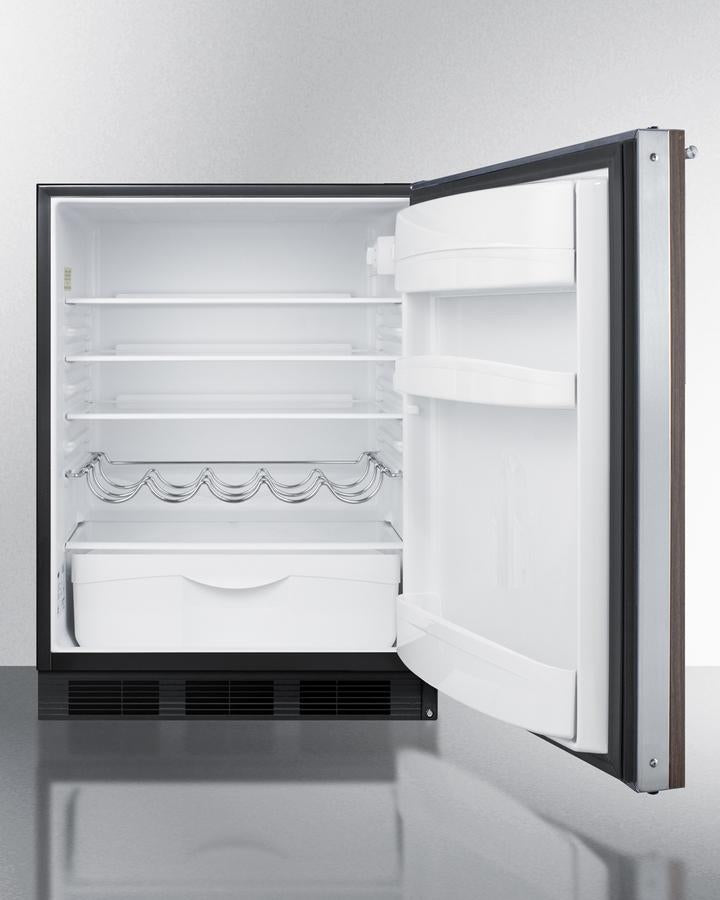

Inside, the FF63BKBIWP1 refrigerator utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, while a large crisper drawer is ideal for keeping produce at its best.
A removable wine shelf lets you keep bottles securely in place. The door includes three storage racks for condiments and tall bottles. The seamless interior also features a dial thermostat and automatic light.
Designed and constructed in Europe, the FF63BKBIWP1 refrigerator offers reliable cold storage in an attractive, elegant style, perfect for any home seeking reliable cold storage under the counter. This unit is also available in an ADA-compliant height (see FF6BKBIWP1ADA).
Features
-
Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
-
Slim under-counter dimensions: Our unique 24" wide models offer full capacity in a slim fit
-
Pre-installed wood door panel: Door features engineered wood with a laminate finish in a walnut hue
-
Automatic defrost: Reduced maintenance with auto defrost system
-
Adjustable glass shelves: Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
-
Door storage: Store tall bottles and condiments right on the door for convenient access
-
Wine shelf: Removable scalloped wine shelf is included to store champagne and wine bottles
-
Fruit and vegetable crisper: Get the longest life and best taste out of produce by storing it in a convenient slide drawer
-
One piece interior liner: Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
-
Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
-
Interior light: Automatically illuminates when you open the door
-
Adjustable thermostat: Dial thermostat located inside for easy temperature management
-
Professional horizontal handle: Thin 14mm diameter on stainless steel handle set horizontally across the door
-
Right-hand door swing: Comes with a right-hand door swing (NOTE: For a left-hand door swing, please select 'LHD' when purchasing. The door is not user-reversible)
-
Fully finished black cabinet: Allows the refrigerator to be used freestanding
-
Height adjustable: Adjustable legs allow the unit to be sized from 32 1/2" to 34" high
-
100% CFC free: Environmentally friendly design without ozone-damaging chemicals
-
CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
-
Height of Cabinet: 33.25" (84 cm)
-
Width: 23.5" (60 cm)
-
Depth: 23.75" (60 cm)
-
Depth with Handle: 25.25" (64 cm)
-
Depth with door at 90°: 46.38" (118 cm)
-
Capacity: 5.5 cu.ft. (156 L)
-
Defrost Type: Automatic
-
Door: Walnut Wood
-
Cabinet: Black
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Energy Usage/Year: 307.0kWh/year
-
Amps: 1.4
-
Weight: 150.0 lbs. (68 kg)
-
Shipping Weight: 155.0 lbs. (70 kg)
-
Parts & Labor Warranty: 1 Year
-
Compressor Warranty: 5 Years
-
UPC: 761101078205
Refrigerator Features
-
Door Swing: RHD
-
Reversible: Factory Reversible
-
Crisper Qty: 1
-
Crisper Finish: Opaque
-
Crisper Cover: Glass
-
Shelf Type: Glass
-
Shelf Qty: 3
-
Full Door Shelf Qty: 3
-
Adjustable Shelves: Yes
-
Wine Bottle Shelves: Yes
-
Thermostat Type: Dial
-
Fan Type: Exterior
-
Refrigerant Type: R600a
-
Refrigerant Amount: 0.64oz.
-
High Side PSI: 180.0
-
Low Side PSI: 80.0
-
Level Legs Qty: 4
-
Interior Light: Yes
Dimensions
-
Interior Height: 26.25" (67 cm)
-
Interior Width: 21.0" (53 cm)
-
Interior Depth: 18.0" (46 cm)
-
Compressor Step Height: 5.5" (14 cm)
-
Compressor Step Width: 21.0" (53 cm)
-
Compressor Step Depth: 6.0" (15 cm)
Available Upgrades
Door
-
STO: Step-To-Open Door Pedal
Handle
- CP Full-Length Copper Pipe Handle
- TBC Copper Towel Bar Handle
Exterior
-
HG: Hospital grade cord
- SSK
- Latch for door
-
LHD: Left hand door swing
-
ODA: Open door alarm
-
SCD: Self-closing door
- SS Hinges
- Alarm
- CAS6 6" casters
-
DT: Digital thermostat
- Legs to raise unit height
-
PH: Probe Hole
-
TT: Installed thermometer
- CAS3 3" casters
-
DL2B: Factory installed NIST calibrated digital data logger (DDL)
Interior
-
FC: Internal Fan
-
FCGP: Internal fan with gel packs
Lock
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
