Summit 24" Wide Built-In Refrigerator-Freezer - CT661WBI
SUMMIT brings quality and value under the counter with the industry’s largest collection of built-in refrigeration. The CT661BI Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage in any home kitchen.
Sized with a 24” footprint, CT661WBI refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, a larger interior than many units in this size class. The front-breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. This unit comes in a white exterior finish with a stainless steel handle. The user-reversible offers added flexibility.
Inside, the CT661WBI features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food.

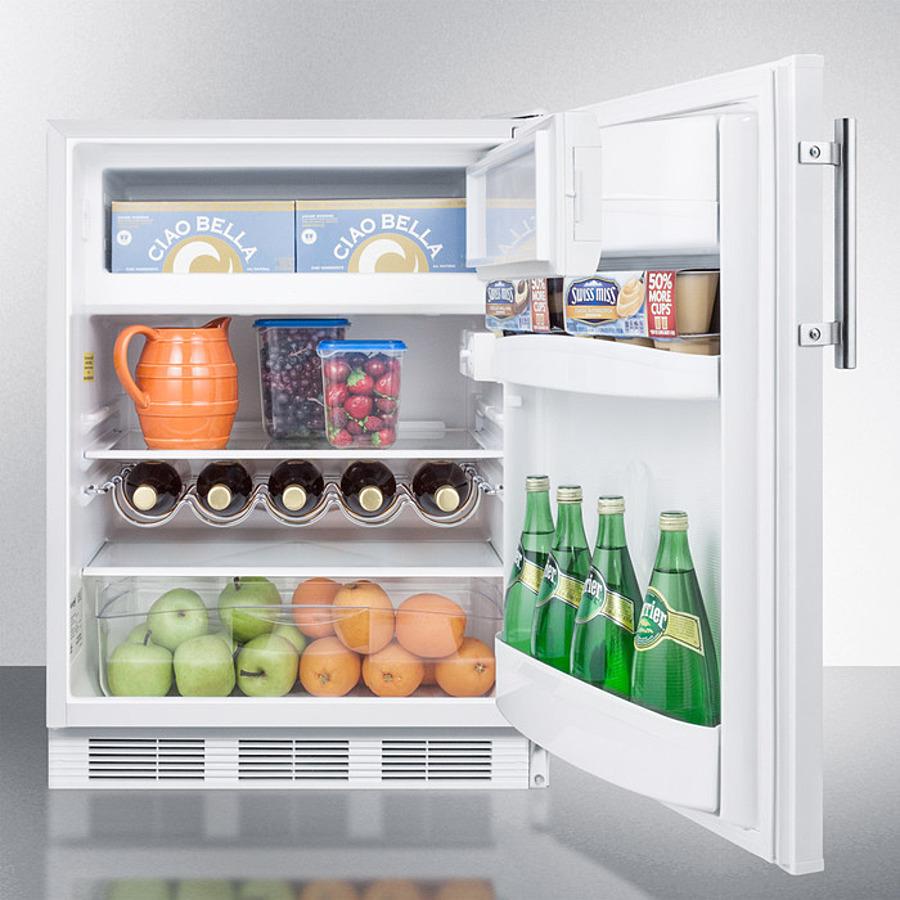

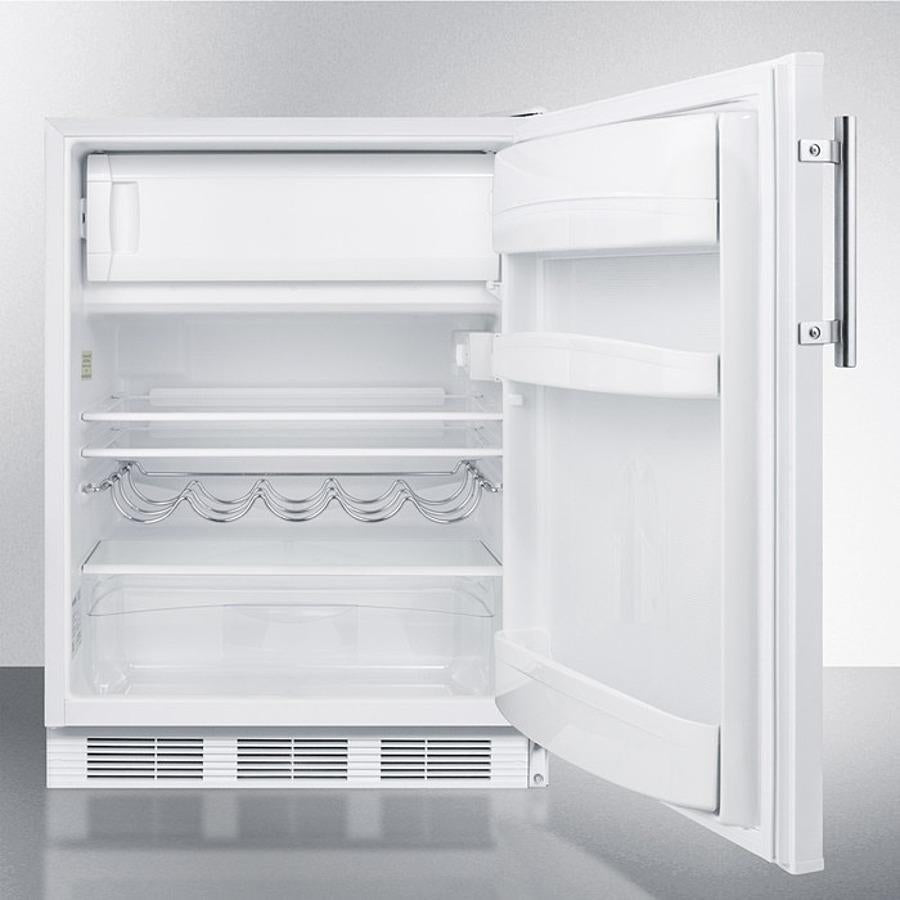

The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat.
With its ideal dimensions and user-friendly features, the CT661WBI is the perfect refrigerator-freezer for any home in need of versatile storage under the counter. For this unit in a black finish, see the CT663BKBI.
Features
-
Slim under-counter dimensions: Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
-
Built-in capability: Make the best use of space by installing your refrigerator under the counter and flush with other cabinets
-
Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
-
Dual evaporator: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
-
Adjustable glass shelves: Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
-
Fruit and vegetable crisper: Get the longest life and best taste out of produce by storing it in a convenient slide drawer
-
Door storage: Store tall bottles and condiments right on the door for convenient access
-
Wine shelf: Removable scalloped wine shelf is included to store champagne and wine bottles
-
Interior light: Automatically illuminates when you open the door
-
Hidden evaporator: Cold wall design with hidden evaporator creates a seamless, easy to clean interior
-
Adjustable thermostat: Dial thermostat located inside for easy temperature management
-
Reversible door: User-reversible door swing for added flexibility
-
Fully finished cabinet: Allows the unit to be used freestanding
-
Height Adjustable: Adjustable legs allow the unit to be sized from 32 1/2" to 34" high
-
100% CFC free: Environmentally friendly design without ozone-damaging chemicals
-
CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
-
Height of Cabinet: 33.25" (84 cm)
-
Width: 23.63" (60 cm)
-
Depth: 23.0" (58 cm)
-
Depth with Handle: 24.63" (63 cm)
-
Depth with door at 90°: 45.38" (115 cm)
-
Capacity: 5.1 cu.ft. (144 L)
-
Defrost Type: Cycle
-
Door: White
-
Cabinet: White
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Energy Usage/Year: 365.0kWh/year
-
Amps: 1.4
-
Voltage/Frequency: 115 V AC/60 Hz
-
Weight: 100.0 lbs. (45 kg)
-
Shipping Weight: 105.0 lbs. (48 kg)
-
Parts & Labor Warranty: 1 Year
-
Compressor Warranty: 5 Years
-
UPC: 761101068282
Refrigerator-Freezer
-
Door Swing: RHD
-
Reversible: Yes
-
Adjustable Shelves: Yes
-
Crisper Qty: 1
-
Crisper Finish: Transparent
-
Crisper Cover: Glass
-
Wine Bottle Shelving: Yes
-
Interior Light: Yes
-
Refrigerator - Interior Height: 18.0" (46 cm)
-
Refrigerator - Interior Width: 21.0" (53 cm)
-
Refrigerator - Interior Depth: 18.0" (46 cm)
-
Refrigerator - Capacity: 4.5 cu.ft
-
Refrigerator - Shelf Type: Glass
-
Refrigerator - Shelf Qty: 2
-
Refrigerator - Full Door Shelves: 3
-
Freezer - Interior Height: 5.25" (13 cm)
-
Freezer - Interior Width: 19.0" (48 cm)
-
Freezer - Interior Depth: 11.5" (29 cm)
-
Freezer - Capacity: 0.6 cu.ft
-
Thermostat Type: Dial
-
Fan Type: Exterior
-
Refrigerant Type: R600a
-
Refrigerant Amount: 0.92 oz.
-
High Side PSI: 180.0
-
Low Side PSI: 80.0
-
Level Legs: 4
-
Compressor Step Height: 5.5" (14 cm)
-
Compressor Step Width: 21.0" (53 cm)
-
Compressor Step Depth: 6.0" (15 cm)
Available Upgrades
Exterior
-
DL2B: Factory installed NIST calibrated digital data logger (DDL)
- CAS6 6" casters
- Alarm
-
TT: Installed thermometer
-
PH: Probe Hole
- Legs to raise unit height
- CAS3 3" casters
- SS Hinges
-
SCD: Self-closing door
-
ODA: Open door alarm
-
LHD: Left hand door swing
- Latch for door
- SSK
-
HG: Hospital grade cord
Lock
- L-Installed Lock
- KEYPAD
- AC Keypad
Interior
-
FCGP: Internal fan with gel packs
-
FC: Internal Fan
Handle
- TBC Copper Towel Bar Handle
- CP Full-Length Copper Pipe Handle
Door
-
STO: Step-To-Open Door Pedal
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
