Summit 24" Wide Refrigerator-Freezer ADA Compliant - CT661WSSHHADA

SUMMIT brings quality and value to counter height refrigeration with the industry’s largest selection of 32” high appliances. The CT661ADA Series features residential refrigerator-freezers made in Europe and designed for freestanding use in any ADA compliant setting.

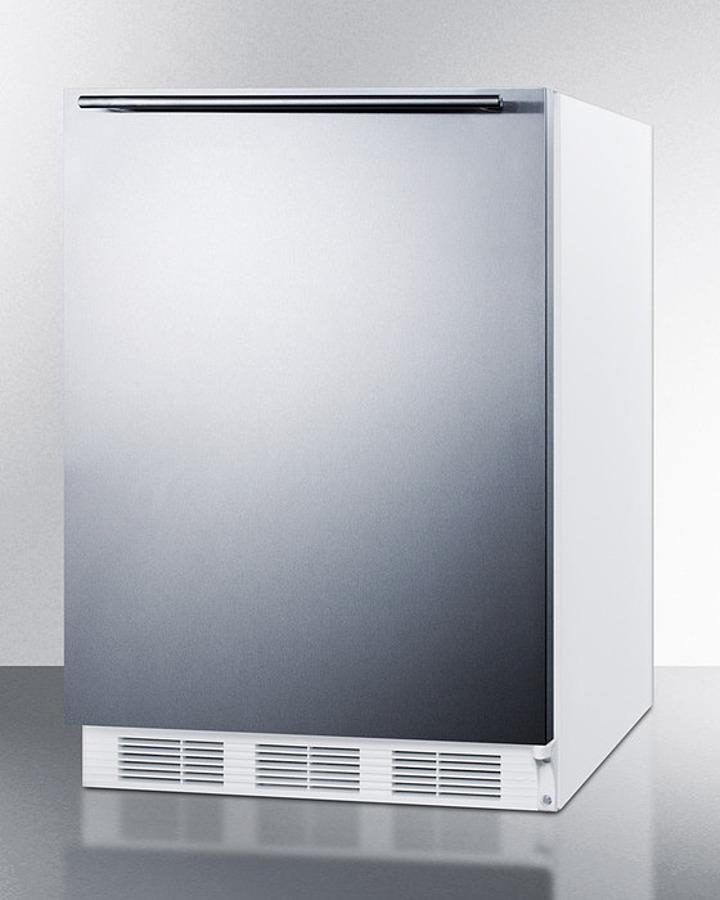

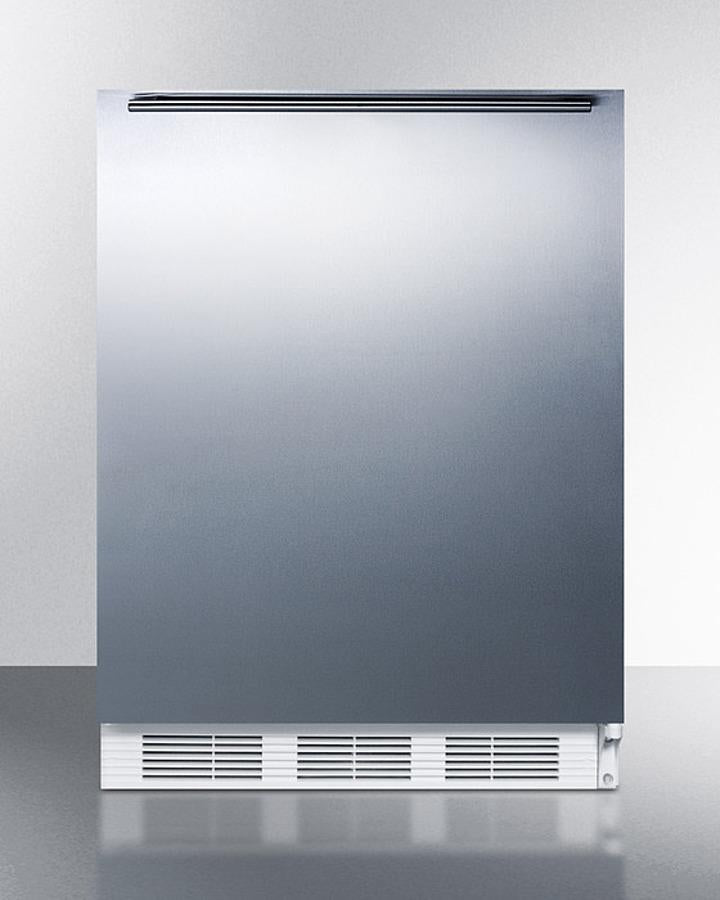

Sized with a 24” footprint, the CT661WSSHHADA refrigerator-freezer offer a generous 5.1 cu.ft. storage capacity, larger than many units in this size class. The 32” height allows use in settings complying with ADA guidelines for lower counter height. This unit is designed for freestanding use. It features a white cabinet with a user-reversible stainless steel wrapped door. A thin stainless steel handle is mounted horizontally for a sleek, modern look.

Inside, the CT661WSSHHADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food.

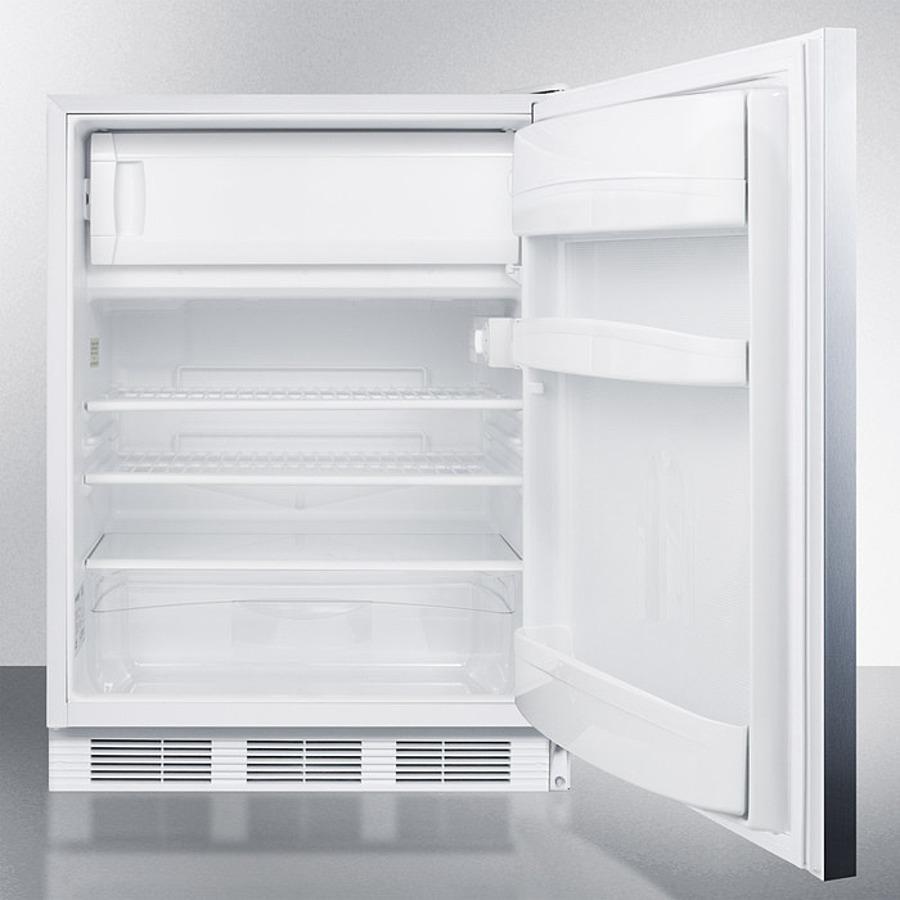

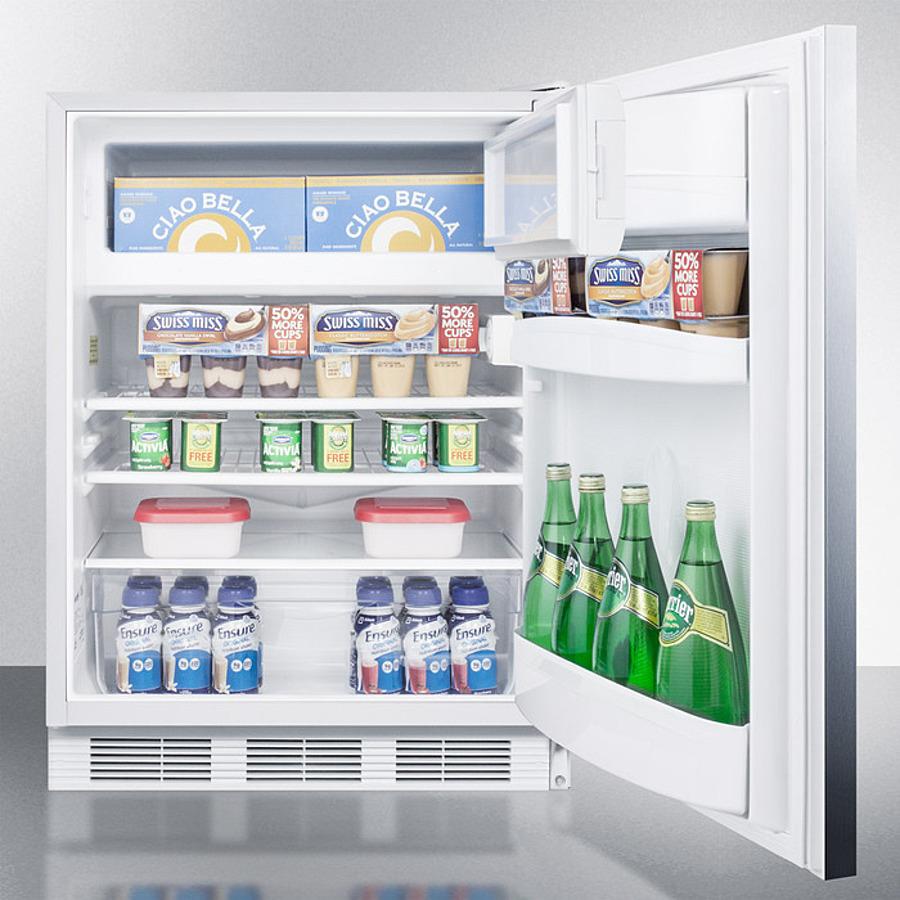

The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat.

With its ideal dimensions and user-friendly features, the CT661WSSHHADA offers quality cold storage for any setting in need of an ADA compliant freestanding refrigerator-freezer. For a built-in capable version of this model, see the CT661WBISSHHADA. For this same unit in a black finish, see the CT663BKSSHHADA.

Features

• ADA compliant: 32" height for use in settings complying with ADA guidelines for lower counter height
• Slim counter height dimensions: Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
• Stainless steel wrapped door: Durable 304 grade wrapping
• Professional horizontal handle: Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
• Dual evaporator: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
• Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
• Adjustable glass shelves: Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
• Door storage: Store tall bottles and condiments right on the door for convenient access
• Wine shelf: Removable scalloped wine shelf is included to store champagne and wine bottles
• Clear crisper drawer: Get the longest life and best taste out of produce by storing greens in a bottom crisper
• Interior light: Automatically illuminates when you open the door
• Adjustable thermostat: Dial thermostat located inside for easy temperature management
• Hidden evaporator: Cold wall design with hidden evaporator creates a seamless, easy to clean interior
• Fully finished white cabinet: Allows the unit to be used freestanding
• Reversible door: User-reversible door swing for added flexibility
• 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
• CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

• Height of Cabinet: 32.0" (81 cm)
• Height to Hinge Cap: 32.38" (82 cm)
• Width: 23.63" (60 cm)
• Depth: 23.0" (58 cm)
• Depth with door at 90°: 45.38" (115 cm)
• Capacity: 5.1 cu.ft. (144 L)
• Defrost Type: Cycle
• Door: Stainless Steel
• Cabinet: White
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Energy Usage/Year: 365.0kWh/year
• Amps: 1.2
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 100.0 lbs. (45 kg)
• Shipping Weight: 105.0 lbs. (48 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101068435

Refrigerator-Freezer

• Door Swing: RHD
• Reversible: Yes
• Adjustable Shelves: Yes
• Crisper Qty: 1
• Crisper Finish: Transparent
• Crisper Cover: Glass
• Wine Bottle Shelving: Yes
• Interior Light: Yes
• Refrigerator - Interior Height: 18.0" (46 cm)
• Refrigerator - Interior Width: 21.0" (53 cm)
• Refrigerator - Interior Depth: 18.0" (46 cm)
• Refrigerator - Capacity: 4.5 cu.ft
• Refrigerator - Shelf Type: Glass
• Refrigerator - Shelf Qty: 2
• Refrigerator - Full Door Shelves: 3
• Freezer - Interior Height: 5.25" (13 cm)
• Freezer - Interior Width: 19.0" (48 cm)
• Freezer - Interior Depth: 11.5" (29 cm)
• Freezer - Capacity: 0.6 cu.ft
• Thermostat Type: Dial
• Refrigerant Type: R600a
• Refrigerant Amount: 0.92 oz.
• High Side PSI: 180.0
• Low Side PSI: 80.0
• Compressor Step Height: 5.5" (14 cm)
• Compressor Step Width: 21.0" (53 cm)
• Compressor Step Depth: 6.0" (15 cm)

Available Upgrades

Lock

• AC Keypad
• L-Installed Lock
• KEYPAD

Exterior

• TT: Installed thermometer
• PH: Probe Hole
• CAS6 6" casters
• Alarm
• SS Hinges
• SCD: Self-closing door
• ODA: Open door alarm
• LHD: Left hand door swing
• Latch for door
• SSK
• HG: Hospital grade cord
• DL2B: Factory installed NIST calibrated digital data logger (DDL)

Interior

• FCGP: Internal fan with gel packs
• FC: Internal Fan

Door

• STO: Step-To-Open Door Pedal

Manufacturer Resources

• Brochure
• Use and Care
• Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
