Summit 24" Wide Refrigerator-Freezer ADA Compliant - CT663BKADA

SUMMIT brings quality and value to counter height refrigeration with the industry’s largest selection of 32” high appliances. The CT663BADA Series features residential refrigerator-freezers made in Europe and designed for freestanding use in any ADA compliant setting.

Sized with a 24” footprint, the CT663BKADA refrigerator-freezer offer a generous 5.1 cu.ft. storage capacity, larger than many units in this size class. The 32” height allows use in settings complying with ADA guidelines for lower counter height. This unit is designed for freestanding use. It comes in a black exterior finish. The reversible door includes a stainless steel handle.

Inside, the CT663BKADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food.

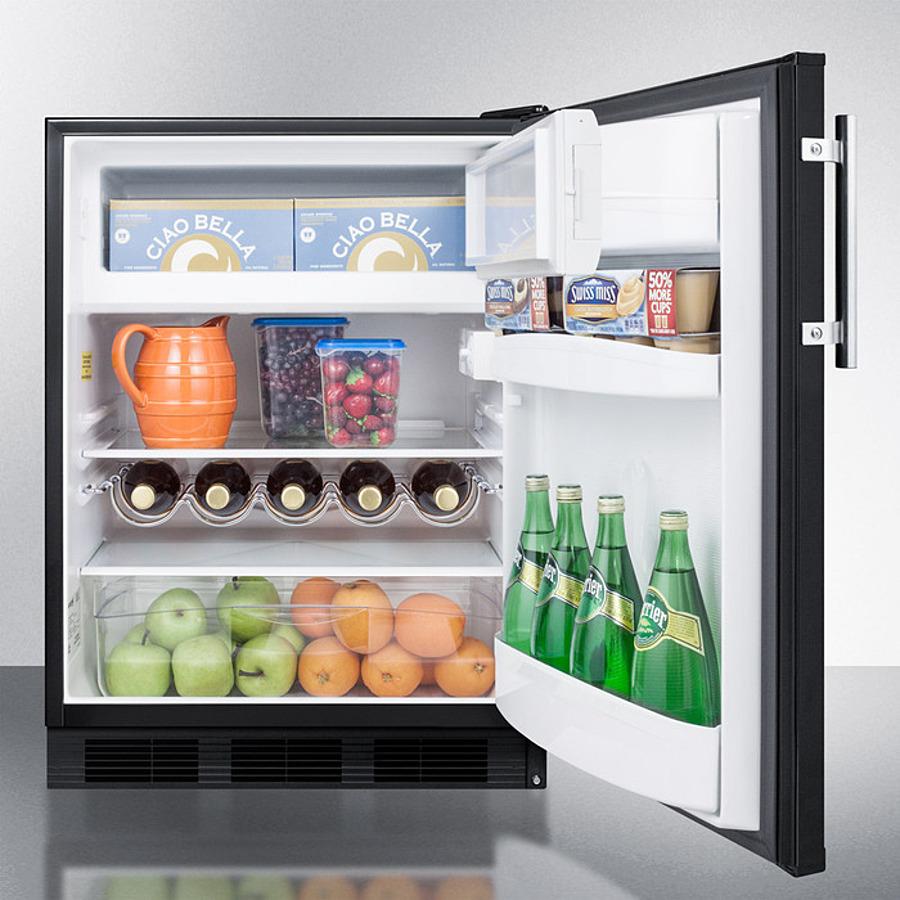

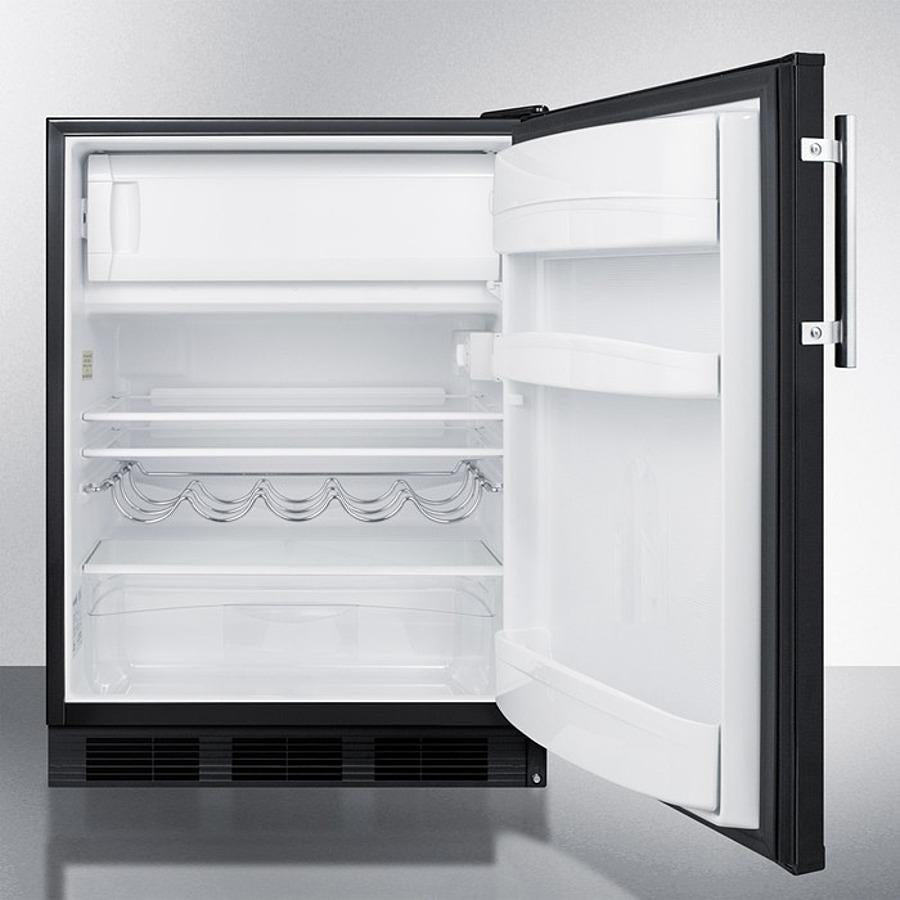

The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat.

With its ideal dimensions and user-friendly features, the CT663BKADA offers quality cold storage for any setting in need of an ADA compliant freestanding refrigerator-freezer. For a built-in capable version of this model, see the CT663BKBIADA.

Features

• ADA Compliant: 32" height for use in settings complying with ADA guidelines for lower counter height
• Slim counter height dimensions: Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
• Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
• Dual evaporator cooling: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
• Adjustable glass shelves: Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
• Door shelves: Store tall bottles and condiments right on the door for convenient access
• Wine shelf: Removable scalloped wine shelf is included to store champagne and wine bottles
• Crisper drawer: Get the longest life and best taste out of produce by storing greens in lower slide drawer
• Interior light: Automatically illuminates when the door is opened
• Hidden evaporator: Cold wall design with hidden evaporator creates a seamless, easy to clean interior
• Adjustable thermostat: Dial thermostat located inside for easy temperature management
• Pro style handle: Stainless steel handle adds an attractive touch
• Reversible door: User-reversible door swing for added flexibility
• CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
• Fully finished black cabinet: Allows the unit to be used freestanding
• 100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals

Specifications

Overview

• Height of Cabinet: 32.0" (81 cm)
• Height to Hinge Cap: 32.38" (82 cm)
• Width: 23.63" (60 cm)
• Depth: 23.5" (60 cm)
• Depth with door at 90°: 45.38" (115 cm)
• Capacity: 5.1 cu.ft. (144 L)
• Defrost Type: Cycle
• Door: Black
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Energy Usage/Year: 365.0kWh/year
• Amps: 1.2
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 100.0 lbs. (45 kg)
• Shipping Weight: 105.0 lbs. (48 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101068497

Refrigerator-Freezer

• Door Swing: RHD
• Reversible: Yes
• Adjustable Shelves: Yes
• Crisper Qty: 1
• Crisper Finish: Transparent
• Crisper Cover: Glass
• Wine Bottle Shelving: Yes
• Interior Light: Yes
• Refrigerator - Interior Height: 18.0" (46 cm)
• Refrigerator - Interior Width: 21.0" (53 cm)
• Refrigerator - Interior Depth: 18.0" (46 cm)
• Refrigerator - Capacity: 4.5 cu.ft
• Refrigerator - Shelf Type: Glass
• Refrigerator - Shelf Qty: 2
• Refrigerator - Full Door Shelves: 3
• Freezer - Interior Height: 5.25" (13 cm)
• Freezer - Interior Width: 19.0" (48 cm)
• Freezer - Interior Depth: 11.5" (29 cm)
• Freezer - Capacity: 0.6 cu.ft
• Thermostat Type: Dial
• Refrigerant Type: R600a
• Refrigerant Amount: 0.92 oz.
• High Side PSI: 180.0
• Low Side PSI: 80.0
• Compressor Step Height: 5.5" (14 cm)
• Compressor Step Width: 21.0" (53 cm)
• Compressor Step Depth: 6.0" (15 cm)

Available Upgrades

Exterior

• DL2B: Factory installed NIST calibrated digital data logger (DDL)
• TT: Installed thermometer
• PH: Probe Hole
• Alarm
• SS Hinges
• SCD: Self-closing door
• ODA: Open door alarm
• LHD: Left hand door swing
• Latch for door
• SSK
• HG: Hospital grade cord

Lock

• KEYPAD
• AC Keypad

Interior

• FCGP: Internal fan with gel packs
• FC: Internal Fan

Handle

• TBC Copper Towel Bar Handle
• CP Full-Length Copper Pipe Handle

Door

• STO: Step-To-Open Door Pedal

Manufacturer Resources

• Brochure w/ Drawings
• Technical Drawing (.dwg)
• Use and Care
• Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
