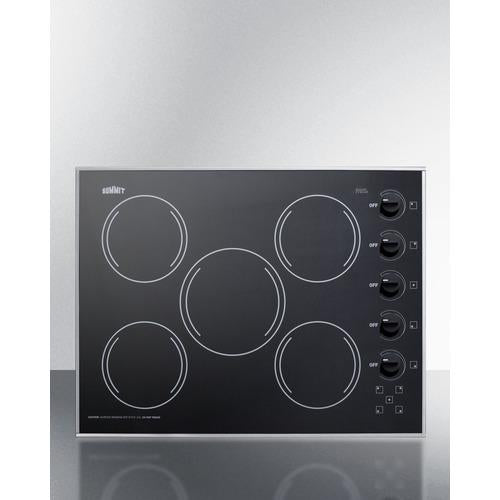

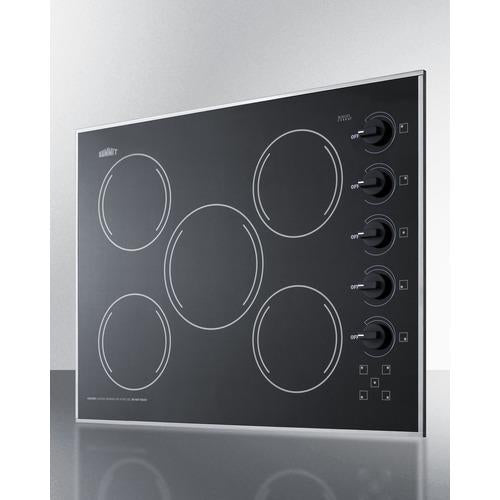

Summit 27" Wide 230V 5-Burner Radiant Cooktop - CR5B273B
SUMMIT introduces a new series of smooth-top electric cooktops sized for unique kitchen counter spaces, all made in the USA with the industry's best elements.
The CR5B273B is a 230V 6600W cooktop, with all burner elements made by E.G.O in Germany. This unit includes one large 8" 1800W element located in the center to accommodate large cooking vessels. Four standard 1200W 6 1/2" burners meet most heating needs. Push-to-turn knobs offer added safety, with an attractive matte black finish to complete the look. Each burner includes an indicator light.
The smooth surface is made from ceramic Schott glass in a jet black finish, offering easier cleanup than traditional coil elements. The unit is finished with a sleek trim in 304 grade stainless steel for added durability. Sized with an exterior width of 27" and a conveniently shallow 20 1/2" depth, the CR5B273B can fit in cutouts 25 1/4" W x 18 3/4" deep.
Designed and manufactured in the USA, the CR5B273B is the perfect way to finish any small kitchen space. For this unit in a white glass finish, see the CR5B274W.
Features
-
27" width: Designed to fit 25.25" W x 18.75" D cutouts
-
Schott Ceran surface: Smooth ceramic glass cooking surface in a sleek black finish
-
High output burner: Center burner features an 8" diameter for 1800W of cooking power, ideal for larger cooking vessels
-
Standard burners: Four 6.5" 1200W burners meet most heating needs
-
E.G.O. burners: Considered by many to be the industry's best cooking technology
-

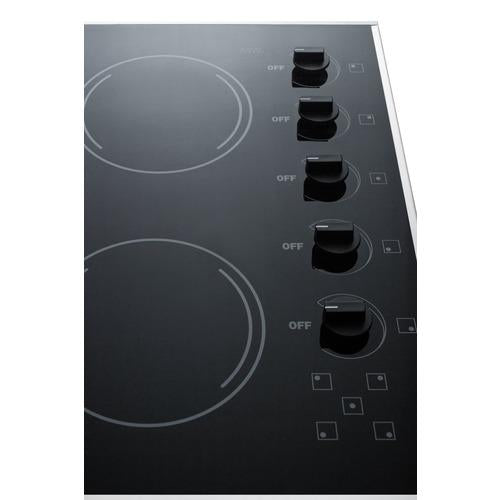

Push-to-turn knobs: Controls require a gentle push to help prevent cooking accidents
-
Indicator lights: Each burner includes an indicator light to show when the unit is on
-
Stainless steel trim: Stainless steel border adds an extra touch of style
-
230V operation: Requires professional hardwired installation to 230V power supply
Specifications
Overview
-
Height of Cabinet: 3.13" (8 cm)
-
Width: 27.0" (69 cm)
-
Depth: 20.5" (52 cm)
-
Cabinet: Black
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Amps: 25.0
-
Voltage/Frequency: 230 V AC/60 Hz
-
Weight: 35.0 lbs. (16 kg)
-
Shipping Weight: 43.0 lbs. (20 kg)
-
Parts & Labor Warranty: 1 Year
-
UPC: 761101060323
Electric Cooktop
-
Heating Type: Radiant
-
Surface: Glass
-
Element Type: Glasstop
-
Number of Elements: 5
-
Controls: Dial
-
Countertop Cutout Width: 25.25" (64 cm)
-
Countertop Cutout Depth: 18.75" (48 cm)
-
Element #1 Size: 8.0" (20 cm)
-
Element #1 Wattage: 1800.0
-
Element #2 Size: 6.5" (17 cm)
-
Element #2 Wattage: 1200.0
-
Element #3 Size: 6.5" (17 cm)
-
Element #3 Wattage: 1200.0
-
Element #4 Size: 6.5" (17 cm)
-
Element #4 Wattage: 1200.0
-
Element #5 Size: 6.5" (17 cm)
-
Element #5 Wattage: 1200.0
-
Power Cord Included: No
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
