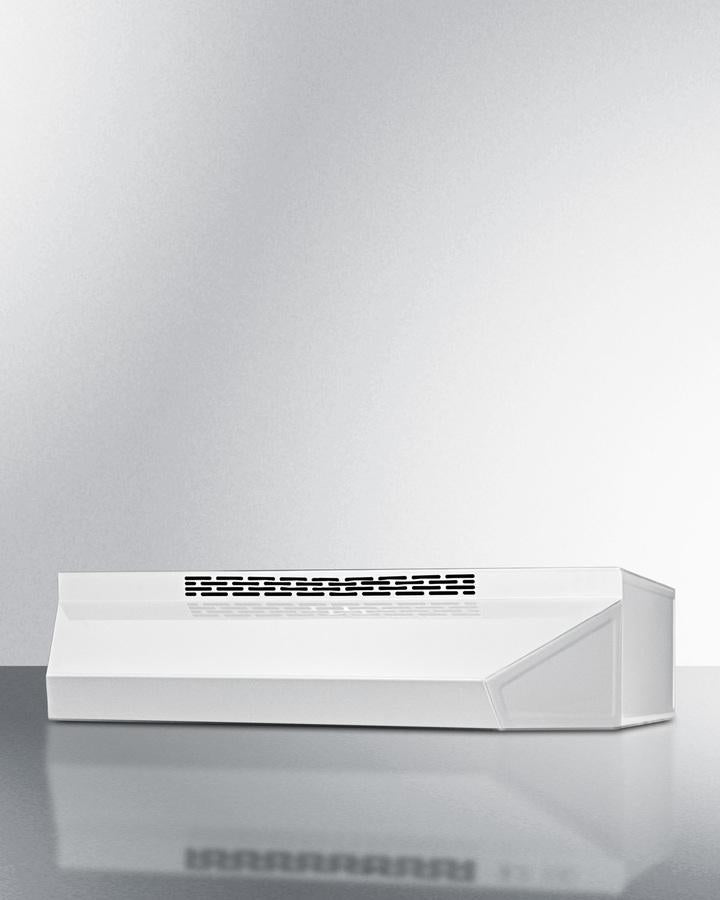

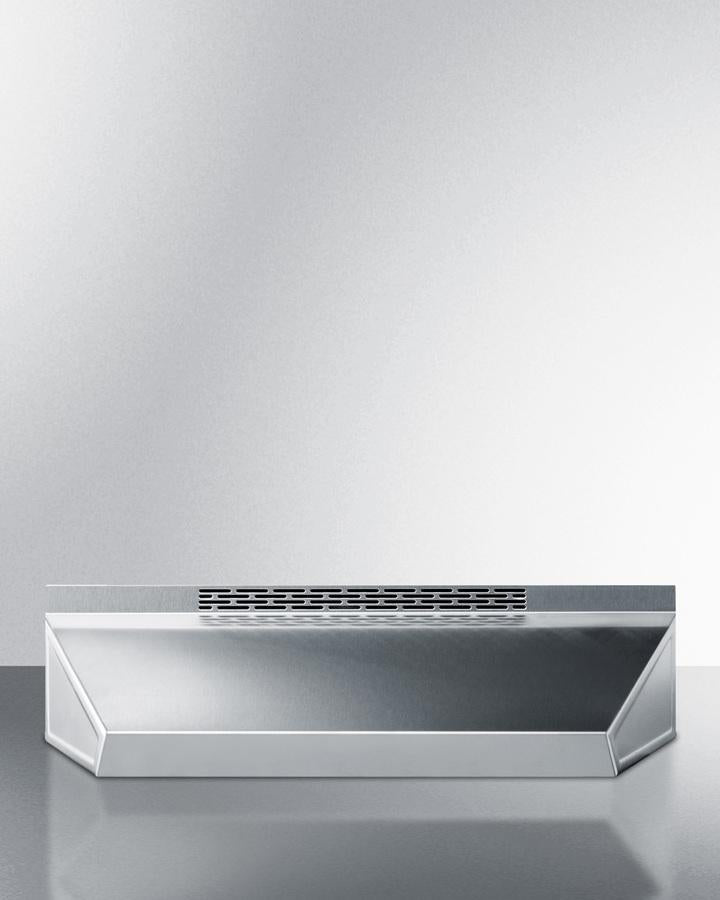

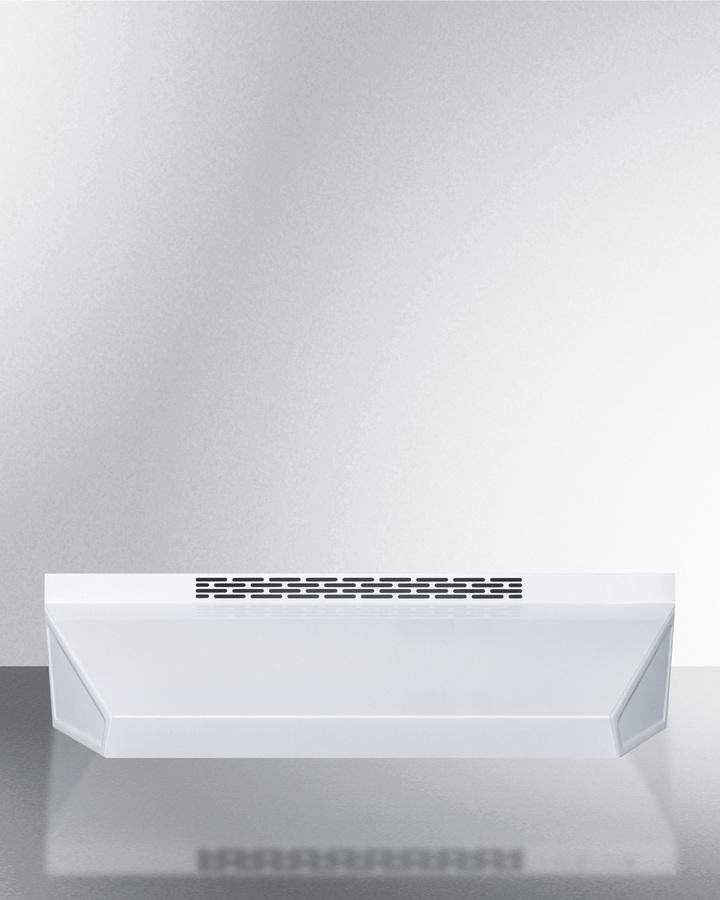

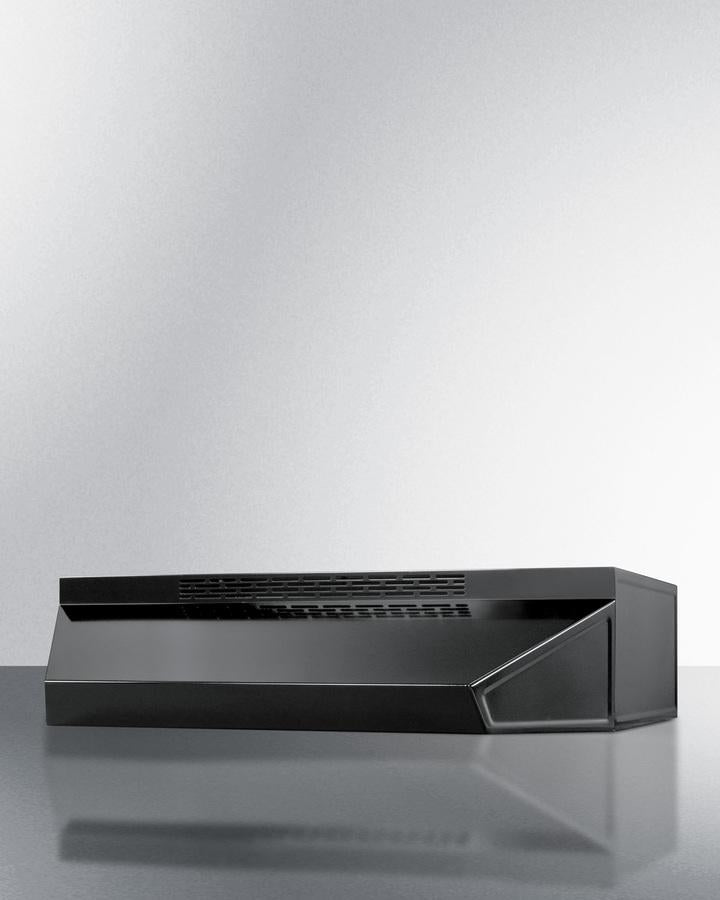

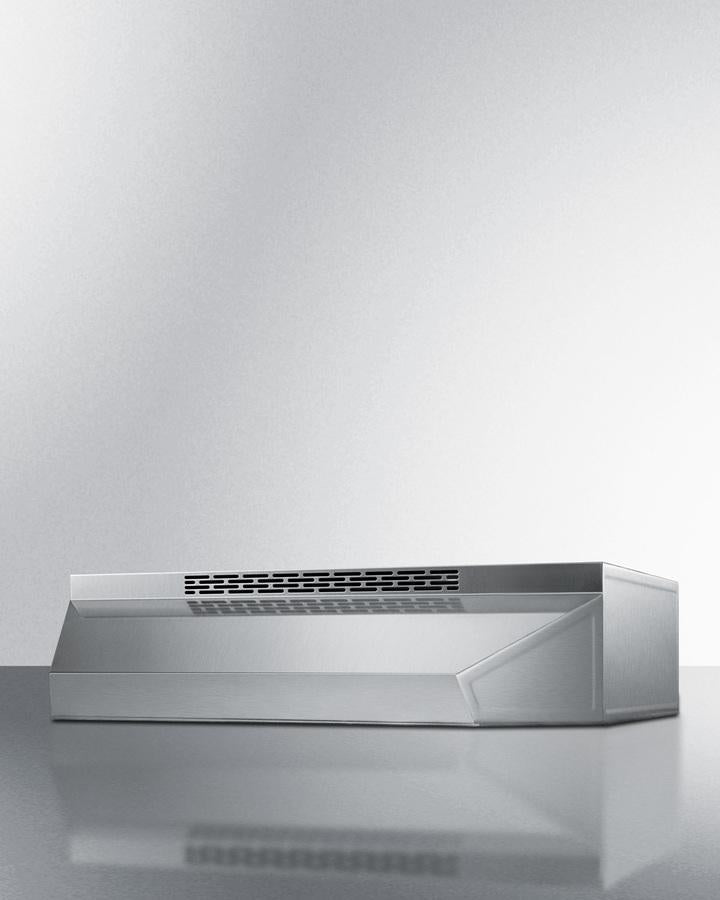

Summit 36" Under Cabinet Ductless Range Hood ADA Compliant - ADAH1736
Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.

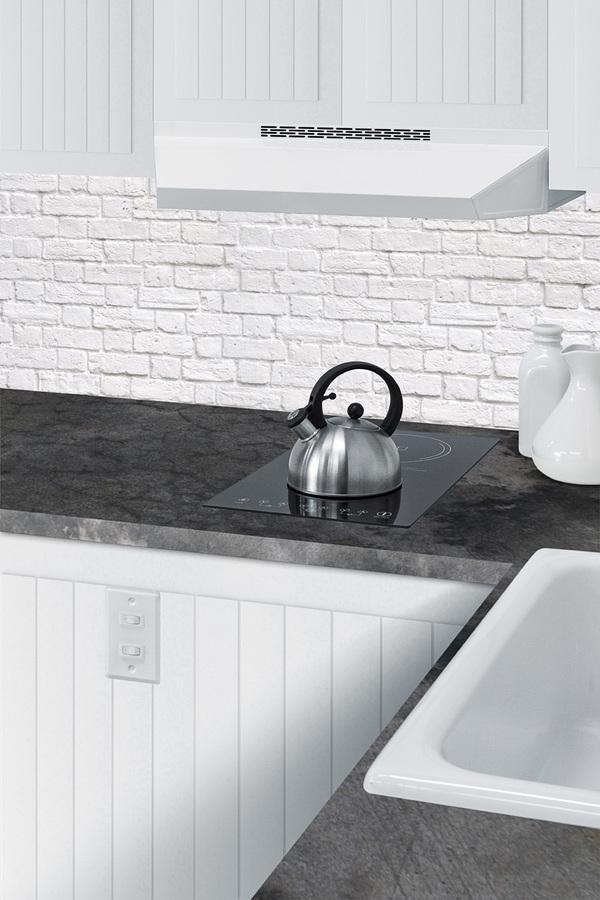

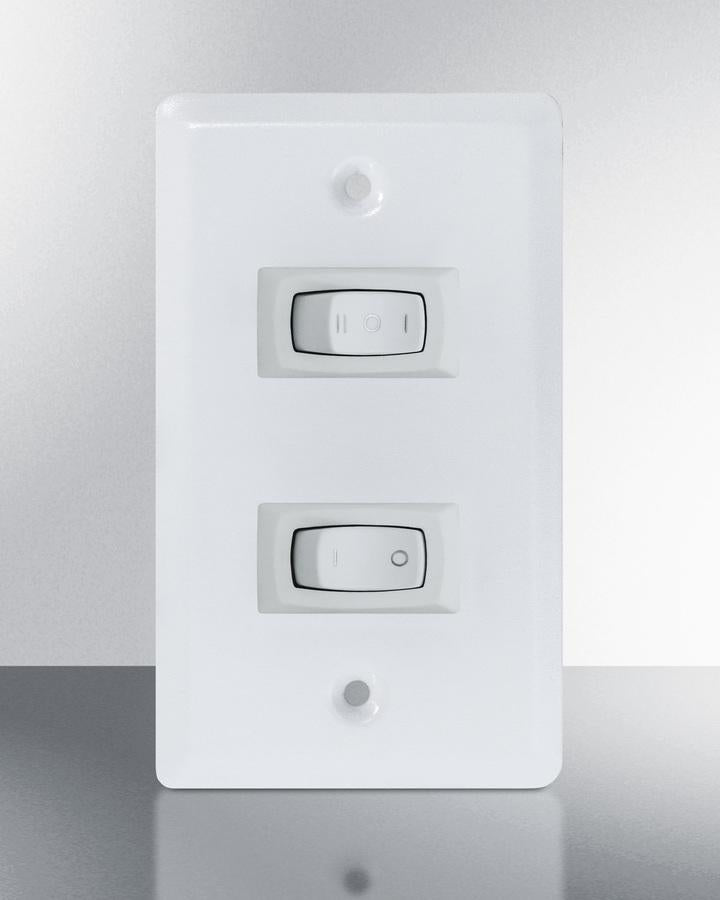

It is designed and manufactured in the USA. Sized at 36 inches wide, this ductless (recirculating) hood features steel construction. We include a remote terminal block and white wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines.
This range hood includes a 2-speed fan to meet light and heavy ventilation needs. The aluminum grease filter is dishwasher-safe for easy cleaning, with a charcoal liner included for improved absorption. It can accept a light (40W max; bulb not included).
In addition to this model, Summit also offers ducted low profile range hoods and European style choices, with sizes ranging from 18 inch to 36 inch wide. Browse our website to explore our complete selection.
Features
-
ADA compliant design: Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
-
36" width: Designed to fit over commonly sized ranges and cook-tops
-
Ductless range hood: Use for recirculating operation where no ducting to the outside is available
-

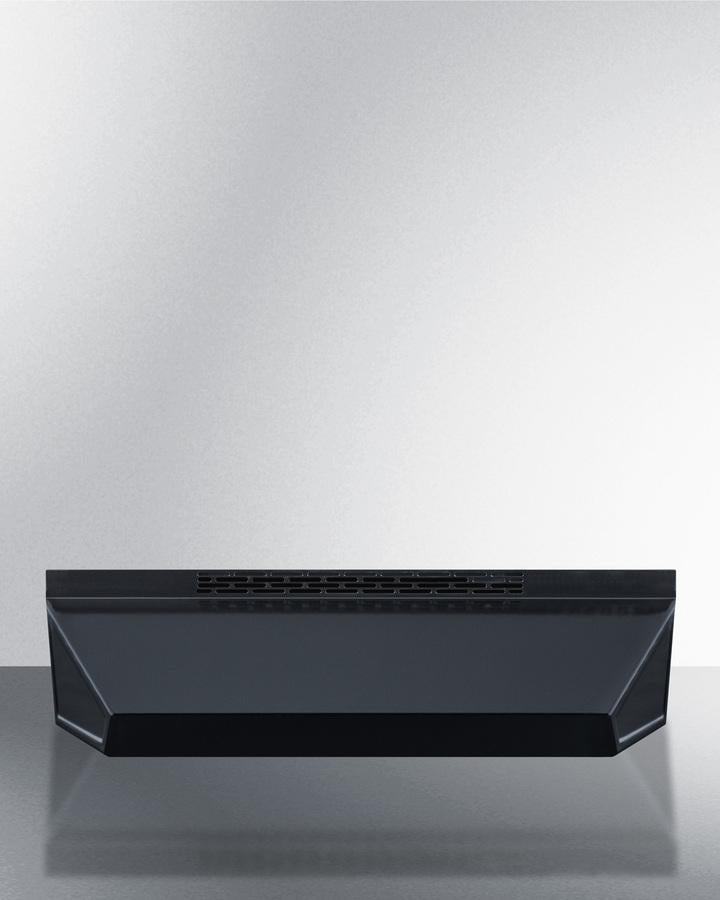

Finish: Black, Stainless steel and White range hoods available in this size and series
-
Two-speed fan: High and low setting gives you the right amount of power for most general cooking applications
-

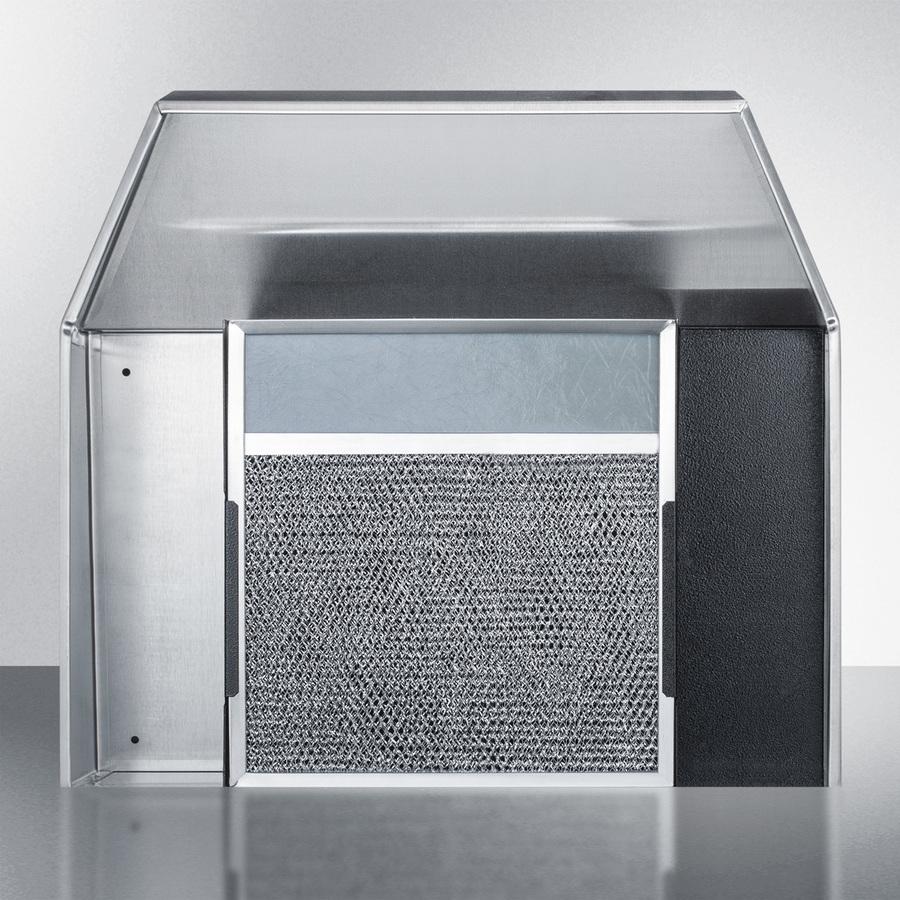

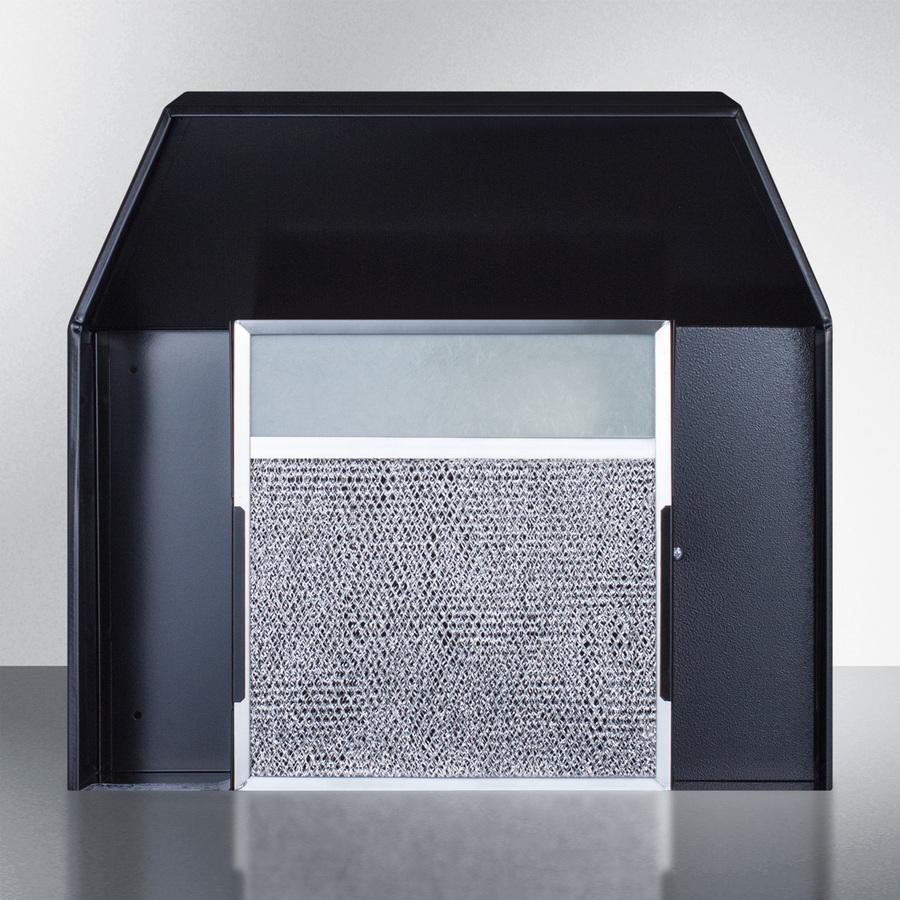

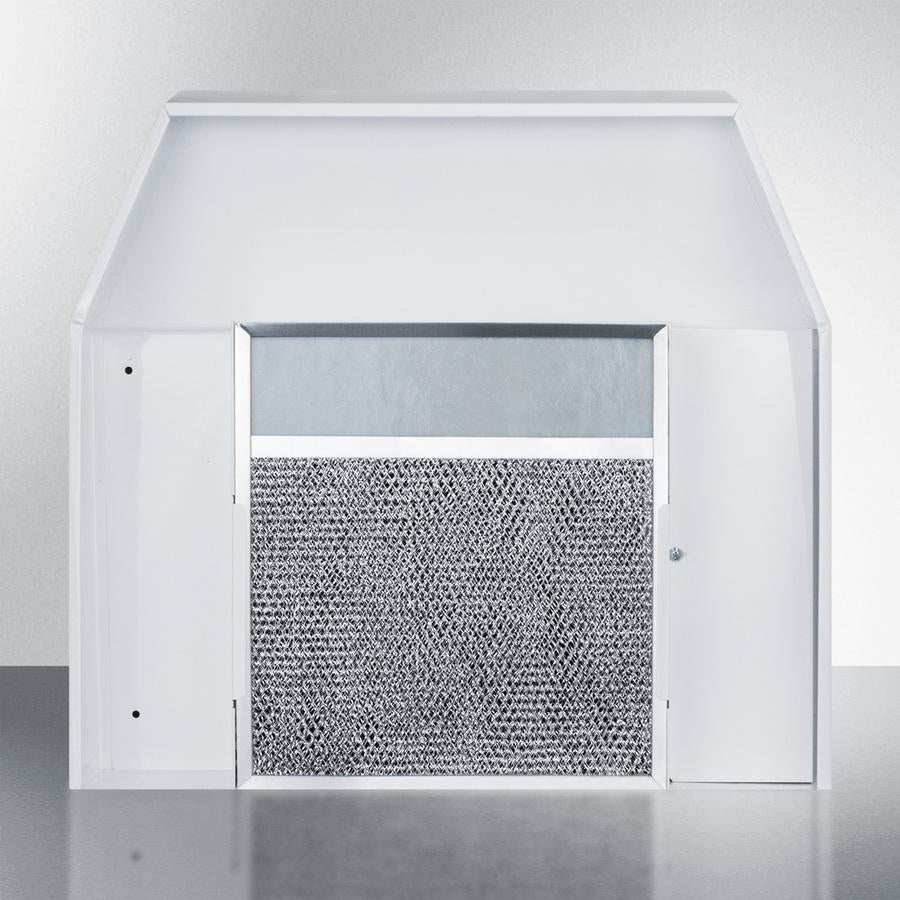

Dishwasher-safe aluminum filter: Removable mesh filter with solid construction and easy clean-ability
-
Charcoal liner: Filter includes a charcoal liner for better absorption of grease and odors
-
Switchable light option: Unit can accept a light bulb (max 40W) with the switch included on the remote terminal block. Bulb is not included.
-
Made in the USA: Solidly constructed for years of use
-
More sizes available: Also available in 18", 20", 24", and 30" wide sizes
-
Ducted choices available by special order: For a ducted version of this hood, see the ADAH16 series
Specifications
Overview
-
Height of Cabinet: 5.0" (13 cm)
-
Width: 36.0" (91 cm)
-
Depth: 18.0" (46 cm)
-
Cabinet: Available in Black, Stainless Steel and White
-
US Electrical Safety: UL
-
Weight: 14.0 lbs. (6 kg) OR 22.0 lbs. (10 kg) (White Only)
-
Shipping Weight: 15.0 lbs. (7 kg) OR 25.0 lbs. (11 kg) (White Only)
-
Parts & Labor Warranty: 1 Year
Range Hood
-
Installation: Under Cabinet
-
Venting: Recirculating
-
Number of Fan Speeds: 2
-
Maximum Air Movement: 160.0 CFM
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
