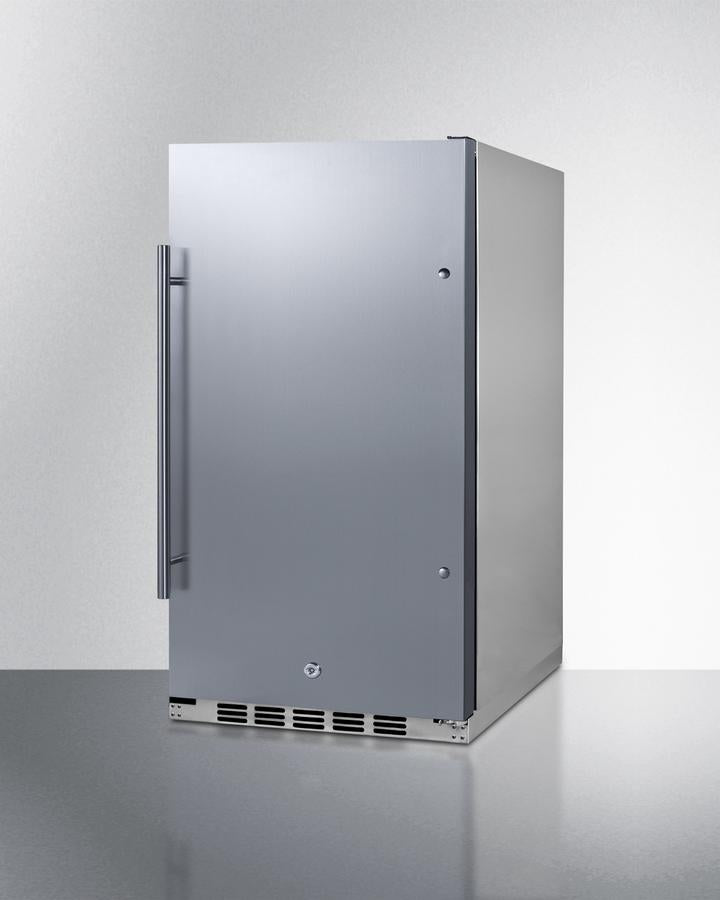

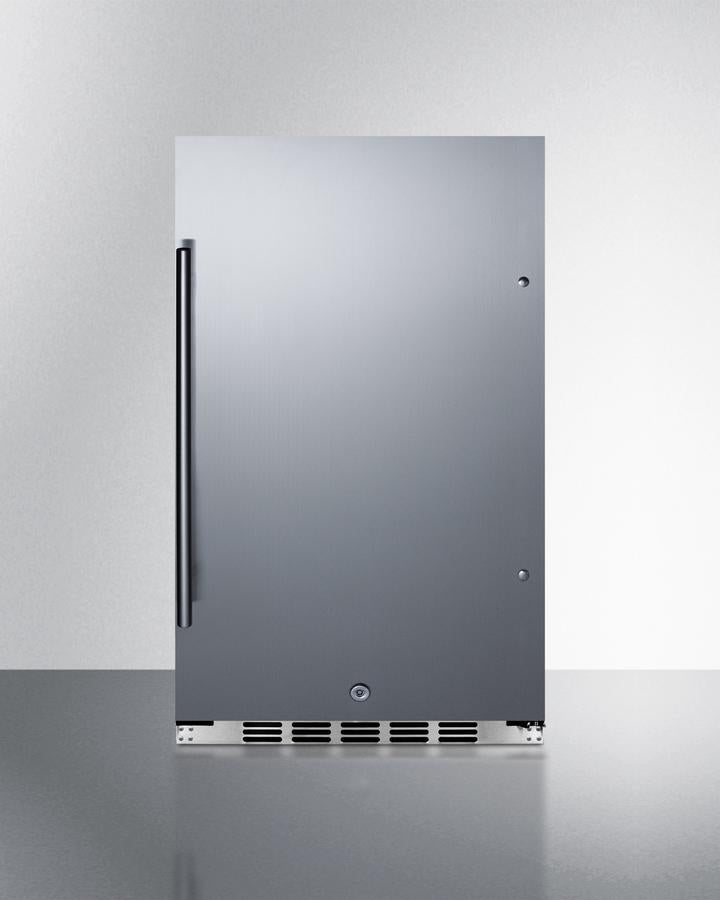

Summit Shallow Depth Built-In All-Refrigerator - FF195H34CSS
Summit's shallow depth series of built-in under-counter refrigeration includes ENERGY STAR certified choices for improved efficiency in modern style.
The FF195H34CSS features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at just 19 inches wide and 17.25 inches deep, it features a stainless steel cabinet with a sealed back for easy cleaning of the unit.
The height can be adjusted between 33 7/8 and 34 1/2 inches to best suit your space. The user-reversible stainless steel door adds elegance to any setting and the stainless steel pro-style handle completes the look. A factory-installed lock offers added security, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement.

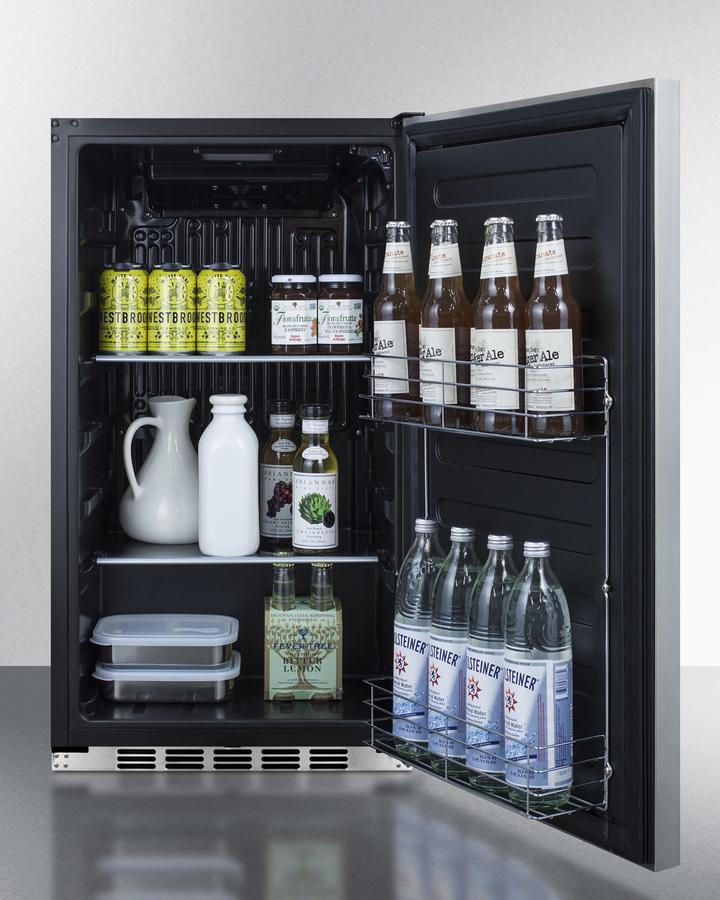

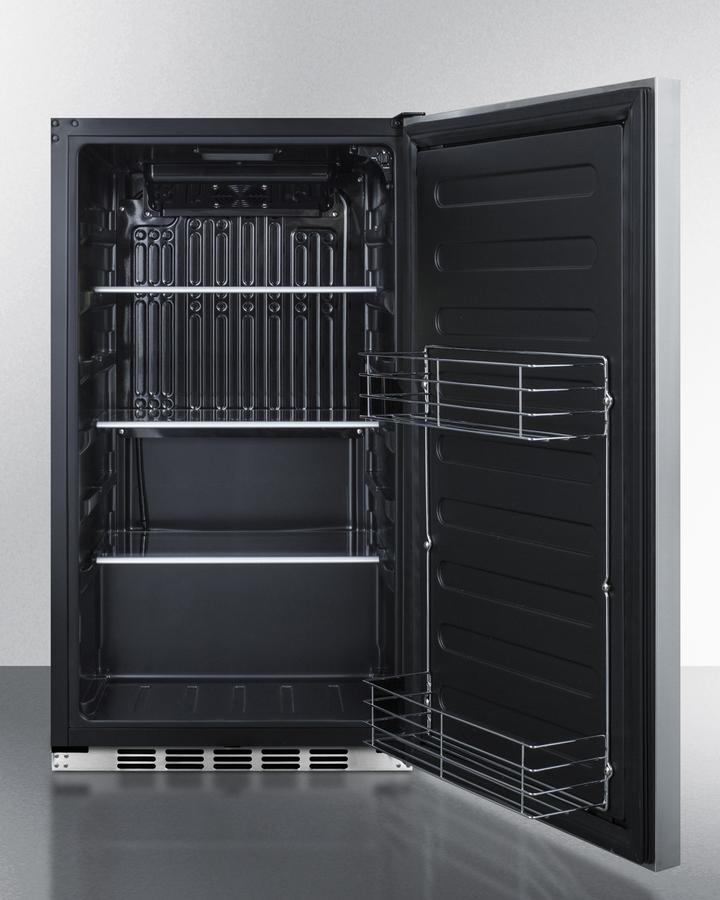

Inside, the FF195H34CSS utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves with six placement positions provide flexible storage capacity inside the 3.1 cu. ft. interior.
A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management.
The FF195H34CSS is ENERGY STAR certified and designed for built-in or freestanding use. For this unit with a jet black exterior, see the FF195H34.
Features
-
17.25" shallow depth: Ideal for home wet bars, island kitchens, and other applications with limited footprint space
-
ENERGY STAR certified: Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
-
Commercially approved: ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
-
Stainless steel door: Stainless steel door offers an elegant look
-
Automatic defrost: Reduced user maintenance with auto defrost system
-
Reversible door: User-reversible door swing makes it easy to adjust to your setting as needed
-
Factory installed lock: Keyed lock offers added security, with two keys included
-
Professional handle: Stainless steel handle adds an attractive touch
-
Adjustable shelves: Three glass shelves with brake system ensures safe, optimal storage
-
Door racks: Two chrome racks accommodate a variety of sizes for optimal interior storage
-
LED lighting: Automatically illuminates when the door is open for an attractive and energy efficient view
-
Black interior finish: Allows for easy cleaning and organization within the interior of the unit
-
Adjustable thermostat: Dial thermostat with seven temperature settings offers easy temperature management
-
Versatile construction: Versatile design allows for residential use
-
Sealed back: Space saving design for easier cleanability
-
Right-angle plug: Provides flexibility in unit placement without needing added depth
-
Fully finished stainless steel cabinet: Allows the unit to be used freestanding
-
Height adjustable: Four leveling legs allow you to adjust the height between 33 7/8" and 34 1/2" to best fit your under-counter space
-
100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals
-
CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
-
Height of Cabinet: 33.88" (86 cm)
-
Width: 19.0" (48 cm)
-
Depth: 17.25" (44 cm)
-
Depth with Handle: 19.0" (48 cm)
-
Depth with door at 90°: 35.0" (89 cm)
-
Capacity: 3.13 cu.ft. (89 L)
-
Defrost Type: Automatic
-
Door: Stainless Steel
-
Cabinet: Stainless Steel
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Sanitation: ETL-S
-
Energy Usage/Year: 259.0kWh/year
-
Amps: 1.3
-
Voltage/Frequency: 115 V AC/60 Hz
-
Weight: 75.0 lbs. (34 kg)
-
Shipping Weight: 80.0 lbs. (36 kg)
-
Parts & Labor Warranty: 1 Year
-
Compressor Warranty: 5 Years
-
UPC: 761101075679
Refrigerator Features
-
Door Swing: RHD
-
Reversible: Yes
-
Shelf Type: Glass
-
Shelf Qty: 3
-
Adjustable Shelves: Yes
-
Thermostat Type: Dial
-
Fan Type: Interior
-
Refrigerant Type: R600a
-
Refrigerant Amount: 0.88oz.
-
High Side PSI: 320.0
-
Low Side PSI: 120.0
-
Level Legs Qty: 2
-
Interior Light: Yes
-
Temperature Range: 34 to 50ºF
-
Sound Level: 33.4 dB
Dimensions
-
Interior Height: 29.0" (74 cm)
-
Interior Width: 16.0" (41 cm)
-
Interior Depth: 12.75" (32 cm)
-
Compressor Step Height: 7.0" (18 cm)
-
Compressor Step Width: 16.0" (41 cm)
-
Compressor Step Depth: 6.25" (16 cm)
Available Upgrades
Exterior
- Extra key
-
LHD: Left hand door swing
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
