Summit Shallow Depth Built-In All-Refrigerator - FF195IF
Summit's shallow depth series of built-in under-counter refrigeration includes ENERGY STAR certified choices for improved efficiency in modern style.
The FF195IF features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at just 19 inches wide and 18 inches deep, it comes in a jet black cabinet with a sealed back for easy cleaning of the unit. The height can be adjusted between 33 7/8 and 34 1/2 inches to best suit your space.

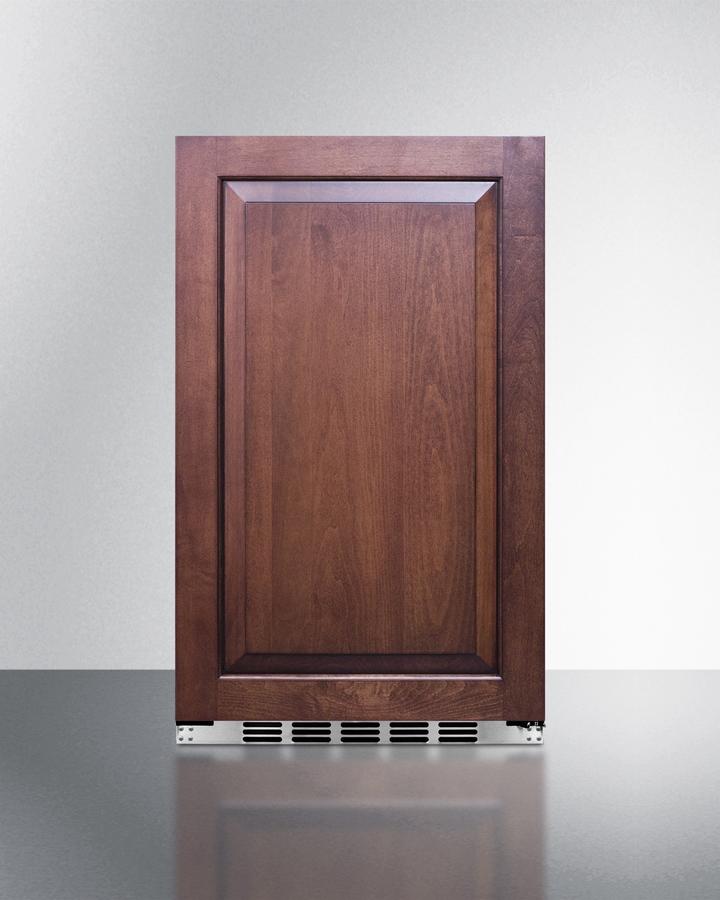

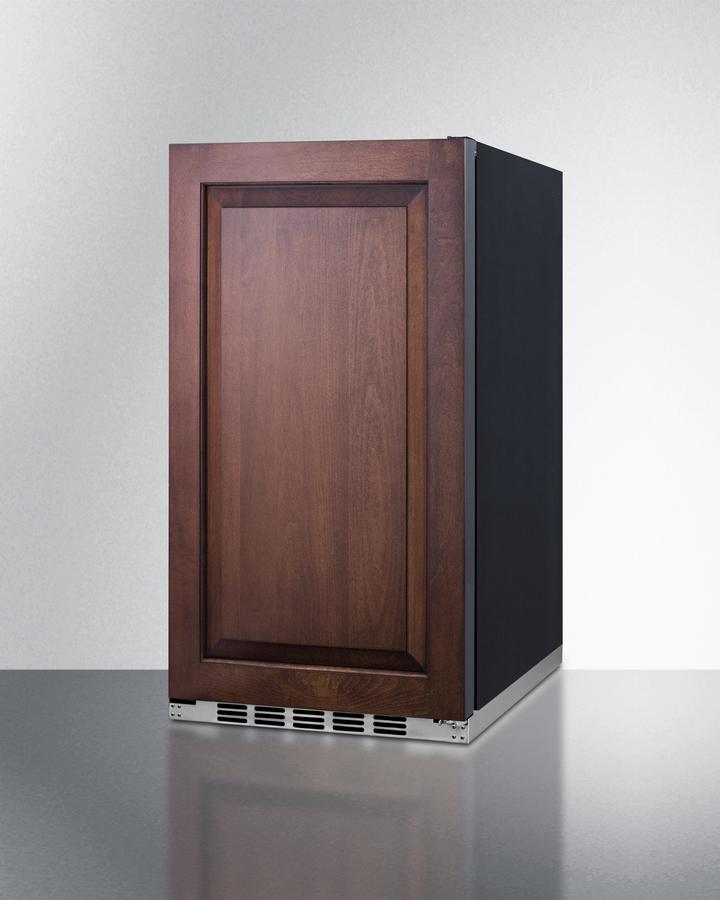

The stainless steel door features an integrated stainless steel frame designed to accept panels, allowing you to create a custom look under the counter (panel size: 31 9/16 inch H x 18 7/8 inch W at 3/4 inch thick). Customers provide their own handle to best match their setting. The space-saving right-angle plug and integrated hinge provide added flexibility in unit placement.

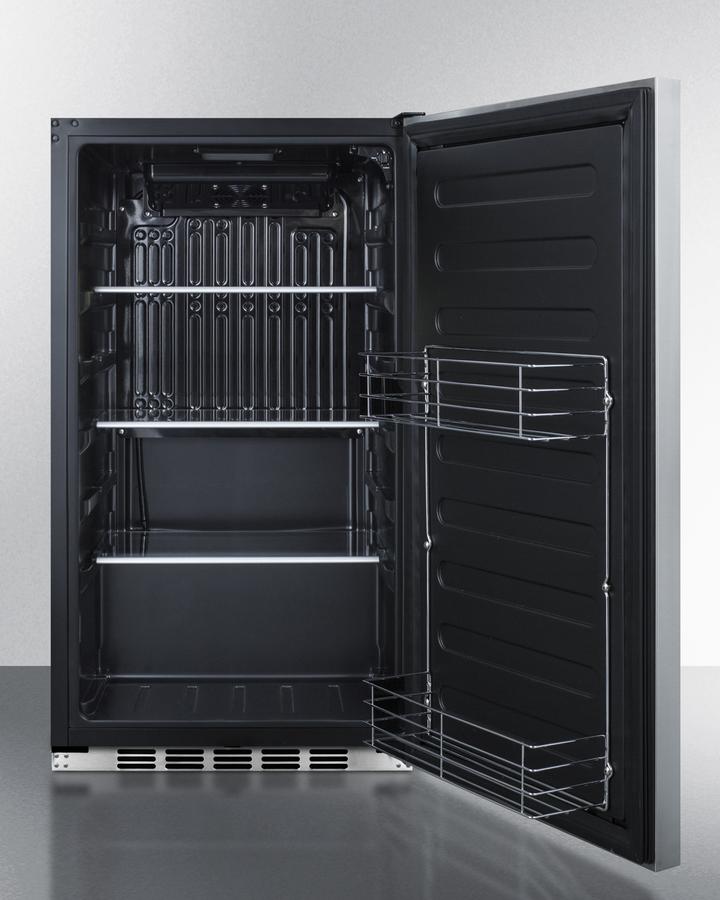

Inside, the FF195IF utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves provide flexible storage capacity inside the 3.1 cu. ft. interior.

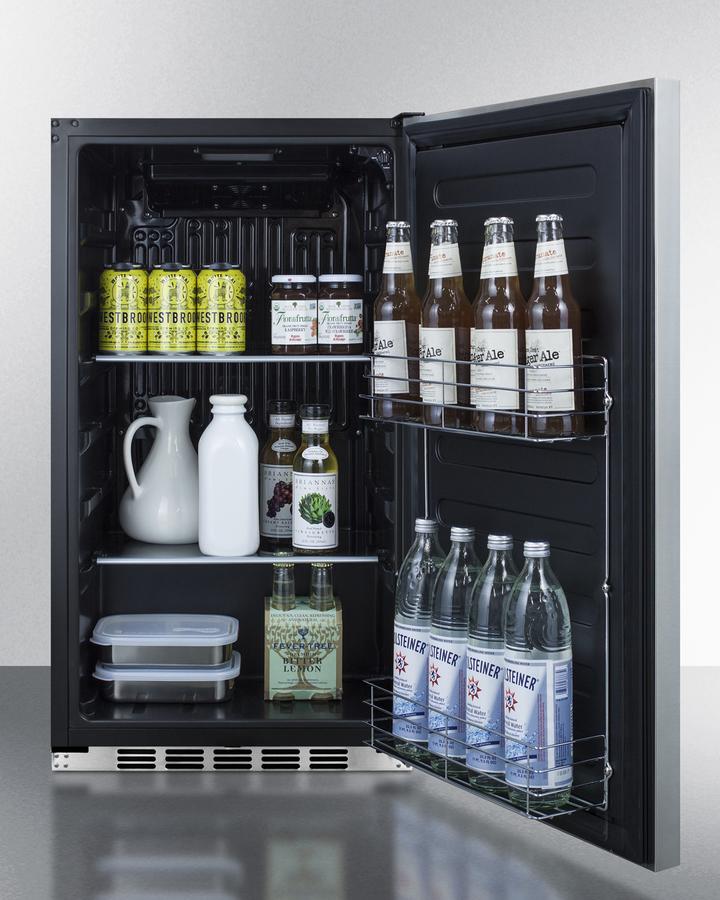

A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management.
The FF195IF is ENERGY STAR certified and designed for built-in or freestanding use. For a similar glass door unit commercially approved for outdoor use, see the SPR489OSPNR.
Features
-
18" shallow depth: Ideal for home wet bars, island kitchens, and other applications with limited footprint space
-
ENERGY STAR certified: Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
-
Commercially approved: ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
-
Panel-ready door: Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 18 7/8" W x 31 9/16" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
-
Built-in capable: Make the best use of space by installing your refrigerator under the counter
-
Automatic defrost: Reduced user maintenance with auto defrost system
-
Adjustable shelves: Three glass shelves with brake system ensures safe, optimal storage
-
Door racks: Two chrome racks accommodate a variety of sizes for optimal interior storage
-
LED lighting: Automatically illuminates when the door is open for an attractive and energy efficient view
-
Black interior finish: Allows for easy cleaning and organization within the interior of the unit
-
Adjustable thermostat: Dial thermostat with seven temperature settings offers easy temperature management
-
Versatile construction: Meets both residential and commercial standards
-
Sealed back: Space saving design for easier cleanability
-
Right-angle plug: Provides flexibility in unit placement without needing added depth
-
Factory installed lock: Door includes a lock and key for optional security. If planning to use the lock, be sure to include a 5/8" hole in the lower center of your custom panel
-
Height adjustable: Four leveling legs allow you to adjust the height between 33 7/8" and 34 1/2" to best fit your under-counter space
-
Fully finished black cabinet: Allows the unit to be used freestanding
-
100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals
-
CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
-
Height of Cabinet: 33.88" (86 cm)
-
Width: 19.0" (48 cm)
-
Depth: 18.0" (46 cm)
-
Depth with door at 90°: 35.0" (89 cm)
-
Capacity: 3.13 cu.ft. (89 L)
-
Defrost Type: Automatic
-
Door: Panel-Ready
-
Cabinet: Black
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Sanitation: ETL-S
-
Energy Usage/Year: 259.0kWh/year
-
Amps: 1.3
-
Voltage/Frequency: 115 V AC/60 Hz
-
Weight: 70.0 lbs. (32 kg)
-
Shipping Weight: 75.0 lbs. (34 kg)
-
Parts & Labor Warranty: 1 Year
-
Compressor Warranty: 5 Years
-
UPC: 761101074931
Refrigerator Features
-
Door Swing: RHD
-
Reversible: Factory Reversible
-
Height Adjustable: Yes
-
Shelf Type: Glass
-
Shelf Qty: 3
-
Adjustable Shelves: Yes
-
Thermostat Type: Dial
-
Fan Type: Interior
-
Refrigerant Type: R600a
-
Refrigerant Amount: 0.88oz.
-
High Side PSI: 320.0
-
Low Side PSI: 120.0
-
Level Legs Qty: 2
-
Interior Light: Yes
-
Temperature Range: 34 to 50ºF
-
Sound Level: 33.4 dB
Dimensions
-
Interior Height: 29.0" (74 cm)
-
Interior Width: 16.0" (41 cm)
-
Interior Depth: 12.75" (32 cm)
-
Compressor Step Height: 7.0" (18 cm)
-
Compressor Step Width: 16.0" (41 cm)
-
Compressor Step Depth: 6.25" (16 cm)
Available Upgrades
Exterior
-
LHD: Left hand door swing
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
